Main photo
Isuzu Garbage Compactor Truck

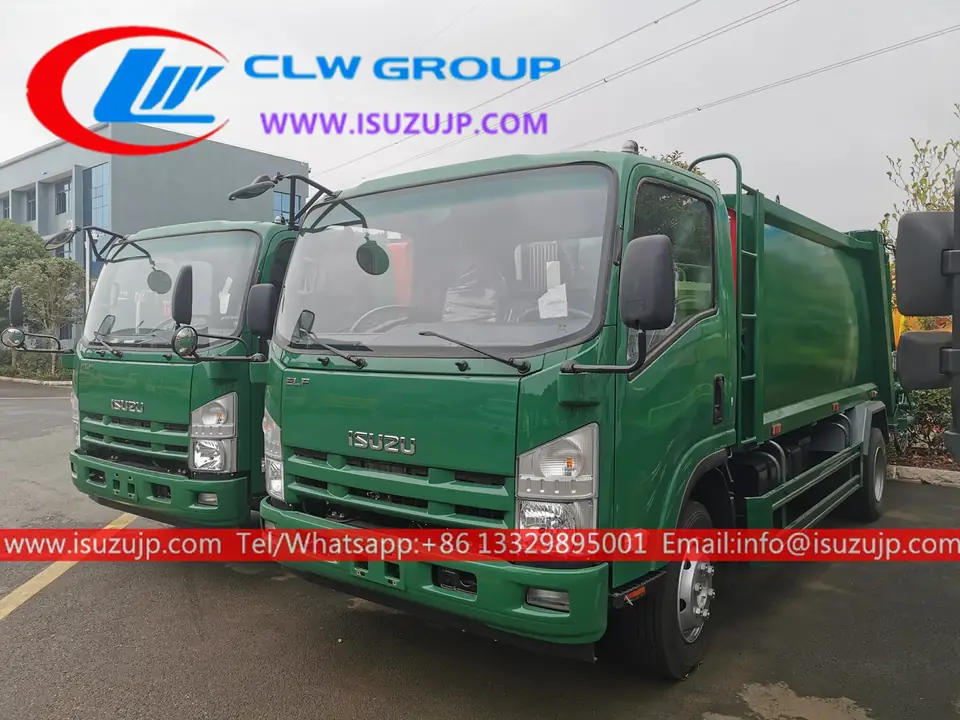

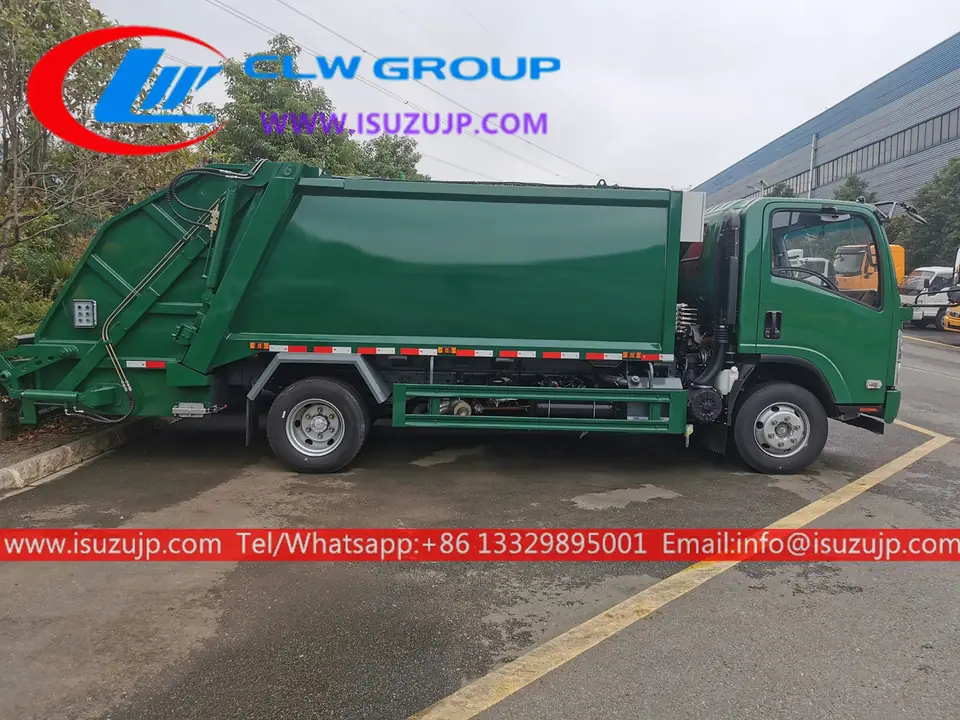

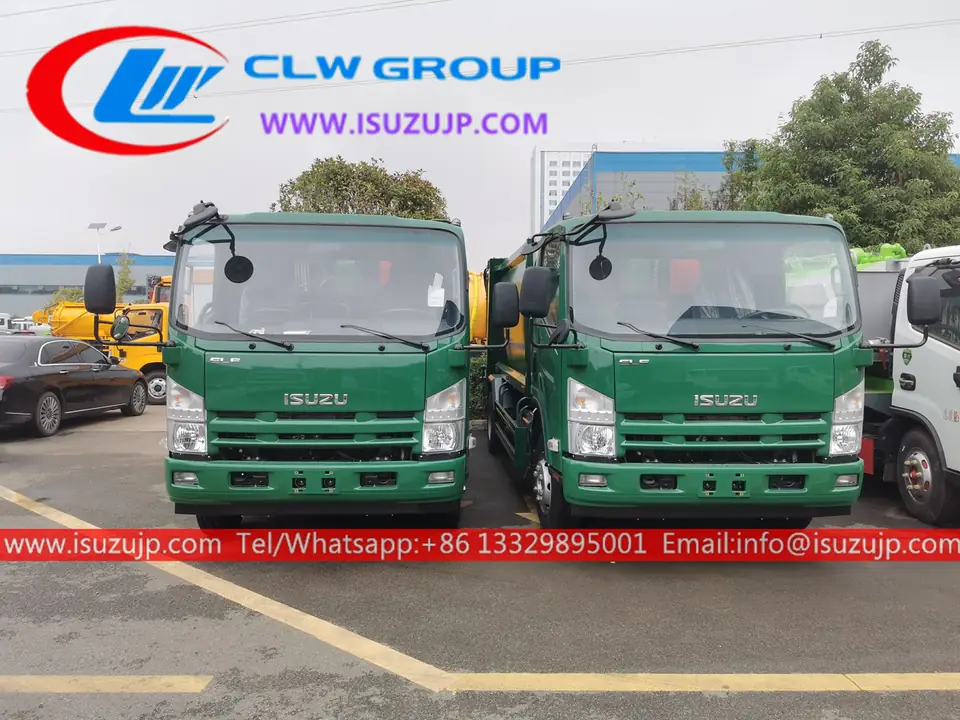

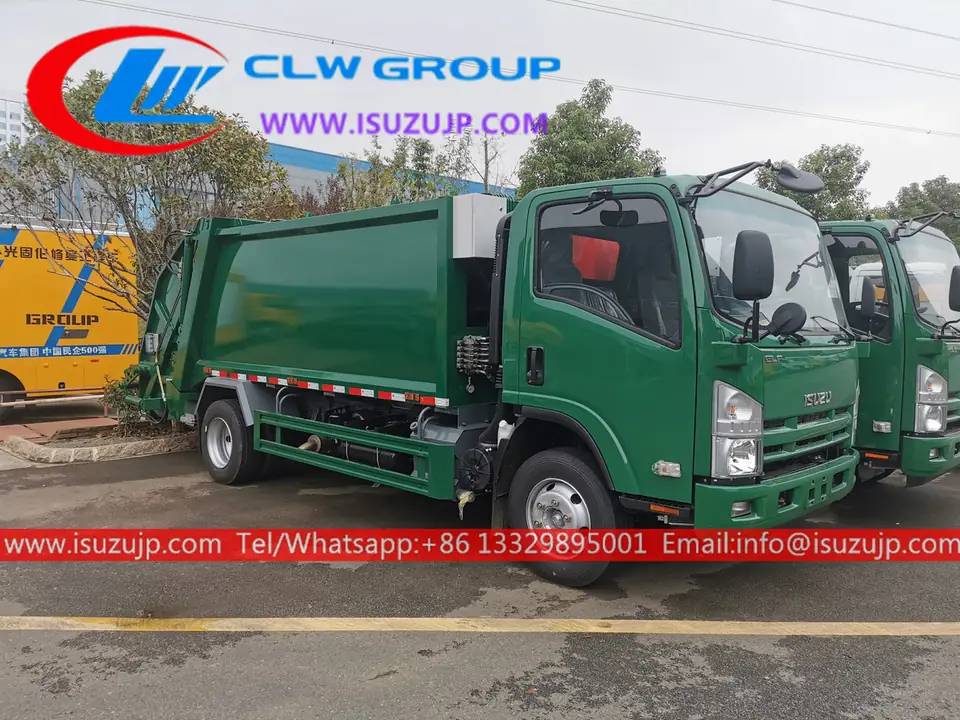

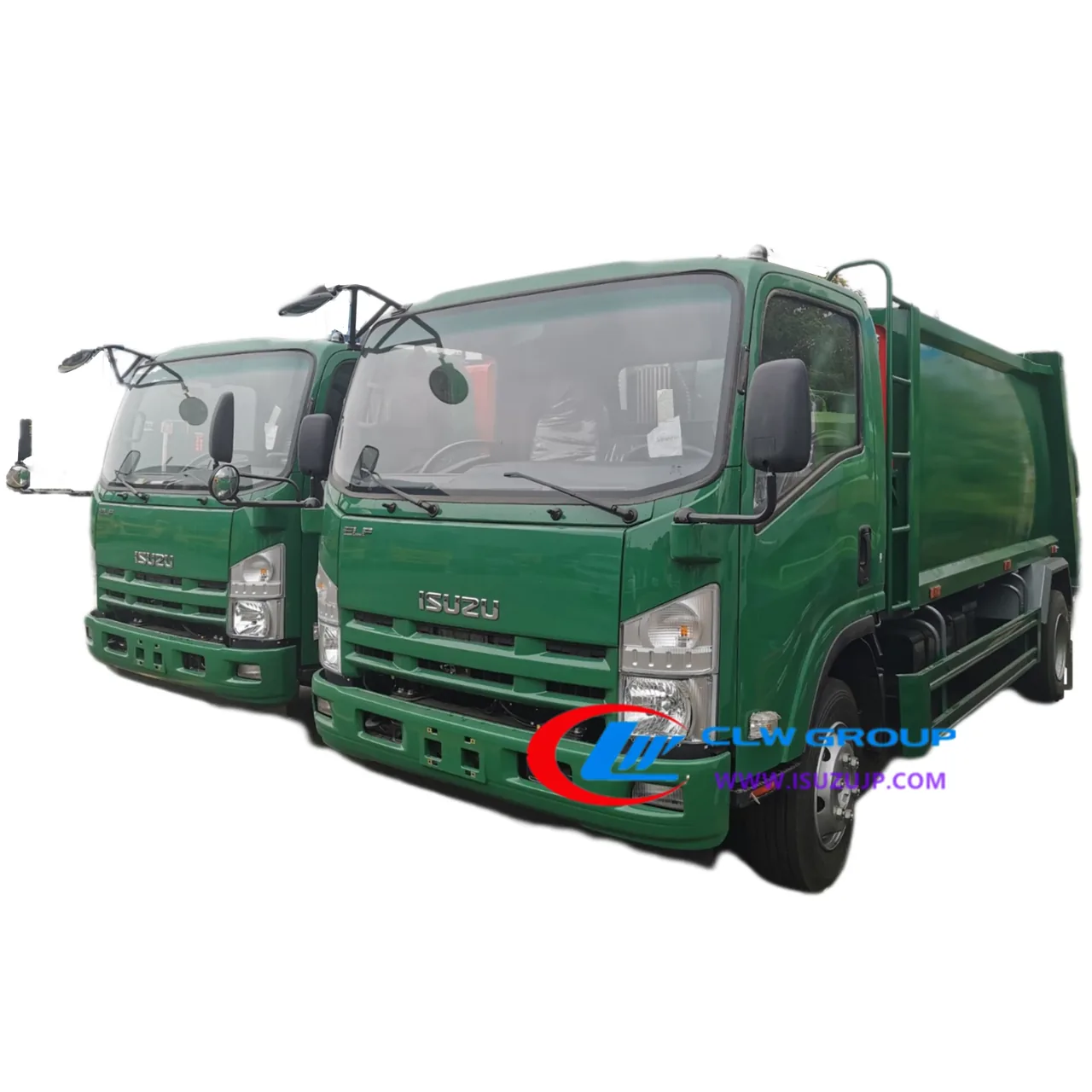

Two Units ISUZU 8 Cube Rear Load Refuse Truck Shipping to Oman
4×2 ISUZU NQR chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 6 ton loading capacity
- Emission
- Euro 5
- Engine Capacity
- 5.193
- Tank Material
- carbon steel
- Long Source Large Flow 32-80 Pump, Optional Double Pump and Double Valve
- Body material High strength T420 special steel plate
Specification below is the factory table for this model, reproduced without edits. 38 rows.
Two Units Isuzu 8 Cube Rear Load Refuse Truck Description
- Isuzu 8cube rear load refuse trucks also called Truck mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharfs, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage
- ISUZU 4K-ENGINE Light chassis, perfect performance
- ISUZU engine is super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic Meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification
Two Units ISUZU 8 Cube Rear Load Refuse Truck Shipping to Oman Specification
| item | value Two units Isuzu 8 cube rear load refuse truck shipping to Oman |
|---|---|
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Construction works, Energy & Mining |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty of core components | 1 Year |
| introduction | 1: Can choose bin lifting and turnover mechanism, can also choose ground hopper and other kinds of loading mechanism. 2: With manual and automatic two sets of control methods, the operator can control the cabin, in the middle side or the back of the truck is very convenient and efficient. 3: With the working device of the emergency braking stop button. 4: Garbage body use frame design, elegant, strong structure, large effective capacity. 5: Equipped with a special collection box, sewage is directly into the sewage tank in the process of compression, which effectively prevents the second pollution caused by sewage leaks. 6: Through hydraulic system design, the truck achieves the function of two-way garbage compression, which improves the compressibility. 7: All other standard accessories: Tool kit, English manual… |
| Condition | New |
| Drive Wheel | 4X2 |
| Type | Compactor |
| Transmission Type | Manual |
| Emission Standard | Euro V |
| Fuel Type | Diesel |
| Engine Capacity | 5.193 |
| Size | 7400×2300×2800 |
| Gross Vehicle Weight | 11000 |
| Place of Origin | China |
| Brand Name | CLW brand |
| Warranty | 1 Year |
| Weight (KG) | 5800kg |
| Tank Material | carbon steel |
| Chassis | ISUZU |
| Emission standard | Euro 5 |
| Wheelbase | 3800mm |
| ENGINE | 4HK1-TCG51 (190HP) |
| gearbox | Isuzu brand |
| tire | 235/75R17.5 |
| compactor | 6m3 |
| A/C | have |
| ABS | have |
Working Parameter
Two Units ISUZU 8 Cube Rear Load Refuse Truck Shipping to Oman Specification
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material High strength T420 special steel plate |
|---|---|---|
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The Two Units ISUZU 8 Cube Rear Load Refuse Truck Shipping to Oman
What chassis is the Two Units ISUZU 8 Cube Rear Load Refuse Truck Shipping to Oman built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
The factory table lists Engine Capacity 5.193. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
