Main photo
ISUZU Fire Truck

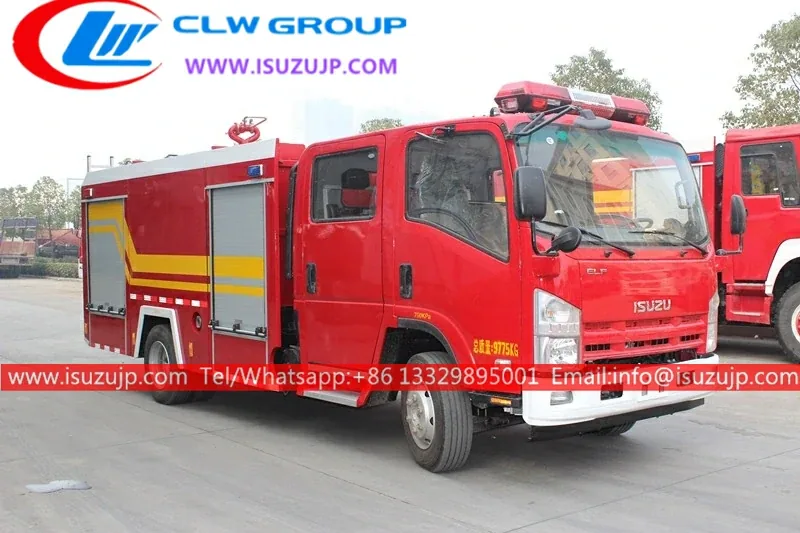

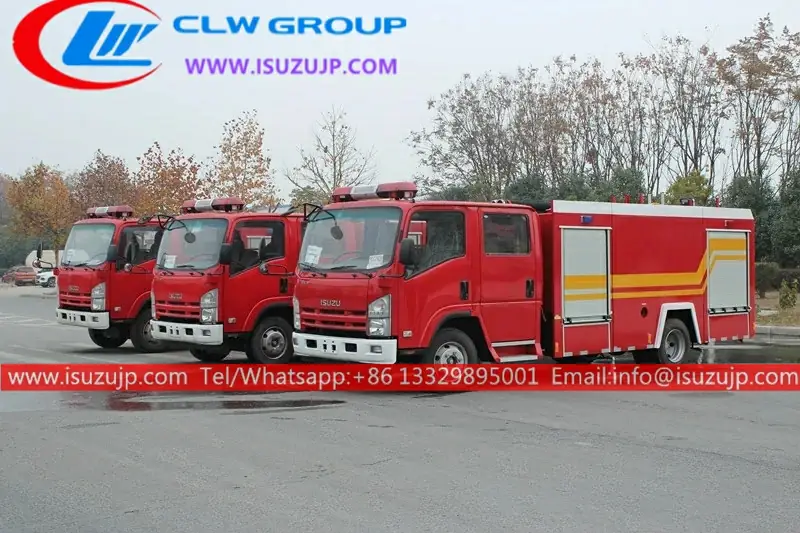

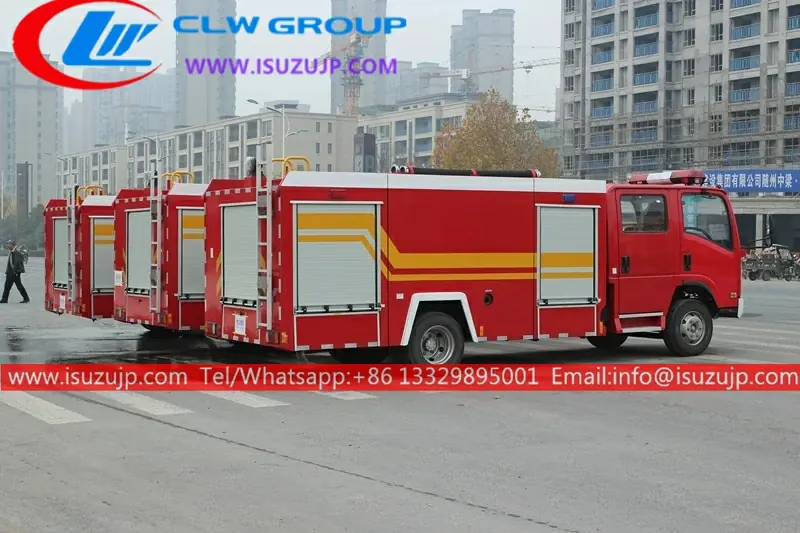

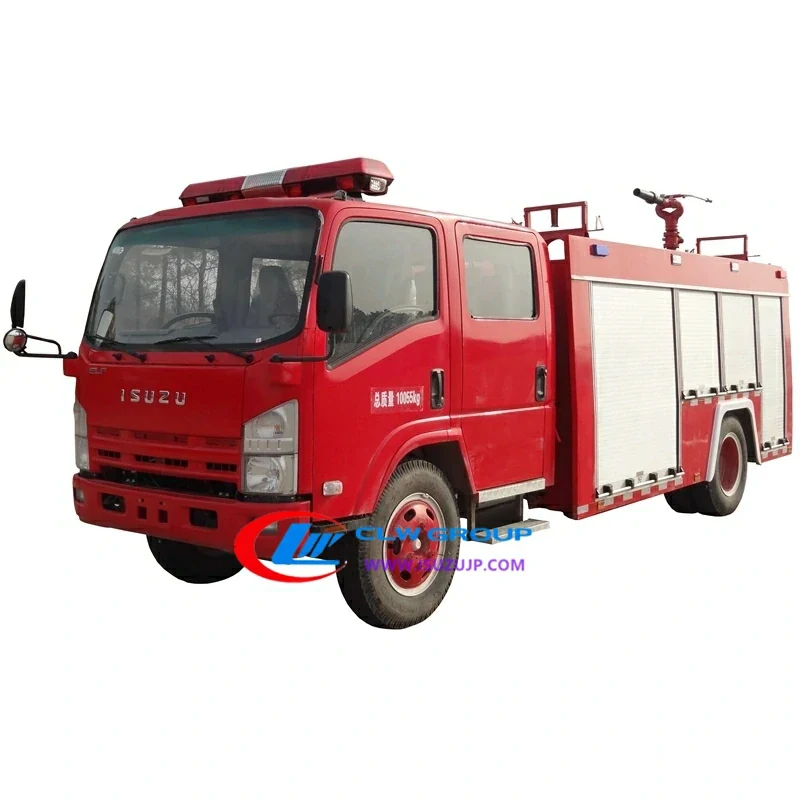

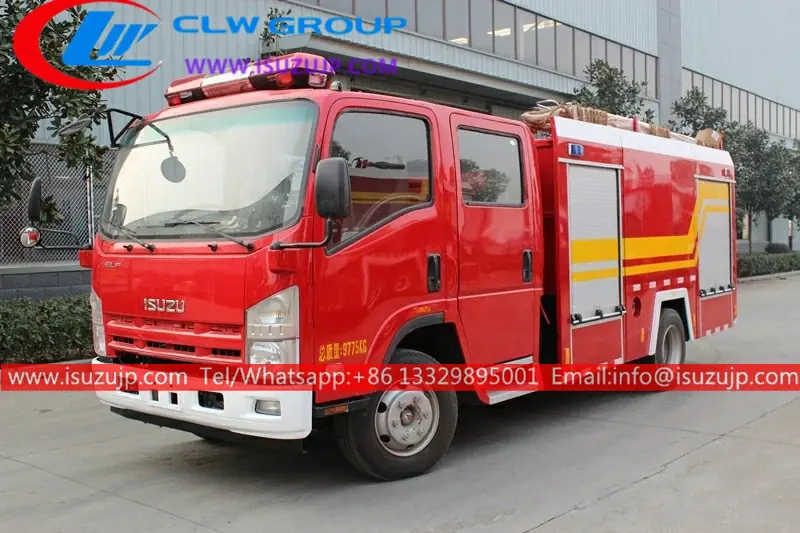

ISUZU ELF 5000liters Fire Brigade Truck
Isuzu ELF 700P water fire engine, Left Hand Drive model 4×2 chassis, 6 shift manual gearbox, 190 HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 190 HP (140 KW)
- Overall Dimension
- 7540X2300X3050 mm
- GVW / Kerb Weight
- 10,000kg / 5,900kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- Manual 6-shift speed levers with 1 reverse
- Emission
- Euro 4 / 5
Specification below is the factory table for this model, reproduced without edits. 55 rows.
ISUZU ELF 5000liters Fire Brigade Truck Description
- ISUZU fire brigade truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage
- 100% custom-made
- ISUZU ELF 700P heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification
ISUZU ELF 5000liters fire brigade truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7540X2300X3050 mm | |
| GVW / Kerb Weight | 10,000kg / 5,900kg | |
| Cab | Cab Capacity | 5 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5200 ml | |
| Emission Standard | Euro 4 / 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | Manual 6-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tire Specification | 8.25-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water tank capacity Foam tank capacity | 4,000L water 1,000L foam |
| Tanker Material | Carbon Steel | |
| Fire pump | CB10/30, 30L/S | |
| Fire pump location | Center or rear | |
| Fire monitor | Water jet distance: ≥45m Foam jet distance: ≥40m | |
| Electronic alarm | 1.2 m long | |
| Control panel | English or Your language | |
| All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… | ||
| Optional | Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. USA or Germany fire pump can be optional | |
Fire Equipment Table
ISUZU ELF 5000liters Fire Brigade Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
ISUZU ELF 5000liters Fire Brigade Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The ISUZU ELF 5000liters Fire Brigade Truck
What chassis is the ISUZU ELF 5000liters Fire Brigade Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Fire Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU ELF 5000liters Fire Brigade Truck
This build is listed as chassis ISUZU with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
