Main photo
Isuzu Milk Truck

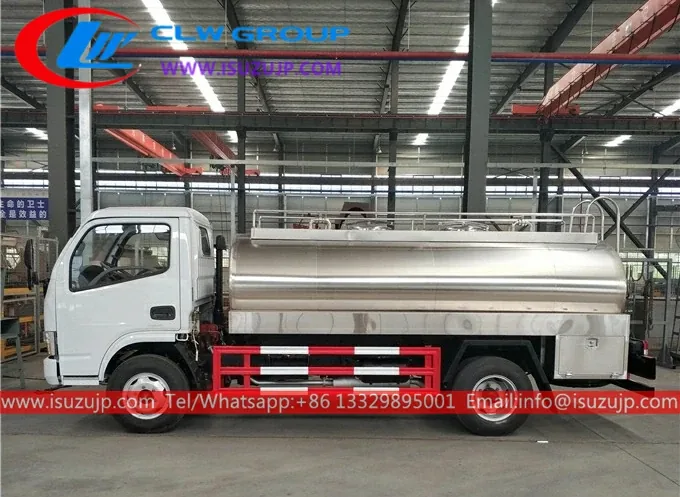

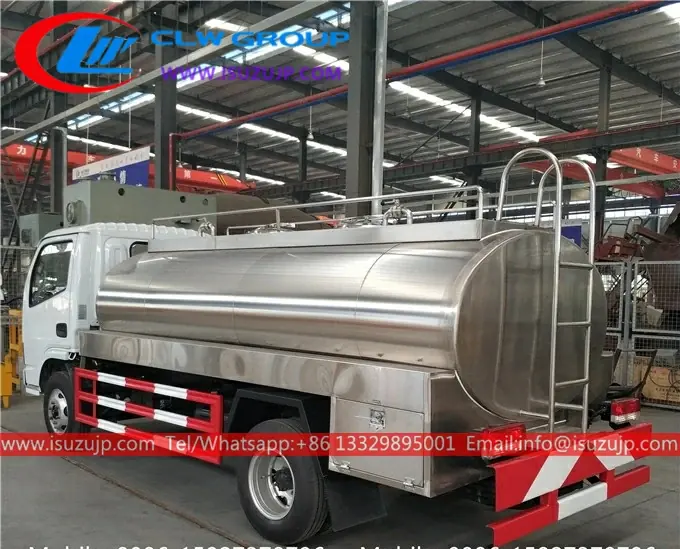

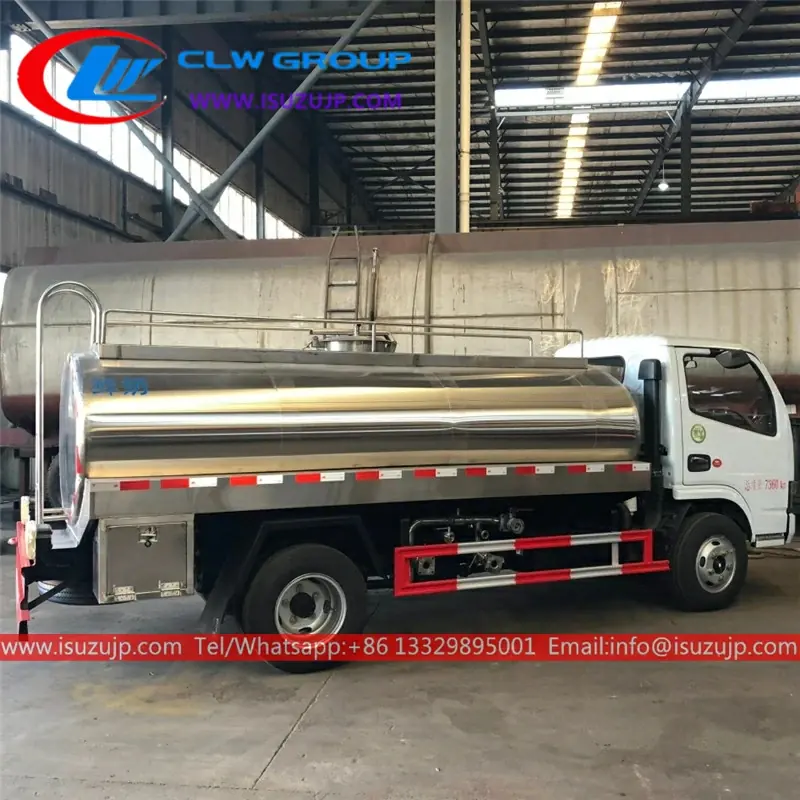

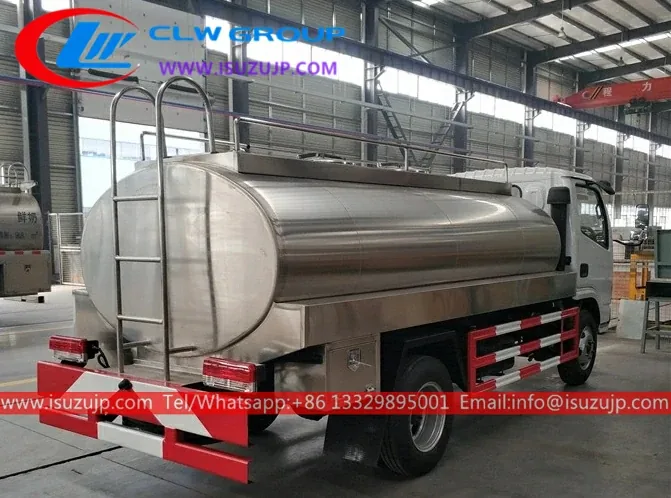

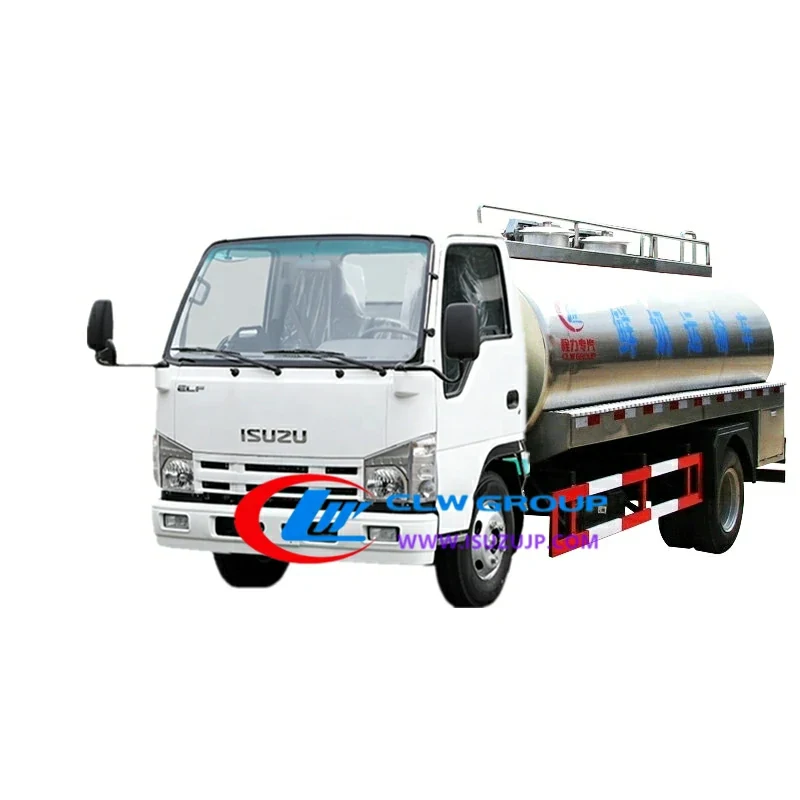

ISUZU ELF 5000liters Milk Tank Truck
Product Origin: China ChengLi tank color and Logo: Free Truck Size: 5995x2000x2400mm Shipping Port: China Main Port Lead Time: 20 Days Payment: T/T Delivery Time : Based on the mode of shipping chosen
- Transmission
- MSB 5 forward, 1 reverse, manual operated
- Milk Tanker (L)
- 5000
- Loading (kg)
- Appro × 4220
- Product Origin
- China
- Body Size
- 5995x2000x2400mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 19 rows.
ISUZU ELF 5000liters Milk Tank Truck Application
- Isuzu Milk tank truck Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
- Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage
- ISUZU 100P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
C omplete Vehicle Parameter
| Vehicle | ISUZU ELF 5000liters milk tank truck |
|---|---|
| Manufacturing year | 2022, brand new |
| Overall dimensions (mm) | 5995 x 2000 x 2400 |
| Milk tanker (L) | 5000 |
| Gross Vehicle Weight (kg) | Appro × 7300 |
| Net weight (kg) | Appro × 2950 |
| Loading (kg) | Appro × 4220 |
| Wheelbase (mm) | 3300 |
| Max speed (km/h) | 90 |
| Chassis Parameter | |
| Cabin | Single row cabin, power steering, with air conditioner, 2 passengers, left-hand drive. |
| Traction system | 4×2 |
| Engine | Brand: ISUZU 100P Model: 4HK1N5S 98hp Type: diesel, 4 cylinders,water-cooled. Displacement: 3707ml Emission standard: Euro V |
| Transmission | MSB 5 forward, 1 reverse, manual operated |
| Tire model | 7.00R16 |
| No.of tires | 6pcs, and a spare tire |
| Milk Tank Parameter | |
| Characteristics | Capacity: 5CBM. Inside material: stainless steel 304, thick 3mm. Outside: stainless steel mirror finish, thick 2mm. The insulation layer is 80mm thick polyurethane. Finish: the interior of the milk tank is very smooth and highly polished, so it does have not any sharp angles. Outlet: butterfly valve at the rear of milk tank. Inlet: butterfly valve with a union end. Manhole: with fixes deep stick to the manhole and 430 mm diameter. PIC cleaning equipment: 2 spray balls in the compartment, PIC in feed and return pipe from the compartment with butterfly valve discharge connected to one discharge line. Accessories: stainless steel ladder to the top of milk tank and anti-slippery walkway. |
| Performance | The heat preservation effect can keep <1 ºC in 24 hours. |
Tank Manufacturing Standards
- The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 5000liters Milk Tank Truck
What chassis is the ISUZU ELF 5000liters Milk Tank Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu milk truck?
The factory table lists Milk Tanker (L) 5000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
