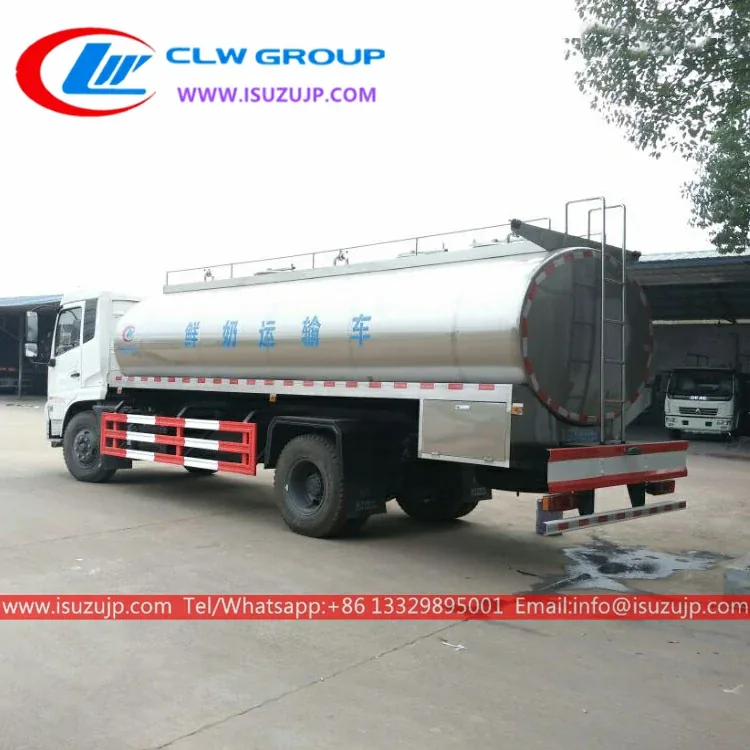

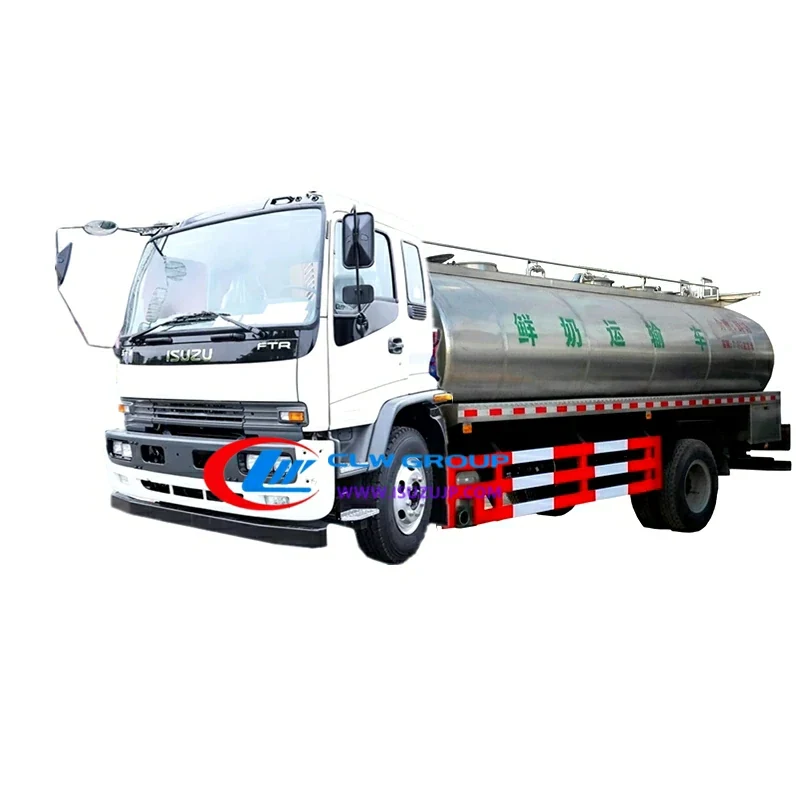

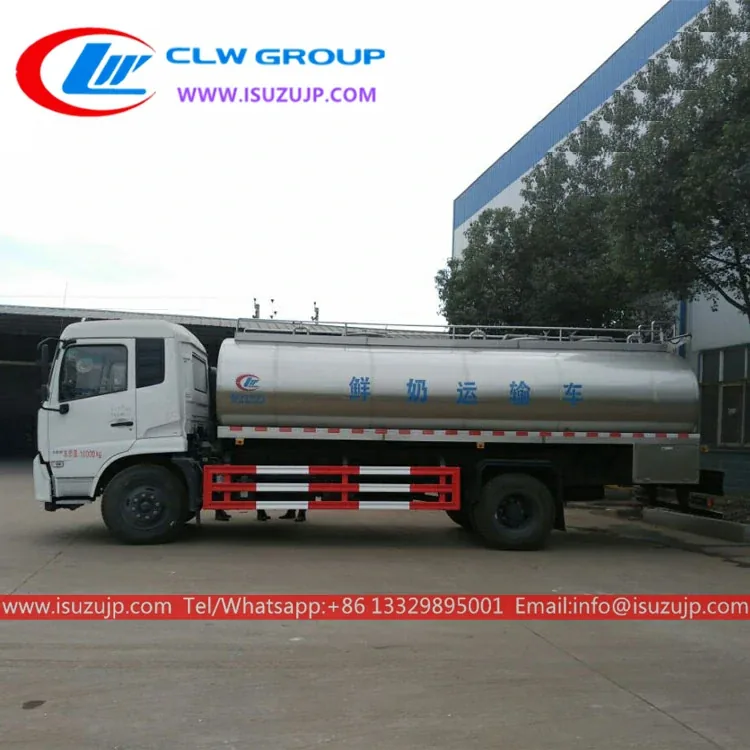

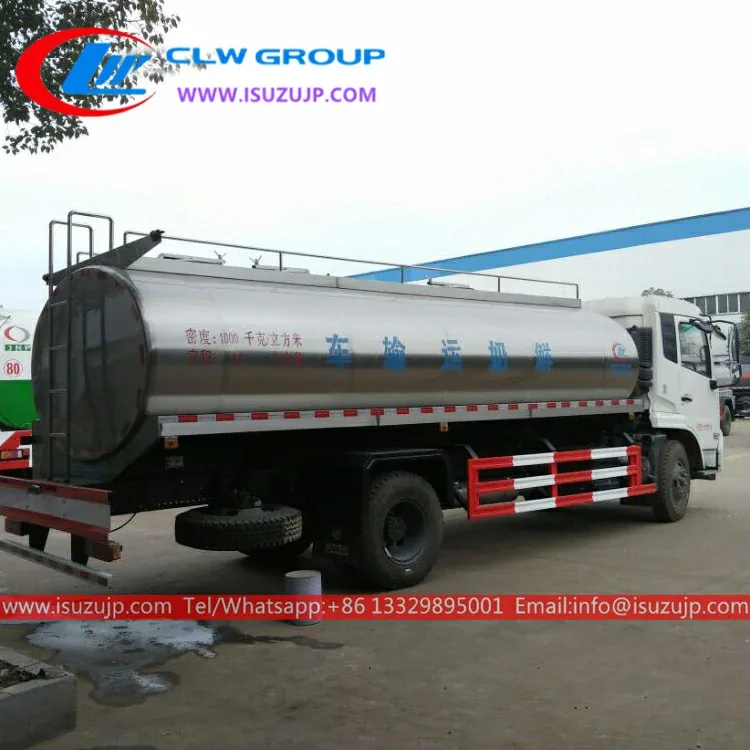

ISUZU FTR 12000liters Dairy Tanker Truck

ISUZU FTR 12000liters Dairy Tanker Truck Application

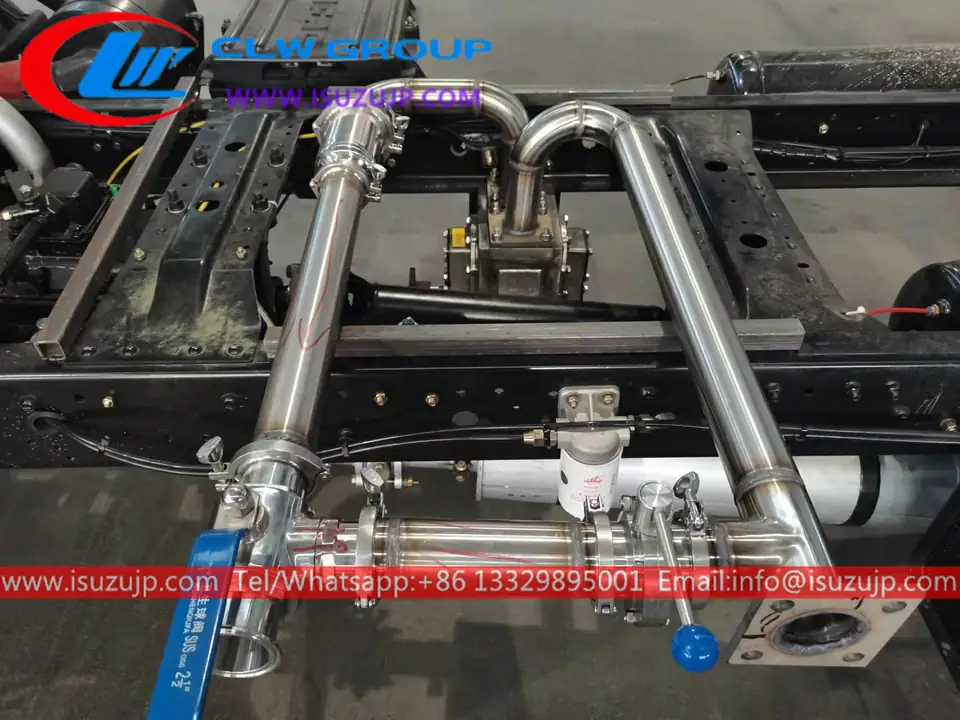

• Isuzu FTR 12000liters dairy tanker truck Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
• 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
• Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
• Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
• Optional compartments, installation of pumps, flowmeters, etc.

Advantage

• ISUZU FTR chassis, perfect performance
• ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
• Nice shape, rational structure
• Water pump super powerful, efficient pump in and out
• The strong, durable, perfect performance
• Prolonged service life

Specification

ISUZU FTR 12000liters dairy tanker truck General Technical Parameters Overall Dimension 7500X2500X3000(mm) Gross Vehicle Weight 15800(Kg) Curb Weight 7980(Kg) Chassis Specification Chassis Brand ISUZU FTR Drive model 4*2 Cabin Single, Left-Hand Driving, with air conditional Number of Passengers 2 Engine Model 4KH1, 4-stroke direct injection, 4-cylinder in-line with water cooling, inter-cooling, with ABS. Power 151KW/205HP Emission standard EURO V Displacement 5900(ml) Fuel type Diesel Gearbox MLD 6Forwards & 1Reverse Brake System Air break Wheel Base 4500mm Front/Rear Axle Loading 7000/13000(Kg) Springs Number 8/10+8 Overhang 1245/2655(mm) Tire 10.00R20, 6pcs+1spare tire Max Driving Speed 95(km/h)

Upper structure Specification Tank Body External Dimension 5700×2000×1400(mm) Internal Dimension 5500×1800×1200(mm) Volume 10CBM Inside Layer Stainless steel 304/2B; 4mm Middle Layer Polyurethane foam; 80-100mm Outer Layer Stainless steel 304; 2mm Insulation Performance 24 hours temperature difference is no more than 1ºC. Other Configuration 1. Breathing valve, manhole, discharging valve, inside ladder, cooling system, etc. 2. Each part and valve are stainless steel. 3. Each compartment has CIP Device. Options Compartment number

Tank Manufacturing Standards

• The liner is made of 3mm thick 304 food-grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
• The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance and hygiene standards can reach the domestic advanced level.
• The tank insulation layer uses 8cm thick polyurethane, and the density reaches 32~35 kg/cubic, to ensure that the temperature rises and falls within 24 hours during the transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
• The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is lightweight and has good strength.
• There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
• It can transport and transport fresh milk, liquid food, purified water, edible oil, and other media at the same time through sub-bins.

The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:

Truck Tools and Instructions

• Free parts for 12 months.
• Supply of original parts.
• DHL serves 7 days worldwide.
