- ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck for Sale
Main photo
Isuzu Milk Truck

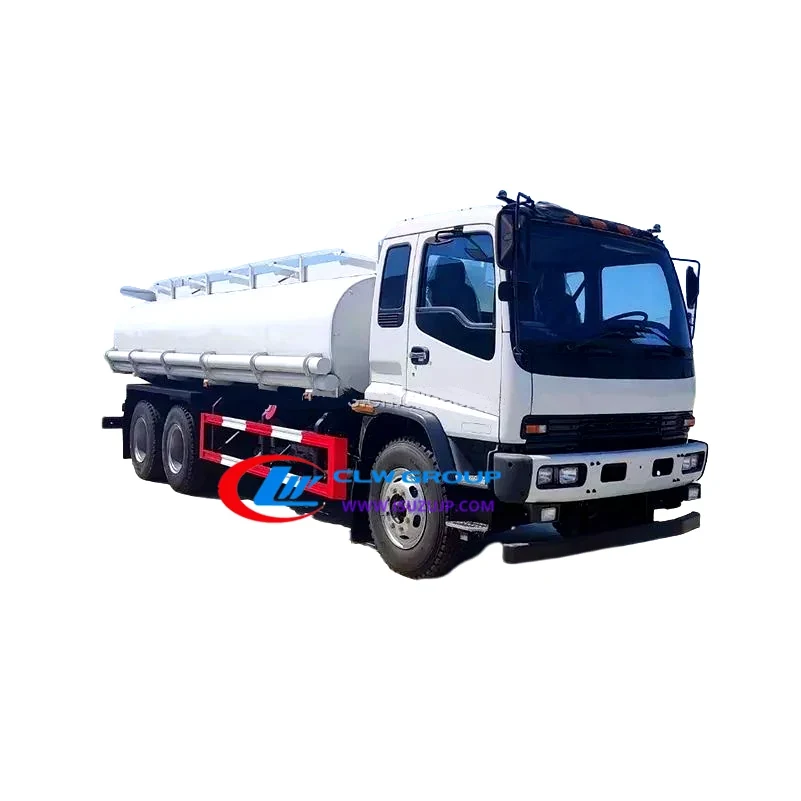

ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck for Sale
ISUZU FVZ left-hand drive model 6×4 chassis, FAST 9-shift manual gearbox, ISUZU 350HP engine. Standard Four compartments, with heat preservation and cleaning device
- Transmission
- FAST.12 forwards,2 reverse gears, manual operation
- Emission
- Euro V
- Payload Weight(kg)
- 20000
- Tanker Capacity
- 20000liters
- Tanker Material
- Stainless steel 304, 4mm
Specification below is the factory table for this model, reproduced without edits. 33 rows.
ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck Application
- Isuzu stainless steel bulk milk storage tank truck Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
- Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage
- ISUZU FVZ chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- The strong, durable, perfect performance
- Prolonged service life
Specification
Main Specification
| Product Name | ISUZU FVZ 5000 gallons bulk milk storage tank truck for sale |
|---|---|
| Driving Type | 6×4, left-hand drive |
| Color | Optional |
| Weights | |
| Payload weight(kg) | 20000 |
| Curb weight(kg) | Approx.12500 |
| Dimensions | |
| Wheelbase(mm) | 4565+1370 |
| Overall Dimension(mm) | Approx.10300×2500×3200 |
| Engine | |
| Engine model | 6UZ1-TCG51(350HP) isuzu engine |
| Engine type | 4 stroke water-cooled, Turbocharged inter-cooled |
| No. of cylinders | Straight-6 cylinders |
| Displacement(L) | 9.839L |
| Rated power Rev((Kw) | 257kw |
| Emission standard | Euro V |
| Drive Line | |
| Transmission | FAST.12 forwards,2 reverse gears, manual operation |
| Steering | Power steering |
| Brake system | air brake |
| ABS | have |
| Cab | |
| Cabin | Isuzu FVZ, with A/C, electric window |
| Axle | |
| Front axle | 7 tons |
| Rear-axle | 13 tons+13tons |
| Tire specification | |
| Tire specification | 315/80R22.5 or 12R22.5 standard tire,10 tires+1 spare tire |
| Specification technology of water tank | |
| Tanker capacity | 20000liters |
| Tanker material | Stainless steel 304, 4mm |
| Manhole | 1 unit DN500mm manhole |
| Horse reels | 1. The inner is made of 4mm 304 2B Stainless Steel 2. the middle layer of the tank is made of 80mm thick polyurethane 3. The outer layer of the tank is made of stainless steel. 4.4 compartmentsMedium temperature change ≤1°C during 24 hours. An automatic cleaning system is adopted in the tank, and the cleaning device rotates 360degress to ensure no residual milk. All valves and pipelines are made of stainless steel |
Tank Manufacturing Standards
- The liner is made of 3mm thick 304 food-grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, and hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rises and fall within 24 hours during the transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is lightweight, and has good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck for Sale
What chassis is the ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu milk truck?
The factory table lists Payload Weight(kg) 20000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Milk Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU FVZ 5000 Gallons Bulk Milk Storage Tank Truck for Sale
This build is listed as transmission FAST.12 forwards,2 reverse gears, manual operation with emission Euro V. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
