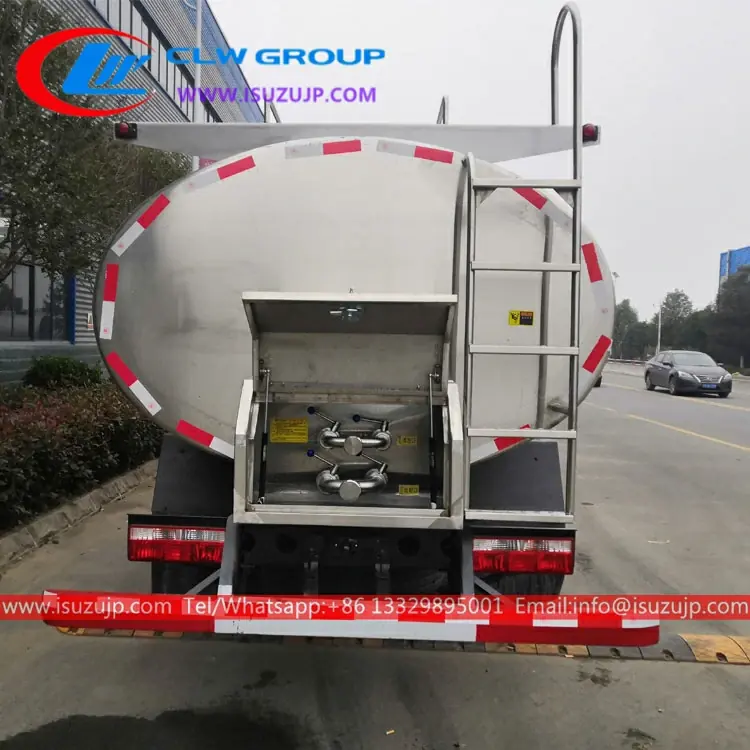

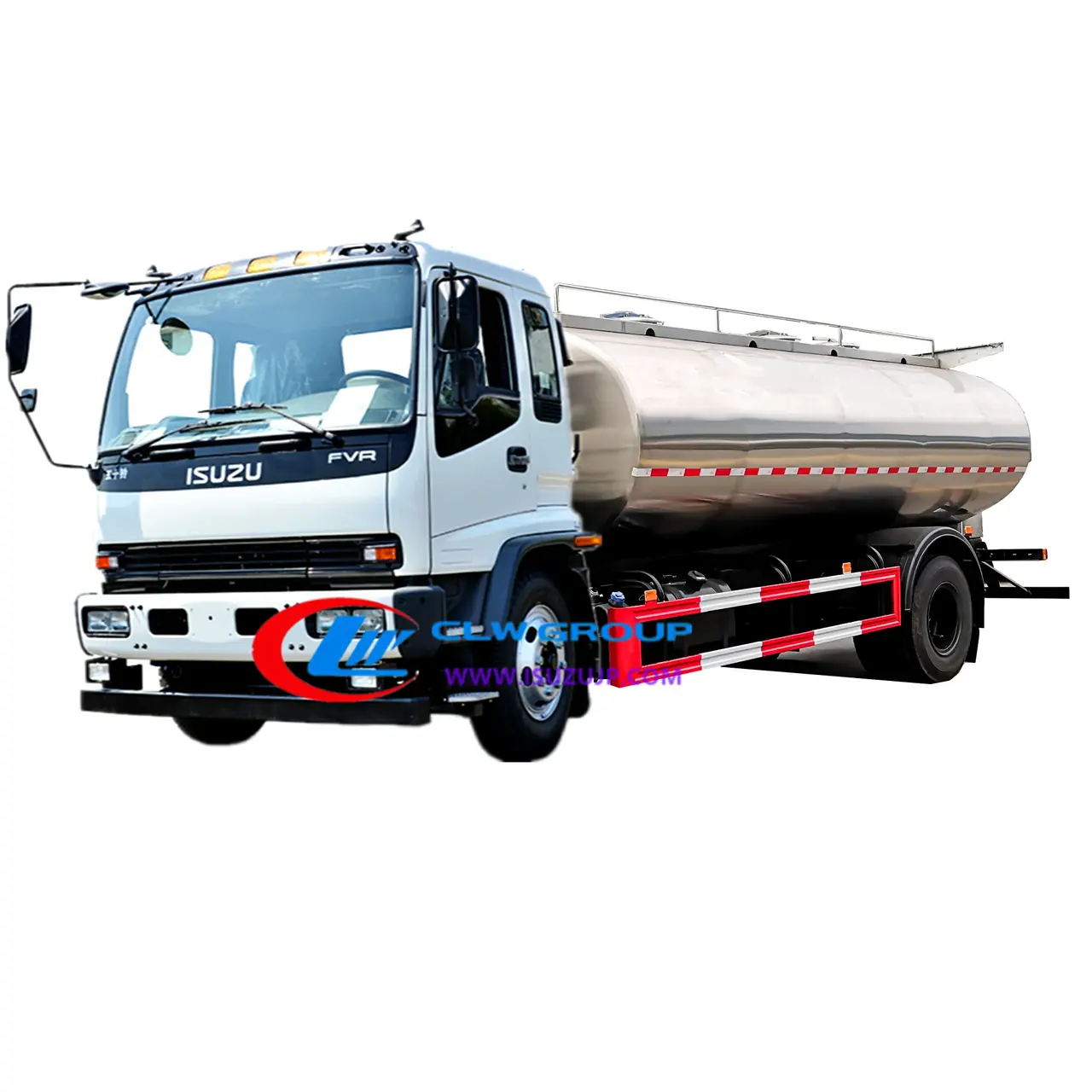

ISUZU FVR 15000liters Milk Transport Tanker Lorry

ISUZU FVR 15000liters Milk Transport Tanker Lorry Application

• Isuzu FVR 15000liters milk transport tanker lorry Tank material: stainless steel 304-2B, food-grade material. All pipes and valves are made of stainless steel.
• 80mm Polyurethane foam to keep the temperature to prevent milk spoilage.
• Equipped with a CIP cleaning device to clear the inner side of the tank to keep it clean.
• Support transportation medium: Milk, drinking water, cooking oil, beer, maltose, maltose, ice cream
• Optional compartments, installation of pumps, flowmeters, etc.

Advantage

• ISUZU FVR chassis, perfect performance
• ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
• Nice shape, rational structure
• Water pump super powerful, efficient pump in and out
• The strong, durable, perfect performance
• Prolonged service life

Specification

Item Unit Description Model ISUZU FVR 15000liters milk transport tanker lorry Dimension mm 8600*2500*3200 Sample Tank Dimension mm 6200 length * 2300 width * 1550 height , ellipse Litter 15000 material Inside tank 304-2B material, 4 mm thick Curb Weight kg 8100 G.V.W kg 18000 Wheel Base mm 4500 F/R track base mm 1880/1860 F/R Axle-Load Kg 4500 / 9000 Type Steel Spring Type Approach/Departure angle . 20/8 Traction system Type 4*2 Max speed Km/h 90 Tire Specification/Number Model 10.00R20 , 6 Unit +1 Spare Unit Engine model Model 6KH1-TCL Emission/Kw 9800 cc / 176 Kw Horse Power 180 Power 640 N.m – 1600 r/min Type Diesel, 6 cylinders, Turbocharged, Inter-Cooling manufacturer ISUZU Standard Euro V Gearbox Type MLD 6 F & 1R , Manual , DF6S900 OD Brand FVR Fuel Tank Liter 200 Electric system V 24 Cab Person 3 Type Reversible, Manual Steering Powering, LHD Installing Mp3, Radio Air Conditioner Hot Wind / Cold Wind Equipment Installed 1. Breathing valve, manhole, discharging valve, inside ladder, cooling system, etc.2. Each part and valve are stainless steel. 3. Each compartment has CIP Device. 4.3 Compartments

Tank Manufacturing Standards

• The liner is made of 3mm thick 304 food-grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
• The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance and hygiene standards can reach the domestic advanced level.
• The tank insulation layer uses 8cm thick polyurethane, and the density reaches 32~35 kg/cubic, to ensure that the temperature rises and falls within 24 hours during the transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
• The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is lightweight and has good strength.
• There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
• It can transport and transport fresh milk, liquid food, purified water, edible oil, and other media at the same time through sub-bins.

The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:

Truck Tools and Instructions

• Free parts for 12 months.
• Supply of original parts.
• DHL serves 7 days worldwide.
