ISUZU Hook Loader Truck

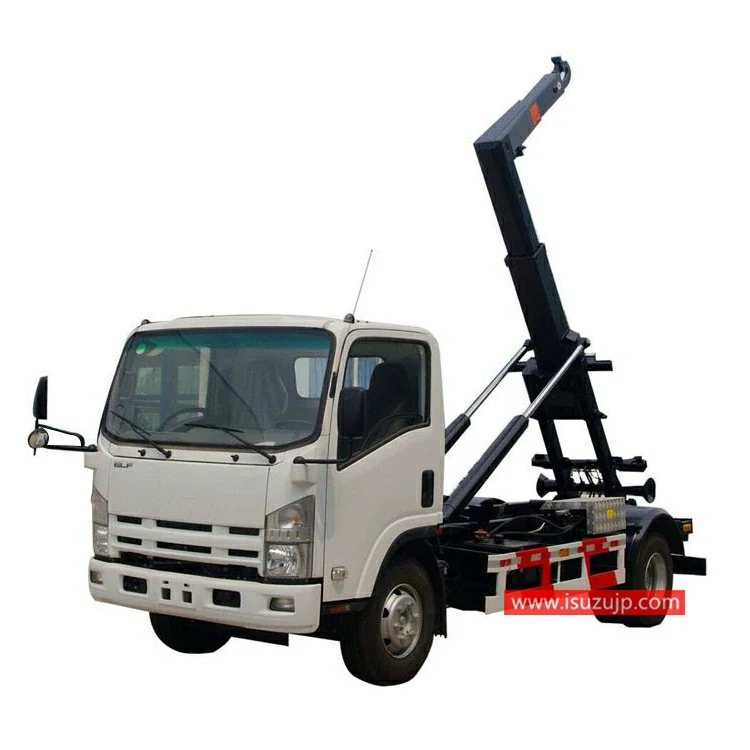

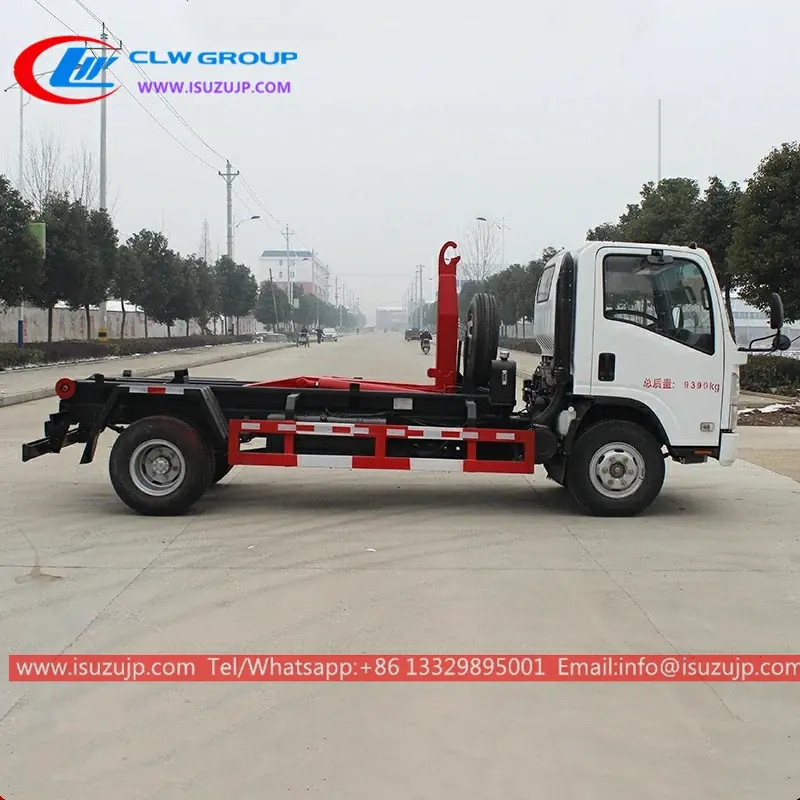

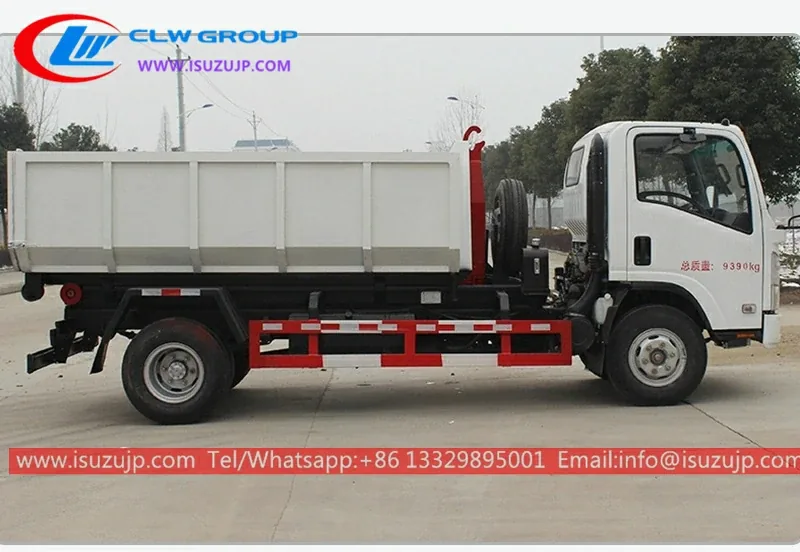

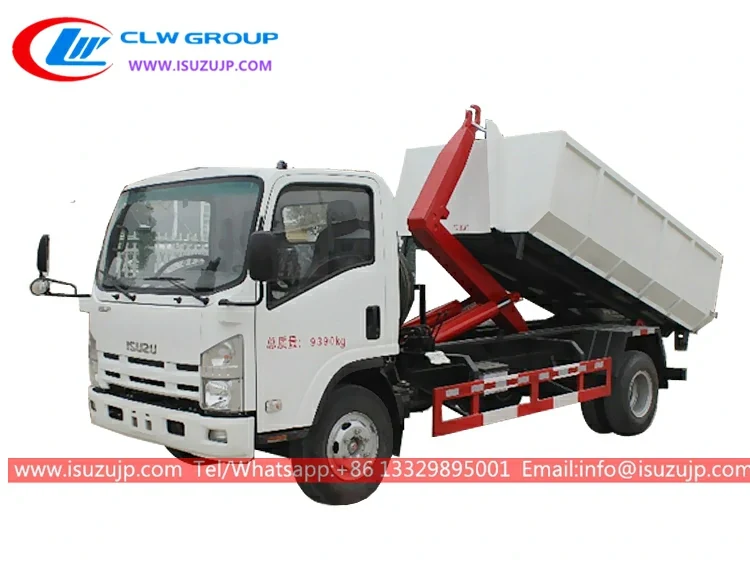

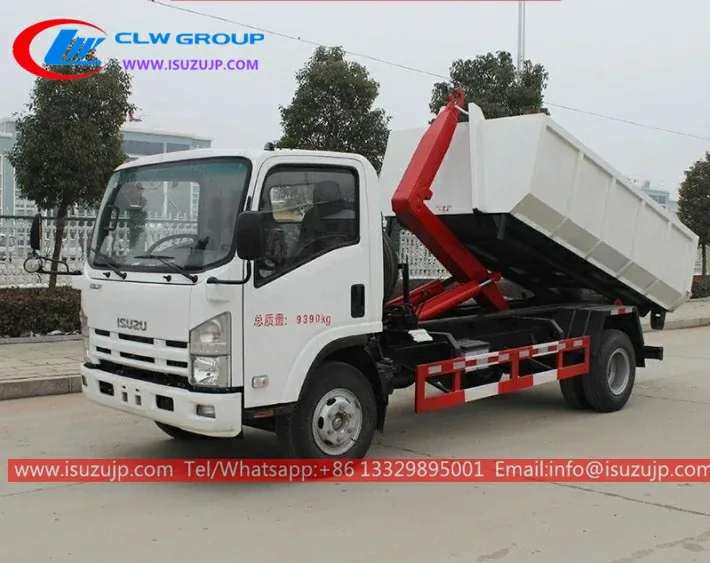

ISUZU ELF 8cbm Hook Roll Off Truck
4×2 ISUZU ELF 700P chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength hook loader system, with all kinds of garbage container optional
- Chassis
- ISUZU
- Engine
- ISUZU Engine
- Power
- 190HP (139 KW)
- Overall Dimension
- 7400x2300x2800 mm
- GVW / Kerb Weight
- 10,000 kg / 4,600 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- 6-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 30 rows.
ISUZU ELF 8cbm Hook Roll Off Truck Description
- Isuzu hook roll off truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage
- ISUZU ELF 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU ELF 8cbm hook roll off truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7400x2300x2800 mm | |
| GVW / Kerb Weight | 10,000 kg / 4,600 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU Engine | |
| Power | 190HP (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Loading Capacity | 8 CBM |
| Dustbin Material | Anti-corrosive Steel | |
| Hydraulic System | Chinese top brand multi-way valve, cylinders | |
| Control Method | Manual Control, remote control as optional | |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system | ||
| All other standard accessories: Tool kit, English manual | ||
Working Parameter
ISUZU ELF 8cbm Hook Roll Off Truck Specification
| Box time | Less than 15 seconds | Roller material Cast iron or forged steel |
|---|---|---|
| Unboxing time | Less than 15 seconds | Control method Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position Cab + car side |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU ELF 8cbm Hook Roll Off Truck
What chassis is the ISUZU ELF 8cbm Hook Roll Off Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu hook loader truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
