- ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale
Main photo
Isuzu Refrigerated Truck

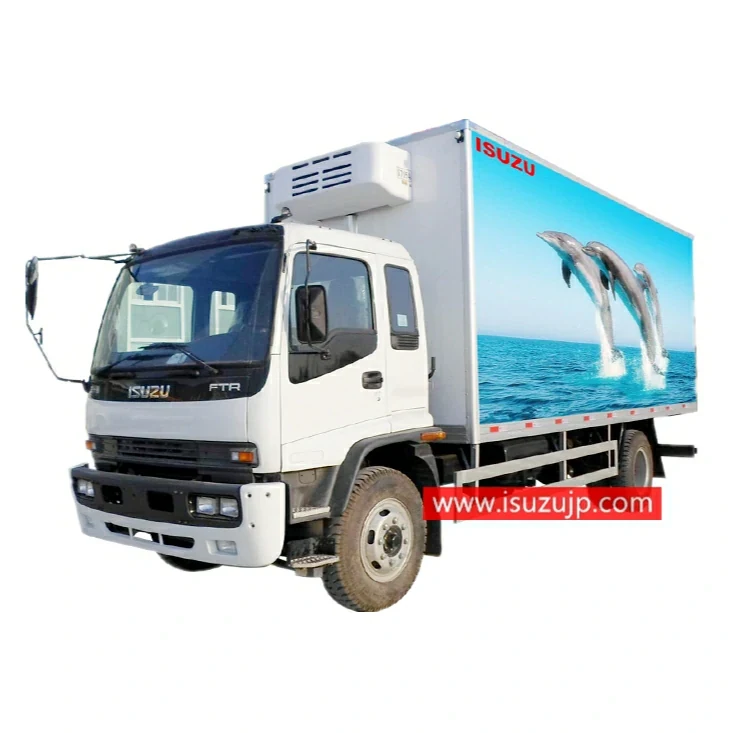

ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale
ISUZU FTR 5.6meters reefer and frozen truck, ISUZU left-hand drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 205HP engine. Equipped with famous cooling units
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 205 Hp (150 KW)
- Overall Dimension
- 9000X2500X3800 mm
- GVW / Kerb Weight
- 16,000 kg / 7,200 kg
- Drive Type
- 4X2, left hand drive
- Transmission
- 6-speed forward, 1 reverse
- Emission
- Euro IV
Specification below is the factory table for this model, reproduced without edits. 29 rows.
ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Description
- Isuzu Carrier refrigerator cooler truck also called Freezer truck, Food meat transportation van, Refrigerator lorry truck is a van or truck designed to carry perishable freight specific temperatures.
- Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by gasoline or diesel engines, or utilize carbon dioxide as a colling agent.
- ISUZU Trucks can supply freezer trucks with a capacity of 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons,30tons.
- Transportation temperature can be from +20°C, -5°C, -10°C, -15°C, -20°C
Advantage
- 100% custom-made
- 3 cbm to 40 cbm available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years spare parts & Technical support
- ISUZU engine & gearbox, super powerful, no overhaul within 500,000 km.
- Refrigeration system brand can be optional.
- Transport temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C -25°C.
Specification
ISUZU FTR 12 ton Carrier refrigerator cooler truck sale
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 9000X2500X3800 mm | |
| GVW / Kerb Weight | 16,000 kg / 7,200 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 205 Hp (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of axle | 2 | |
| Tyre Specification | 9.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 12 Ton |
| Box Material | Fiberglass | |
| Cooling system | King | |
| Lowest temperature | -5° or -15° | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional | Box material could be aluminum or stainless steel. Cooling system could be imported brand. Temperature data logger, temperature alarm. Extra side door. Slide rail and meat hook for special use. | |
Working Parameter
ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale Specification
| Insulation thickness | 80mm ester urethane | Inside and outside materials 2.2mm FRP / Stainless steel plate Unit brand Domestic, imported / independent, non-independent |
|---|---|---|
| Floor material | FRP / Aluminium skid plate / Stainless steel skid plate | Installation location Front, skirt, top Bottom ventilation slot Optional, aluminum alloy profile |
| Cooling time | 30 minutes | Thermal curtain Optional Control position Cab |
| Meat hook | Optional | Insulation effect 24 hours temperature rise 5 degrees External power supply Optional |
| Cooling temperature | Minus 20-5 degrees | Constant temperature unit Optional Temperature and humidity printer Optional |
Questions
Questions About The ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale
What chassis is the ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu refrigerated truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Refrigerated Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU FTR 12 Ton Carrier Refrigerator Cooler Truck Sale
This build is listed as chassis ISUZU with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
