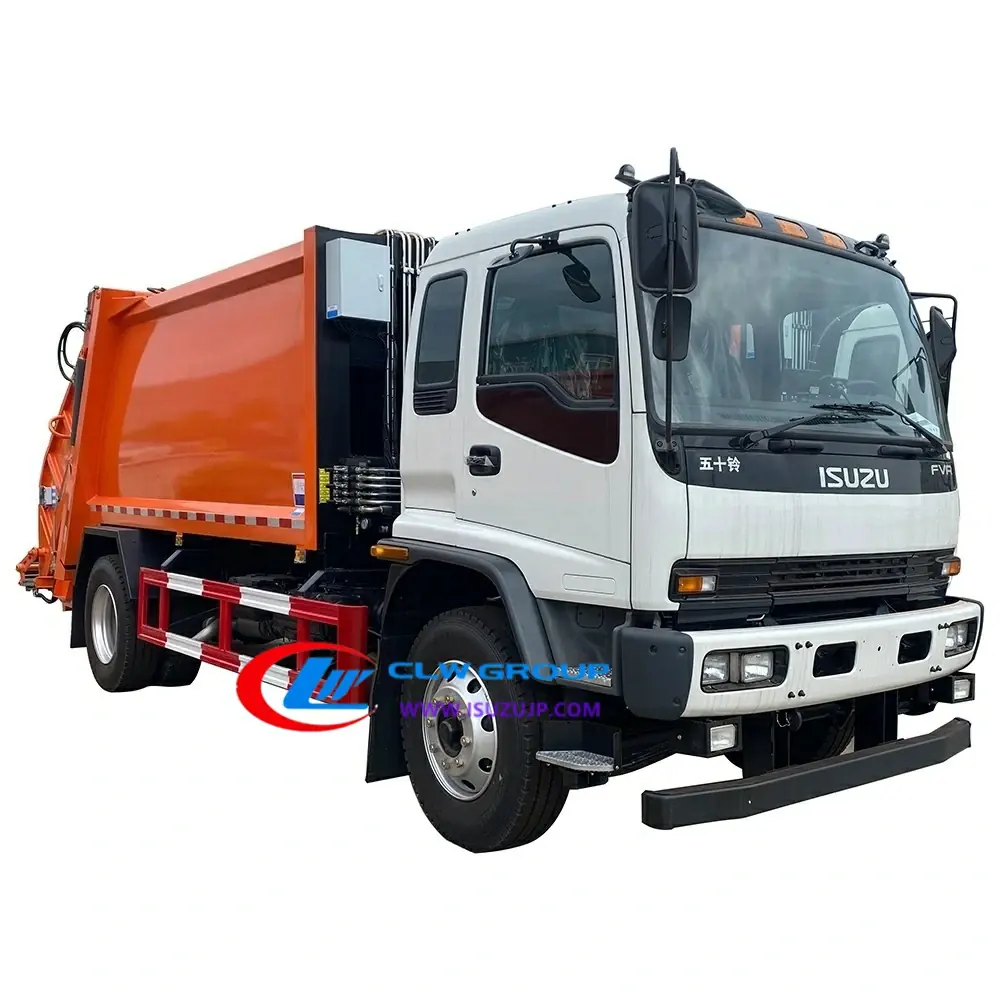

Main photo
Isuzu Garbage Compactor Truck

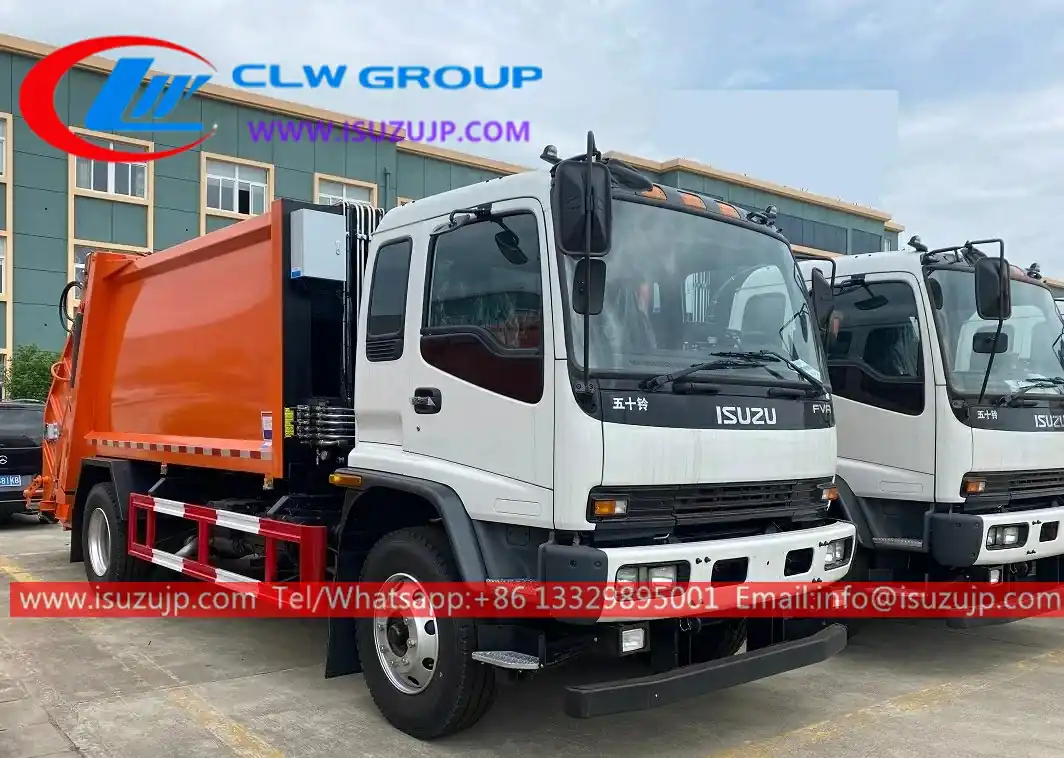

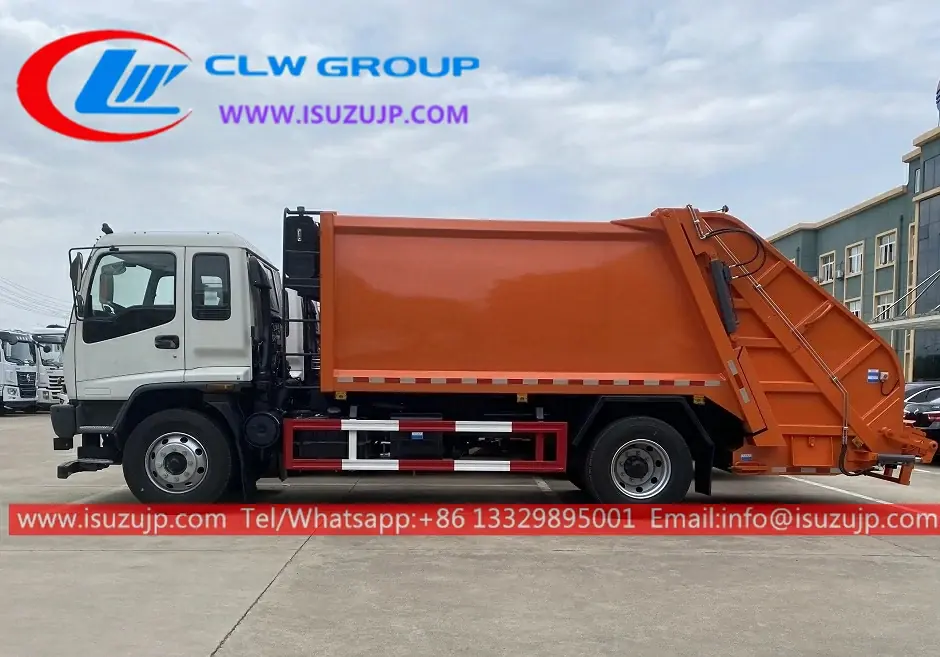

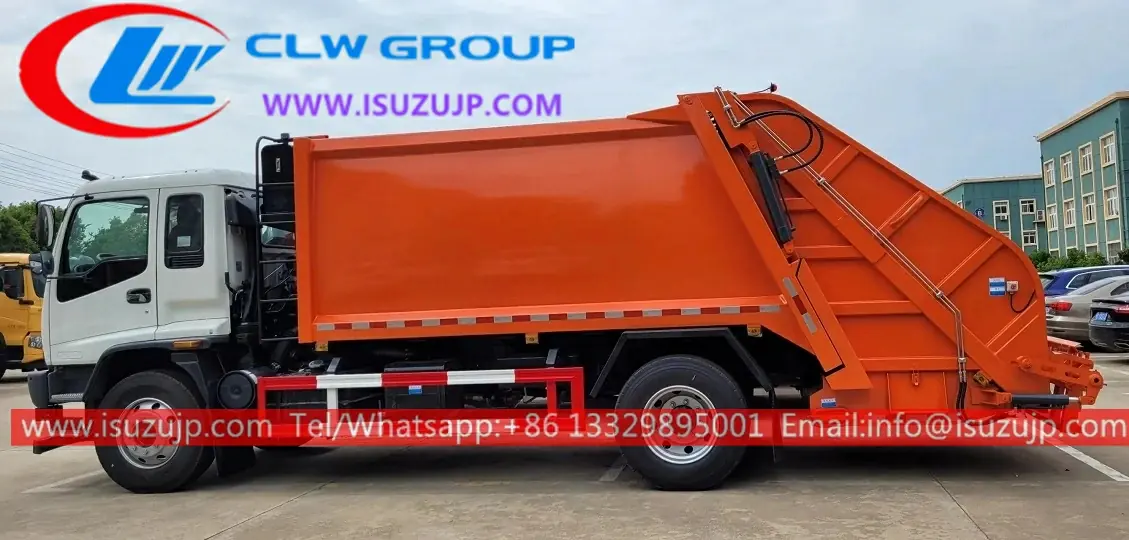

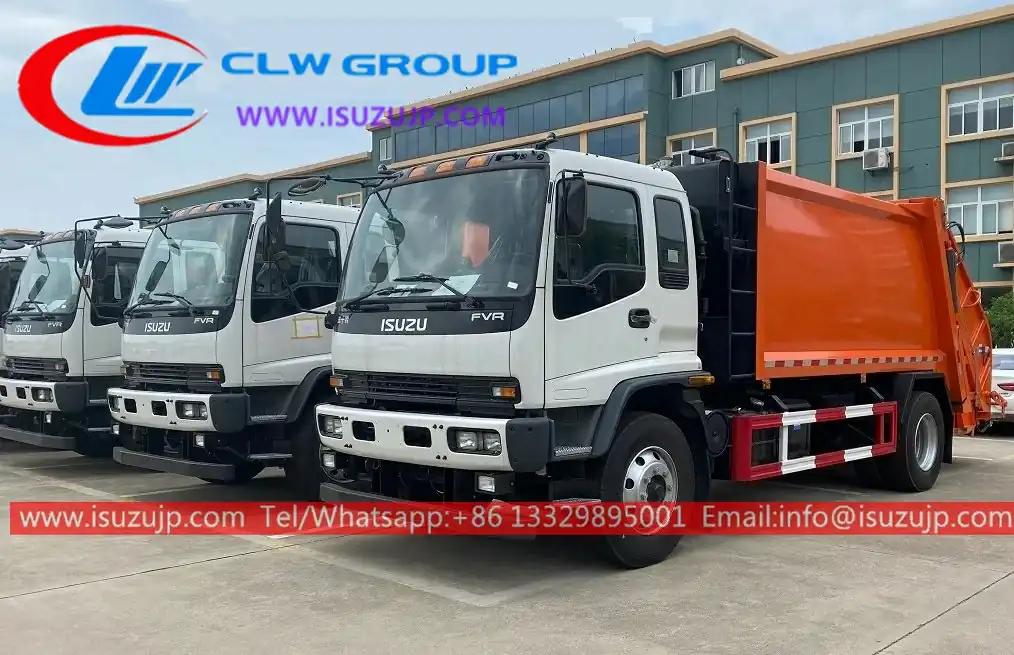

ISUZU FVR 12cbm Garbage Compression Recycling Truck
4×2 ISUZU FVR chassis, MLD 6-shift manual gearbox, 240HP diesel engine, high strength steel compactor body, Siemens PLC control device, with 10 ton loading capacity
- Emission
- Euro 5
- Volume
- 10cbm
- Volume of Filler
- 1.5cbm
- Front Drain Tank
- 200L
- Rear Drain Tank
- 500L
- Lifting Cylinder
- 2
- Hydraulic Tank
- 150L
- Hydraulic Oil Pump
- Hefei Wanye Oil Pump
Specification below is the factory table for this model, reproduced without edits. 46 rows.
ISUZU FVR 12cbm Garbage Compression Recycling Truck Description
- Isuzu FVR 12cbm garbage compression recycling truck also called Truck-mounted compactors, sanitation garbage compactor, compressing garbage trucks, waste compactors garbage truck, Hydraulic compressor garbage truck.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage
- ISUZU FVR Light chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU FVR 12cbm Garbage Compression Recycling Truck Specification
| Truck name | ISUZU FVR 12cbm garbage compression recycling truck | |
|---|---|---|
| Cabin | Driving type 4×2 | |
| 2 seats, 1 sleeper, with A/C, LHD | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8210x2510x3050 |
| Wheel base (mm) | 4500 | |
| Gross Vehicle Weight | 15800 | |
| Max. driving speed (km/h) | 100 | |
| Engine | Model | 6HK1-TCL |
| Horse power | 240hp | |
| Displacement | 7790ml | |
| Emission standard | Euro 5 | |
| Gearbox | 6 forwards and 1 reverse | |
| Tire | 295/80R22.5, 6pcs with 1 spare | |
| Body | ||
| Volume | 10cbm | |
| Material | Carbon steel | |
| Volume of filler | 1.5cbm | |
| Side thickness | 4mm | |
| Bottom thickness | 5mm | |
| Front drain tank | 200L | |
| Rear drain tank | 500L | |
| Height of filler enter | Less than 1050mm | |
| Hydraulic system | ||
| Dozer cylinder | 1 | |
| Scraper cylinder | 2 | |
| Skateboard cylinder | 2 | |
| Rear flip cylinder | 2 | |
| Lifting cylinder | 2 | |
| Hydraulic tank | 150L | |
| Hydraulic oil pump | Hefei Wanye Oil Pump | |
| Multi-way valve | Yangzhou Zhongmei multi-way valve | |
| Electric control system | ||
| Operating system | Taiwan Yonghong PLC electric control system and manual operation device | |
| Electronic control operation button | 1 set in the cabin, 1 set at the left and right of the rear of the body (3 sets total) | |
| Manual operation device | 1 set behind cab | |
| Pressing system | ||
| Rated pressure | 18Mpa | |
| Loading cycle | Less than 25s | |
| Unloading time | Less than 35s | |
Working Parameter
ISUZU FVR 12cbm Garbage Compression Recycling Truck Specification
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump and double valve | Body material High strength T420 special steel plate |
|---|---|---|
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices Tail lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU FVR 12cbm Garbage Compression Recycling Truck
What chassis is the ISUZU FVR 12cbm Garbage Compression Recycling Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu garbage compactor truck?
The factory table lists Volume 10cbm. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
