- ISUZU NPR 10000liters Dairy Milk Delivery Truck for Sale
Main photo
Isuzu Milk Truck

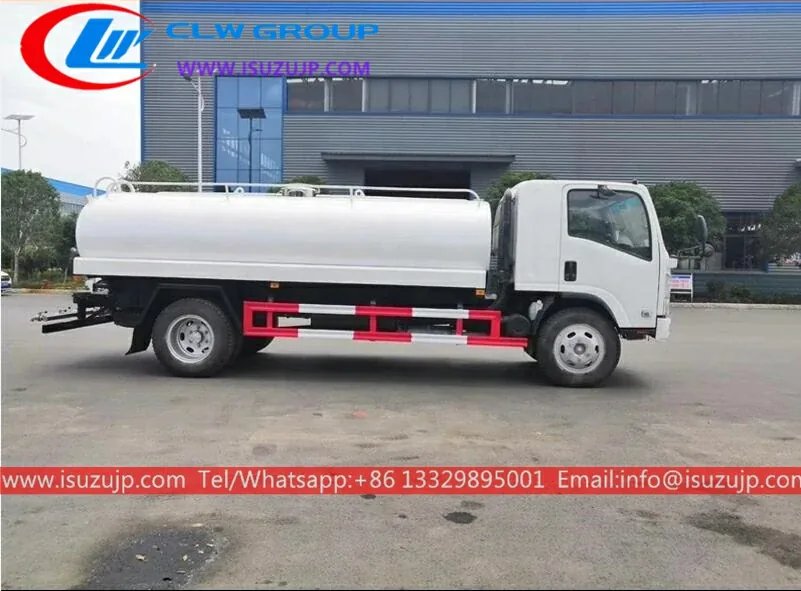

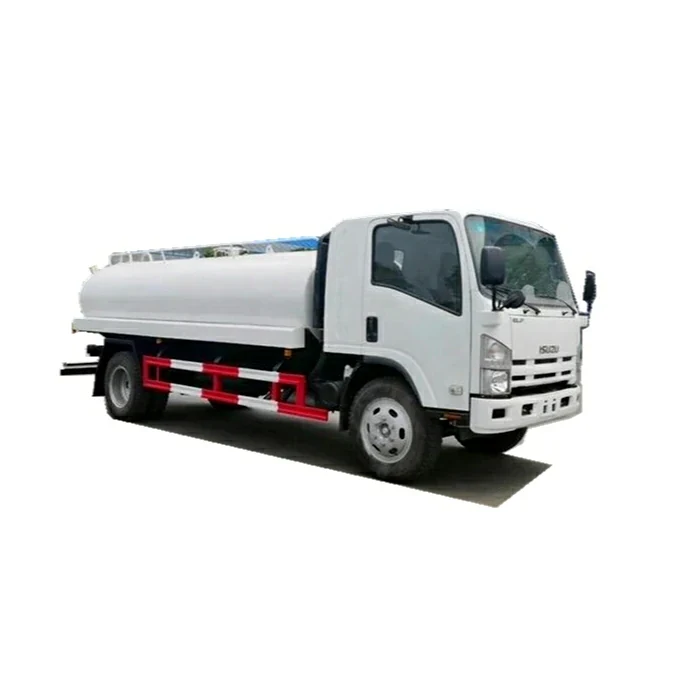

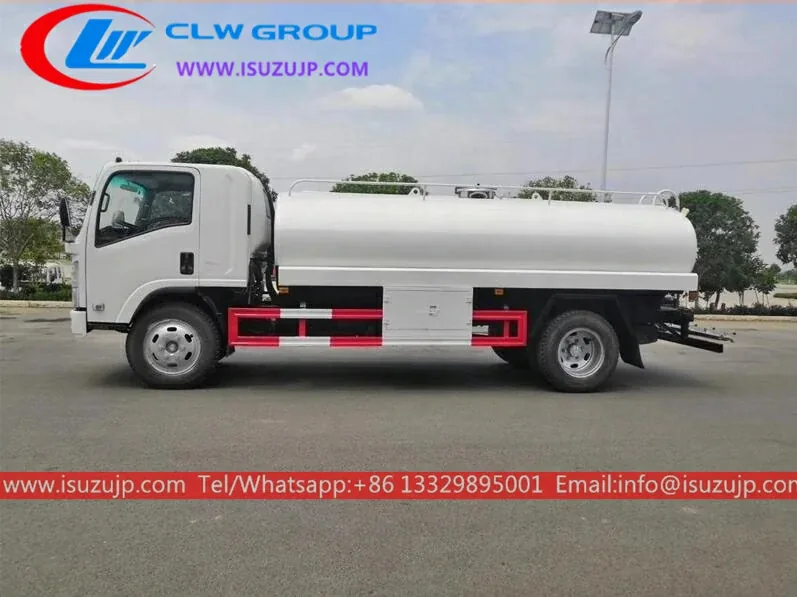

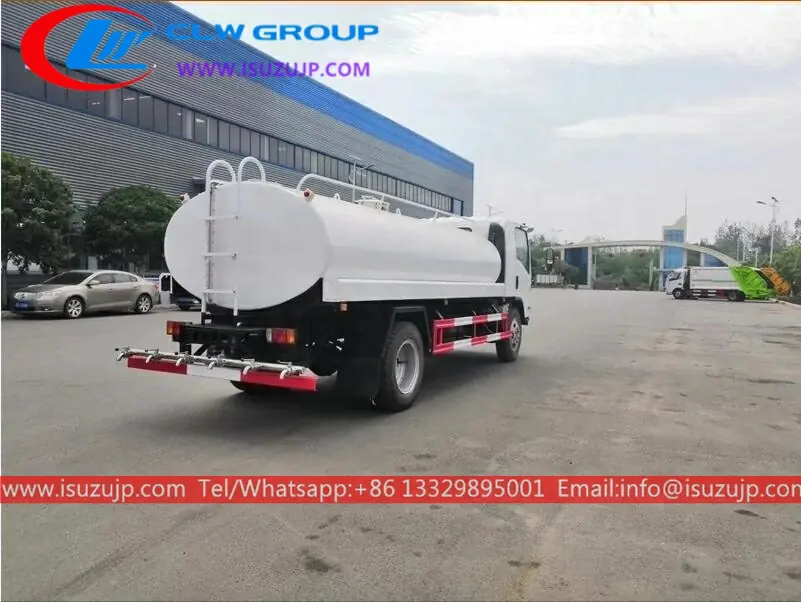

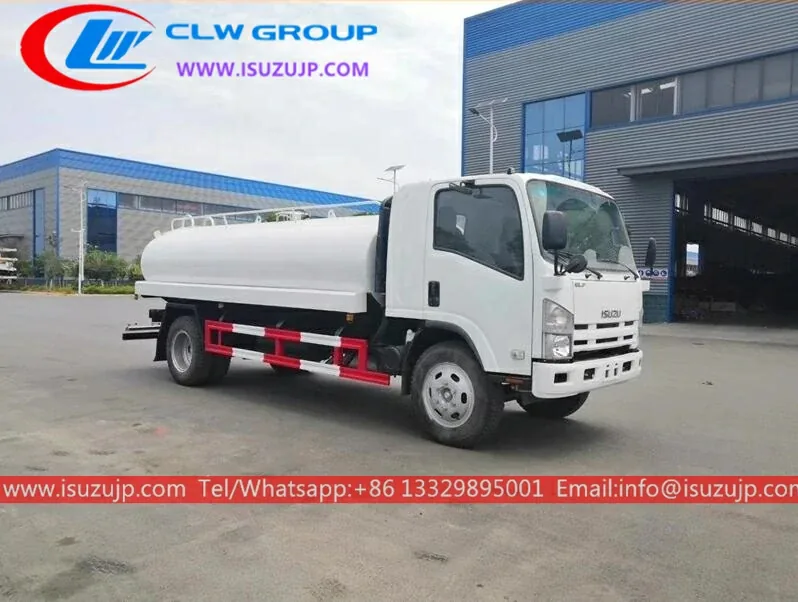

ISUZU NPR 10000liters Dairy Milk Delivery Truck for Sale
ISUZU ELF 700P left-hand drive model 4×2 chassis, MLD 6-shift manual gearbox, ISUZU 190HP engine. Standard two compartments, with heat preservation and cleaning device
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 190 HP (140KW)
- Overall Dimension
- 7600X2400X3000 mm
- GVW / Kerb Weight
- 13,800 kg / 6,300 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- 5-speed front, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 23 rows.
ISUZU NPR 10000liters Dairy Milk Delivery Truck Application
- Isuzu dairy milk delivery truck Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
- 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
- Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
- Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
- Optional compartments, installation of pumps, flowmeters, etc.
Advantage
- ISUZU chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Nice shape, rational structure
- Water pump super powerful, efficient pump in and out
- Strong, durable, perfect performance
- Prolonged service life
Specification
ISUZU NPR 10000liters dairy milk delivery truck for sale
| General | Vehicle Brand | CLW |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7600X2400X3000 mm | |
| GVW / Kerb Weight | 13,800 kg / 6,300 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With AC | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 HP (140KW) | |
| Displacement | 5199 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 5-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.50R16 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres ( 2,000 gallons) |
| Tank Material | Stainless Steel or Aluminum | |
| Pump | Stainless steel pump | |
| All standard accessories: English manual, tool kit | ||
| Optional | Tank material could be stainless steel, aluminum It can be divided into many compartments. | |
Tank Manufacturing Standards
- The liner is made of 3mm thick 304 food grade stainless steel, seamlessly welded and finely polished. The tank is equipped with a wave structure anti-wave plate, which has strong impact resistance.
- The PIC automatic cleaning system is used in the tank, and the cleaning device rotates 360 degrees in all directions. It can clean any dead corners in the tank to achieve the best cleaning effect. A special heat preservation milk storage tank. Insulation performance, hygiene standards can reach the domestic advanced level.
- The tank insulation layer uses 8cm thick polyurethane, the density reaches 32~35 kg/cubic, to ensure that the temperature rise and fall within 24 hours during transportation is less than or equal to 1 degree. Ensure the quality of fresh milk during transportation.
- The outer layer of the tank belongs to the protective layer of the thermal insulation layer, which is made of stainless steel plate, which is light-weight, light weight and good strength.
- There is a vent valve on the top of the tank to automatically adjust the opening to reduce the evaporation loss of the liquid and prevent the tank from deforming when positive and negative pressures are generated in the tank.
- It can transport and transport fresh milk, liquid food, purified water, edible oil and other media at the same time through sub-bins.
The tank body is composed of an inner tank, a heat preservation layer, and a heat preservation layer protection layer:
Milk Cooler Truck Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NPR 10000liters Dairy Milk Delivery Truck for Sale
What chassis is the ISUZU NPR 10000liters Dairy Milk Delivery Truck for Sale built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu milk truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other Isuzu Milk Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU NPR 10000liters Dairy Milk Delivery Truck for Sale
This build is listed as chassis ISUZU with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
