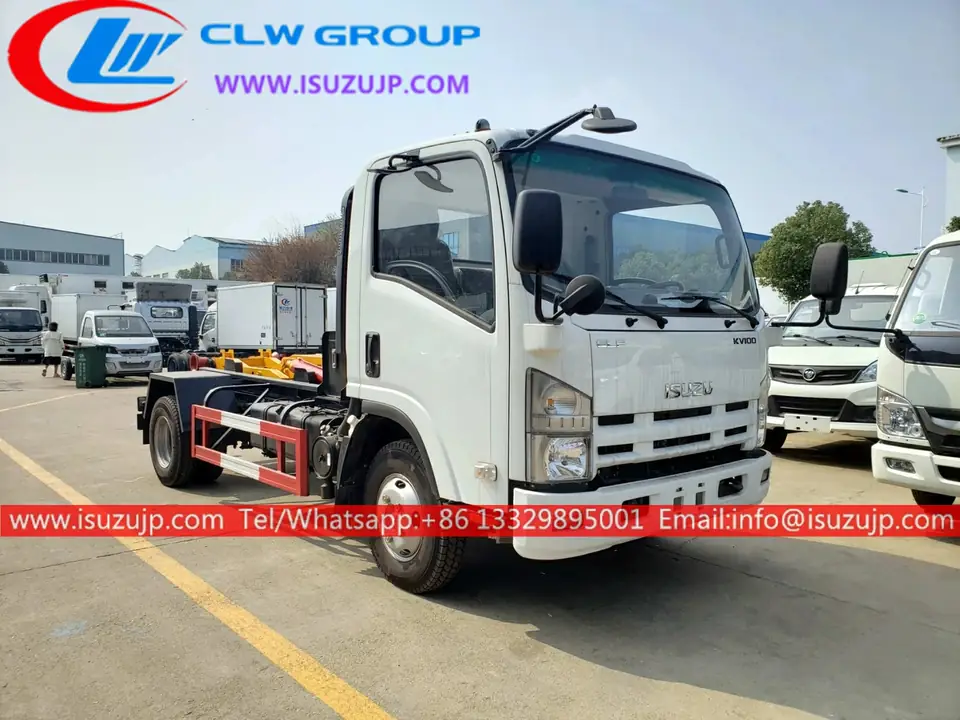

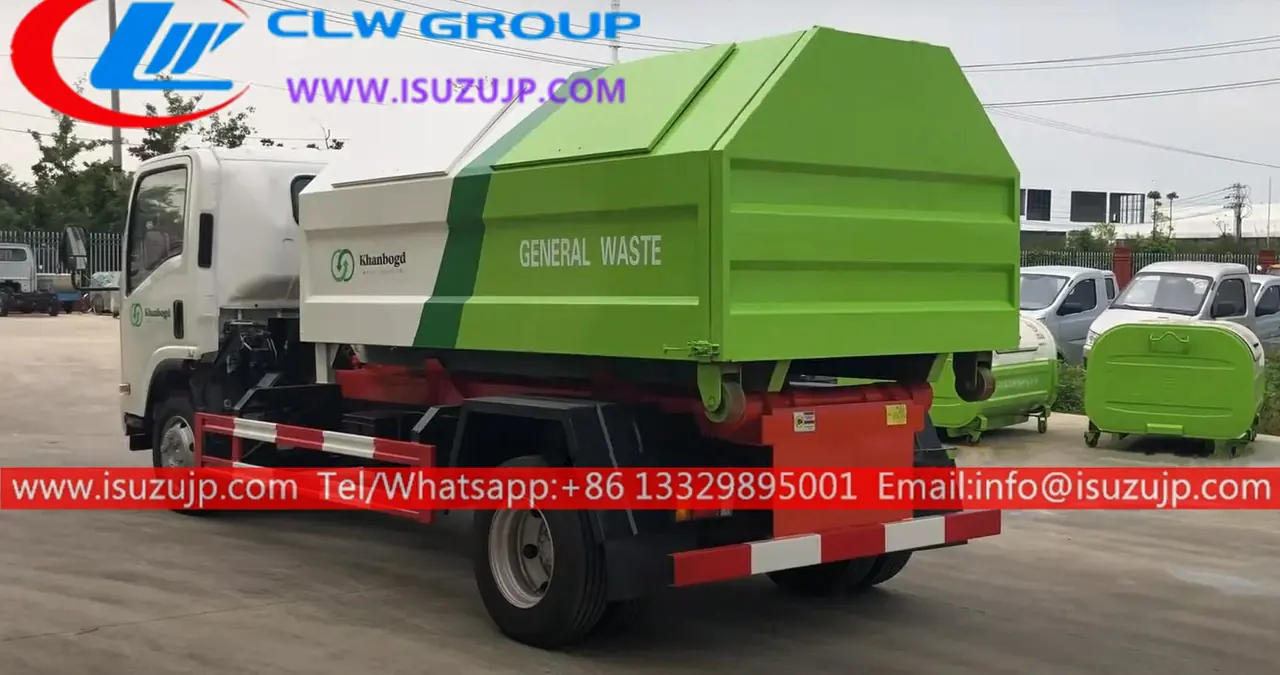

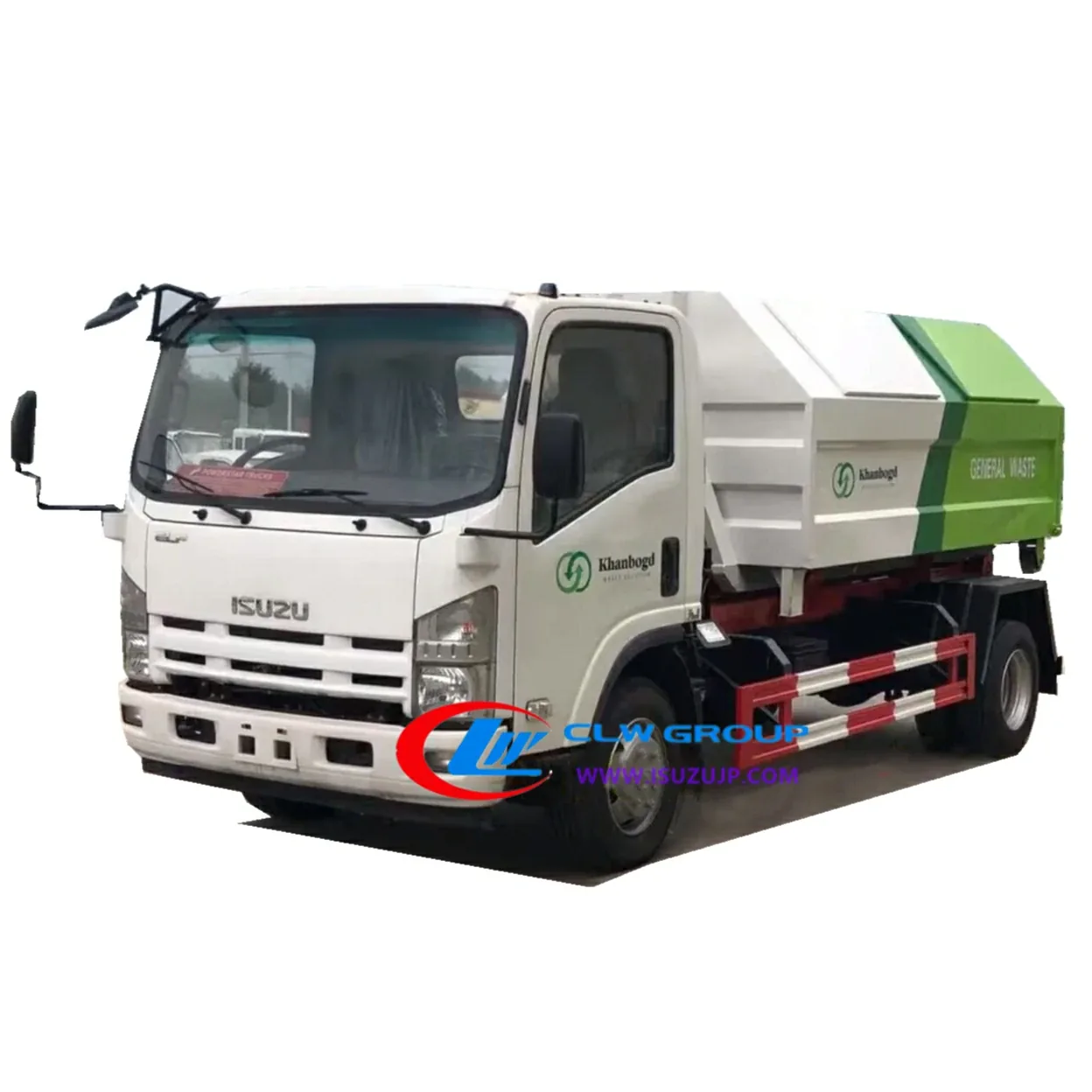

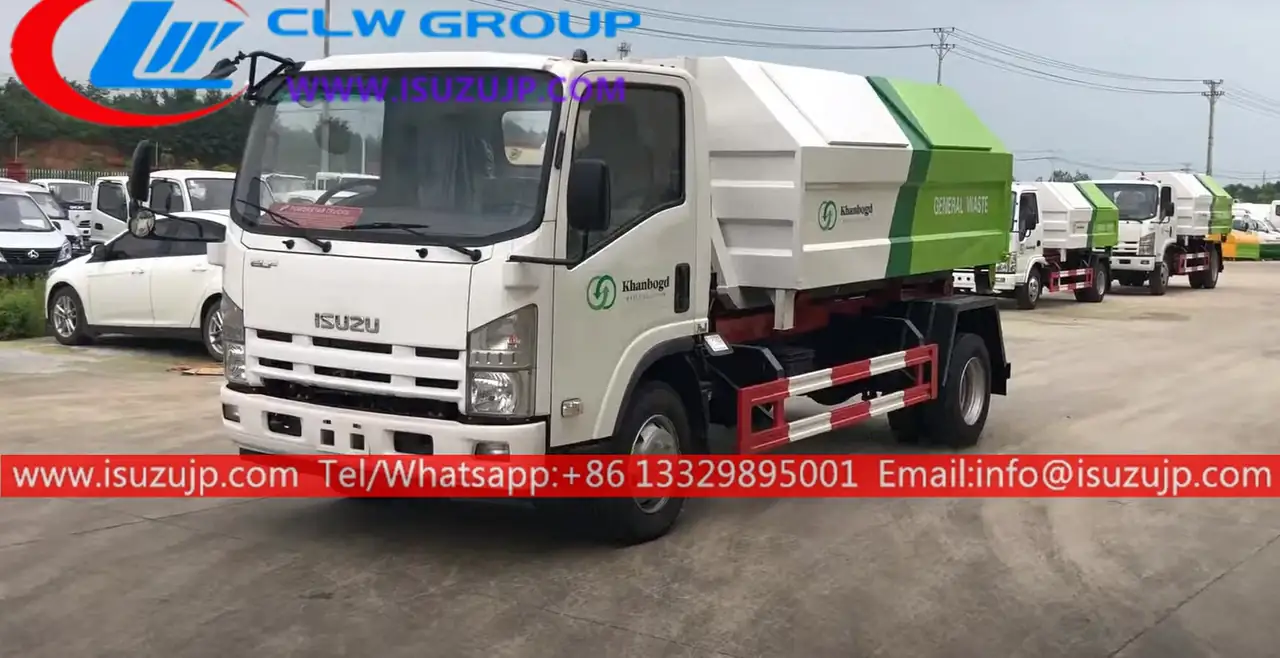

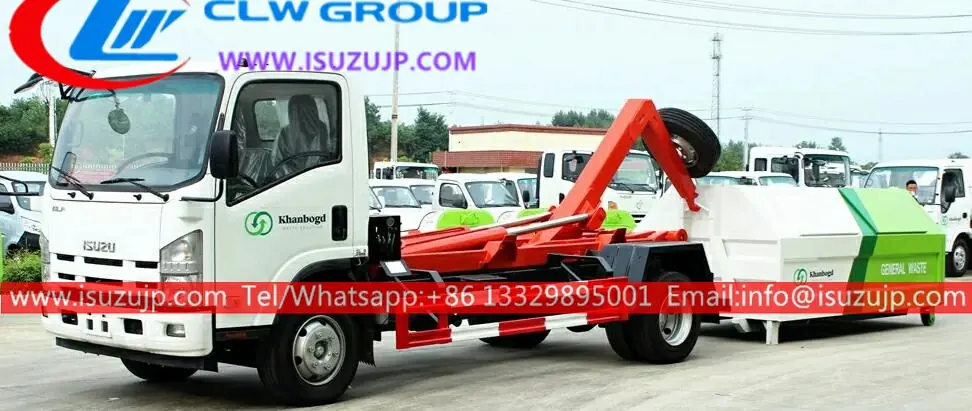

ISUZU Hook Loader Truck
ISUZU NPR 8 Ton Hook Loader Truck
4×2 ISUZU NPR 700P chassis, MLD 6-shift manual gearbox, 190HP diesel engine, high strength hook loader system, with all kinds of garbage container optional
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 190 HP (140 KW)
- Overall Dimension
- 7500X2300X2750 mm
- GVW / Kerb Weight
- 11,000kg / 5,800kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- MLD 6 speed levers with 1 reverse
- Emission
- Euro 4 or 5
Specification below is the factory table for this model, reproduced without edits. 30 rows.
ISUZU NPR 8 Ton Hook Loader Truck Description
- Isuzu hook loader truck is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.
- loading capacity can range from 1ton to 22tons, etc.
Advantage
- ISUZU NPR 700P chassis, perfect performance
- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve, and locking structure of container by hydraulic;
- A rear support device is available.
- Hook loader garbage container body capacity from 1 to 22 Cubic meters.
- Rational design of hook and locking structure, and truck more reliable.
- Optional Electrical Control in the cabin, easy operation, and easy maintenance.
- Various types of refuse container lifters are available.
Specification
ISUZU NPR 8 ton hook loader truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 7500X2300X2750 mm | |
| GVW / Kerb Weight | 11,000kg / 5,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro 4 or 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | MLD 6 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tire Specification | 7.50-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Body capacity | 8CBM capacity detachable container |
| Container material | Anti-corrosive steel | |
| Hydraulic system | Chinese top brand cylinders and matched valves | |
| Control Box | 1. Electric Control Box in Cabin 2. Hydraulic control valve at rear | |
| Self-discharge angle | ≥45 ° | |
| Discharging time | ≤45 s | |
| Lifting time | ≤45 s | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual | ||
| Optional | Back alarm and Camera can be equipped. Remote Control Box can be optional. Garbage container can be of stainless steel | |
Working Parameter
ISUZU NPR 8 Ton Hook Loader Truck Specification
| Box time | Less than 15 seconds | Roller material Cast iron or forged steel |
|---|---|---|
| Unboxing time | Less than 15 seconds | Control method Electronic control + manual |
| Dump time | Less than 10 seconds | Operating position Cab + car side |
Garbage Collection Vehicle Tools and Instructions
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Questions
Questions About The ISUZU NPR 8 Ton Hook Loader Truck
What chassis is the ISUZU NPR 8 Ton Hook Loader Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu hook loader truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
