ISUZU Fire Truck

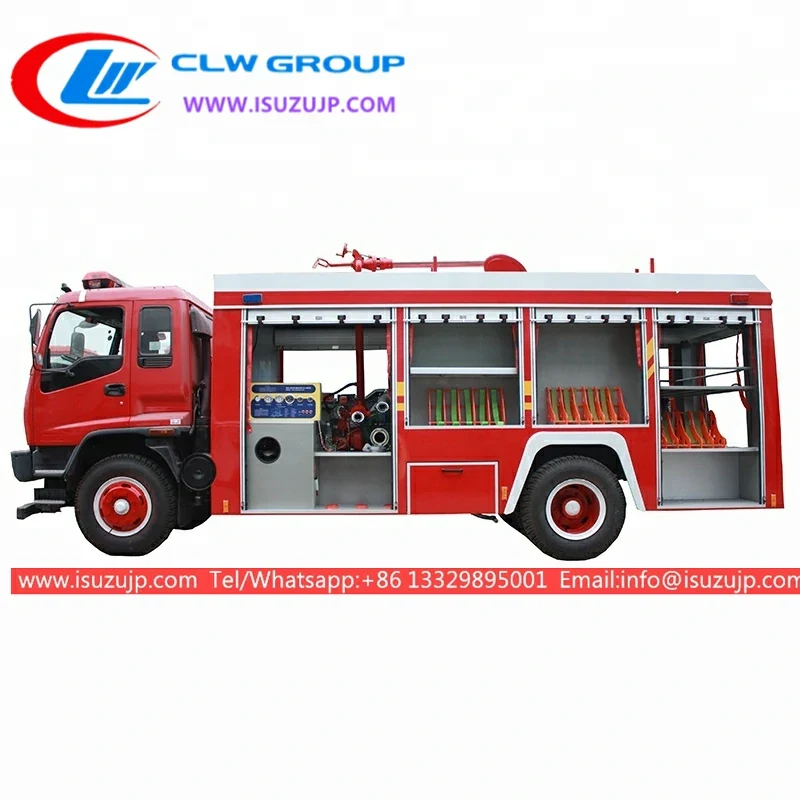

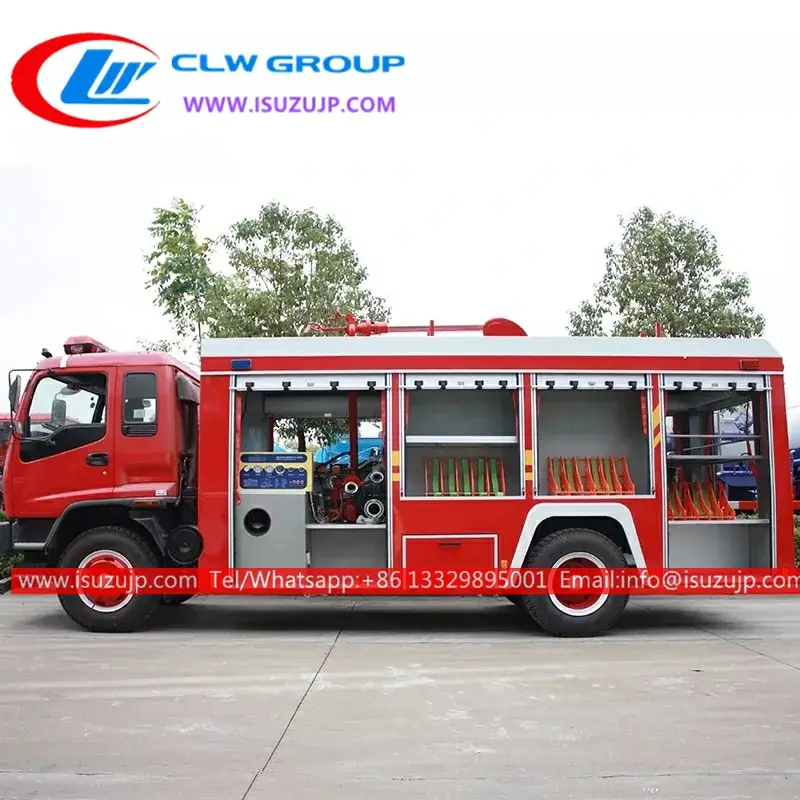

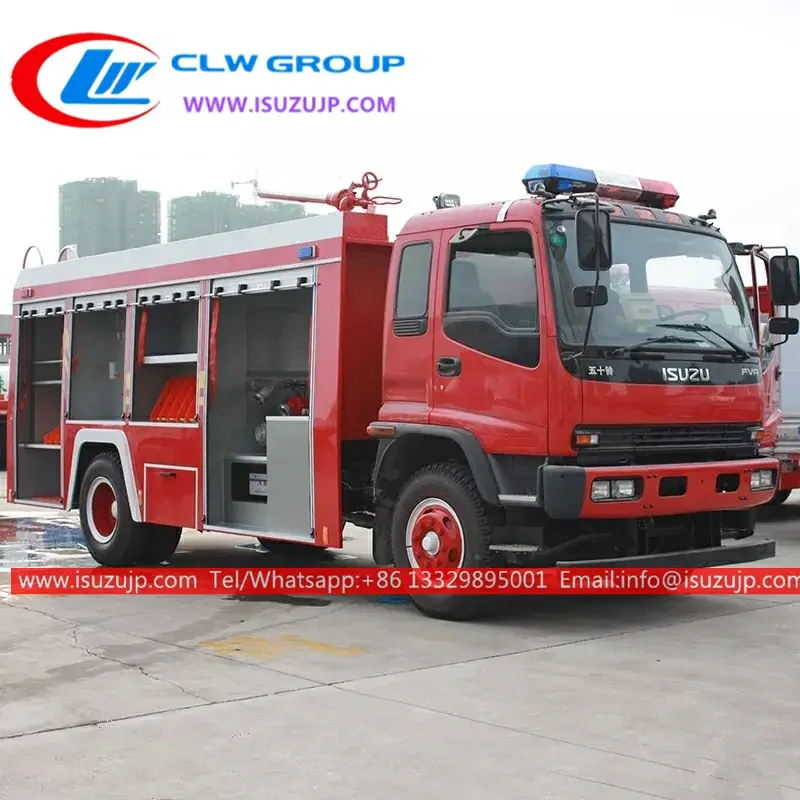

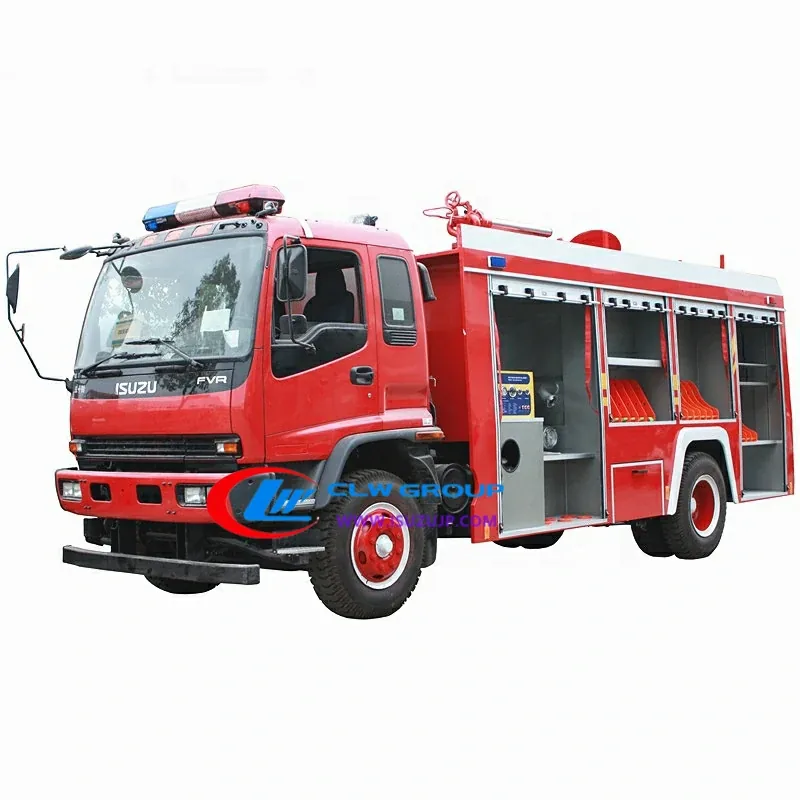

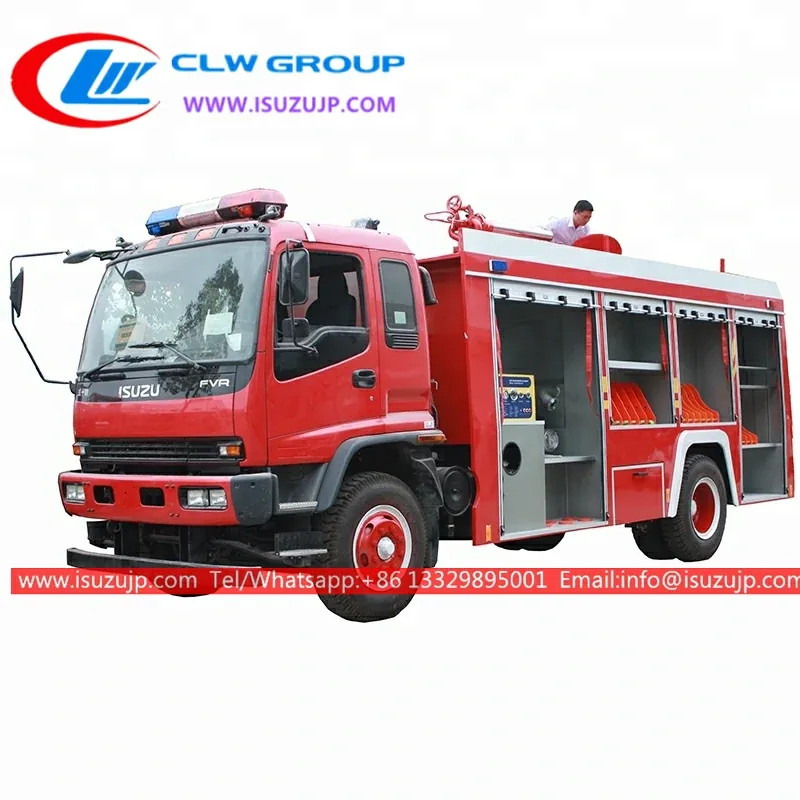

Japan ISUZU Medium Emergency Rescue Fire Department Truck
Isuzu FVR fire engine, Left Hand Drive model 4×2 chassis, 9 shift manual gearbox, 240 HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU
- Power
- 240 HP (177 KW)
- Overall Dimension
- 8490X2500X3615 mm
- GVW / Kerb Weight
- 12,400kg / 11,950kg
- Drive Type
- 4X2, (left hand drive)
- Transmission
- Manual 6-shift speed levers with 1 reverse
- Emission
- Euro 4 / 5
Specification below is the factory table for this model, reproduced without edits. 55 rows.
Japan Isuzu Medium Emergency Rescue Fire Department Truck Description
- ISUZU Medium Emergency Rescue fire department truck also called fire fighting tanker, fire appliance, fire fighting engine, fire-extinguishing water truck, service truck, fire rescue truck, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage
- 100% custom-made
- ISUZU FVR heavy-duty Chassis, Durable & Performance.
- ISUZU engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification
Japan Isuzu Medium Emergency Rescue fire department truck
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 8490X2500X3615 mm | |
| GVW / Kerb Weight | 12,400kg / 11,950kg | |
| Cab | Cab Capacity | 5 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 240 HP (177 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro 4 / 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | Manual 6-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4500 mm / 2 | |
| Tire Specification | 11.00R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Crane | 5Tons |
| The generator | SHT115000 | |
| Lifting lamp | YZ1004 | |
| Traction winch | N1200 | |
| PTO | SQ50 | |
| Electronic alarm | 1.2 m long | |
| Control panel | English or Your language | |
| All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… | ||
| Optional | Back alarm and Camera can be equipped. Standard carbon steel, stainless steel optional. USA or Germany fire pump can be optional | |
Fire Equipment Table
Japan ISUZU Medium Emergency Rescue Fire Department Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | straw | 125×4 meters 2 root Threaded |
| 2 | Water filter | FLF125 1 Piece Threaded |
| 3 | Trap | FII80/65×3-1.6 1 Piece Internal button |
| 4 | Water trap | JII125/65×2-1.0 1 Piece Internal button |
| 5 | Hose | 13-65-20 6 plate Low pressure; |
| 6 | Hose | 13-80-20 6 plate Low pressure; |
| 7 | Reducing interface | KJ65/80 2 Piece Internal button |
| 8 | Water-retaining cloth | DT-SB 4 Piece Internal button |
| 9 | Hose hook | 4 Piece |
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 1 Piece |
| 11 | Underground hydrant wrench | Long 860 1 Piece |
| 12 | Suction pipe wrench | FS100 2 Piece |
| 13 | DC switch water gun | QZG3.5/7.5; 65 1 support Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 1 support Low pressure; |
| 15 | Fire extinguisher | 3KG 1 With |
| 16 | Fire waist axe | Length 390; GF-285 1 Piece |
| 17 | Rubber hammer | 1 Piece |
| 18 | Rechargeable portable lighting | 1 Piece |
Optional Fire Equipment
Japan ISUZU Medium Emergency Rescue Fire Department Truck Specification
| Serial number | name | specification Quantity unit Remarks |
|---|---|---|
| 1 | Automatic charging device | 12V 1 set |
| 2 | Air backrest | 3 set |
| 3 | Air breathing apparatus | Number of members set |
| 4 | Hose bridge | rubber 2 vice |
| 5 | Telescopic ladder | 1 vice |
| 6 | Hand lift the pump | 1 station |
| 7 | Breaking tools | 1 set |
| 8 | Other fire equipment | |
Questions
Questions About The Japan ISUZU Medium Emergency Rescue Fire Department Truck
What chassis is the Japan ISUZU Medium Emergency Rescue Fire Department Truck built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu fire truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
