Main photo
ISUZU Dump Truck

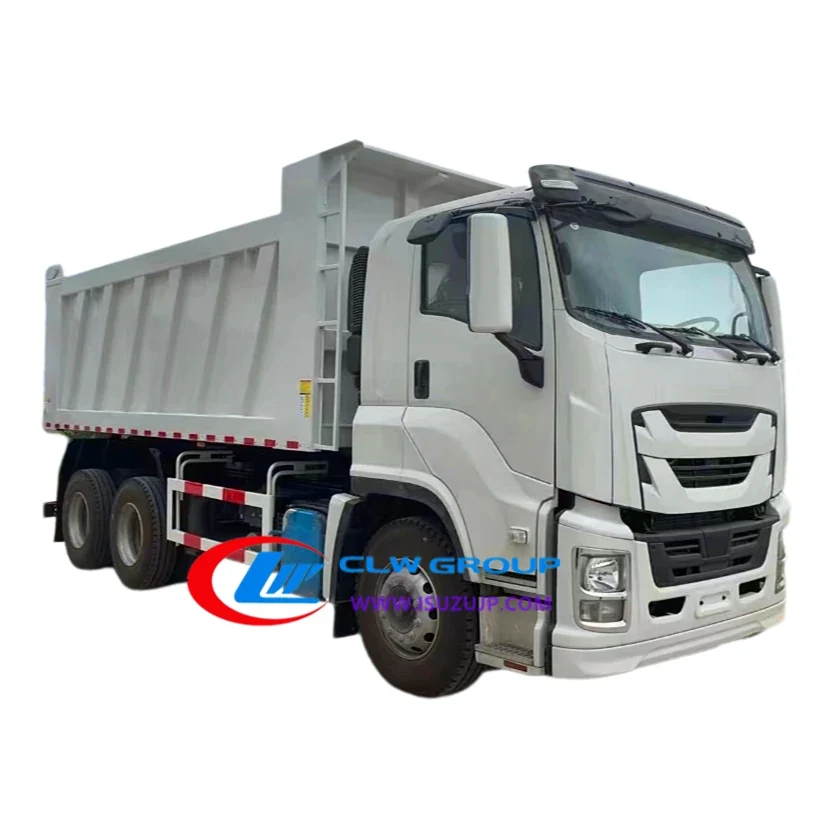

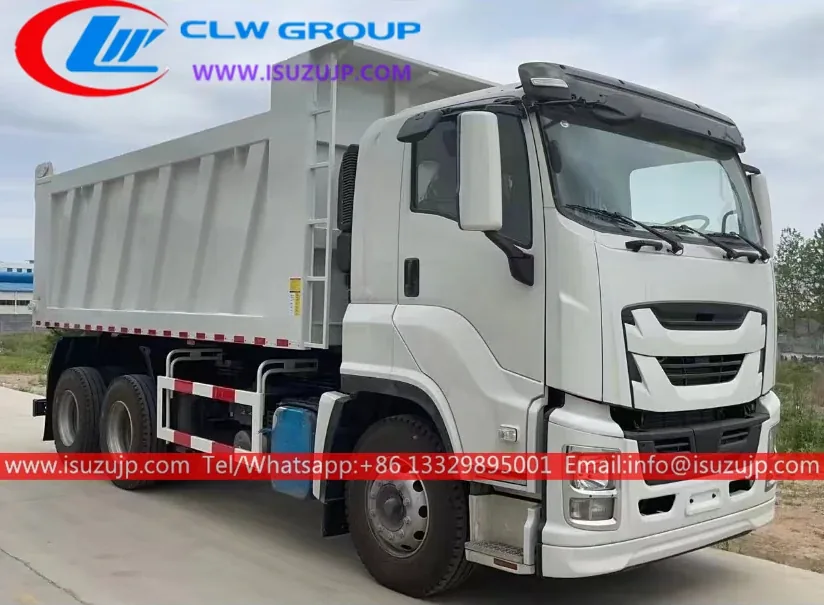

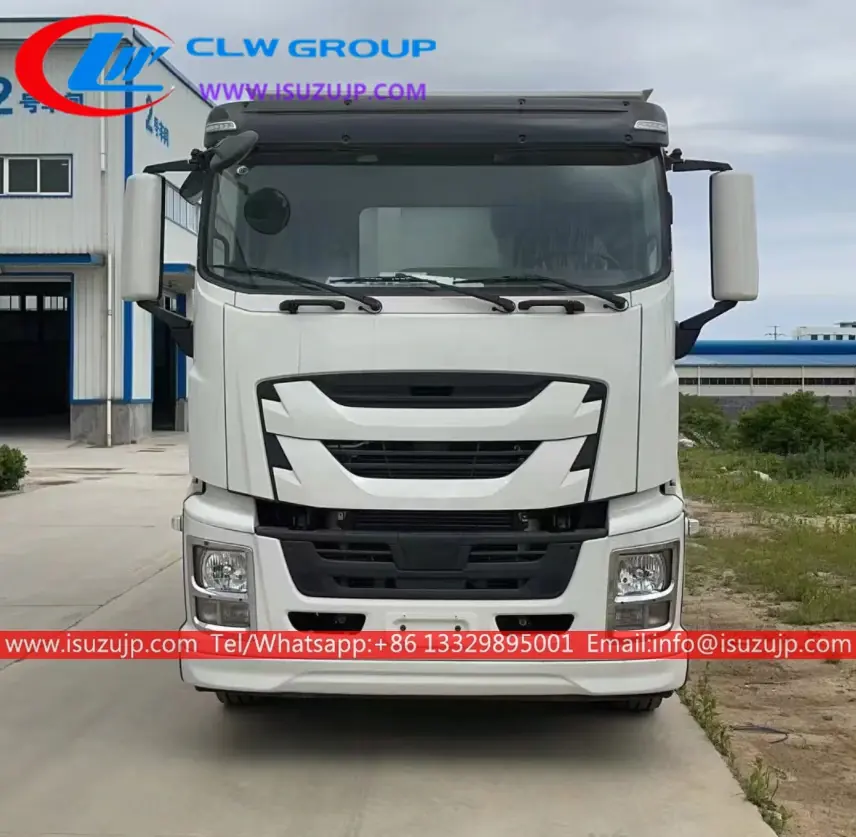

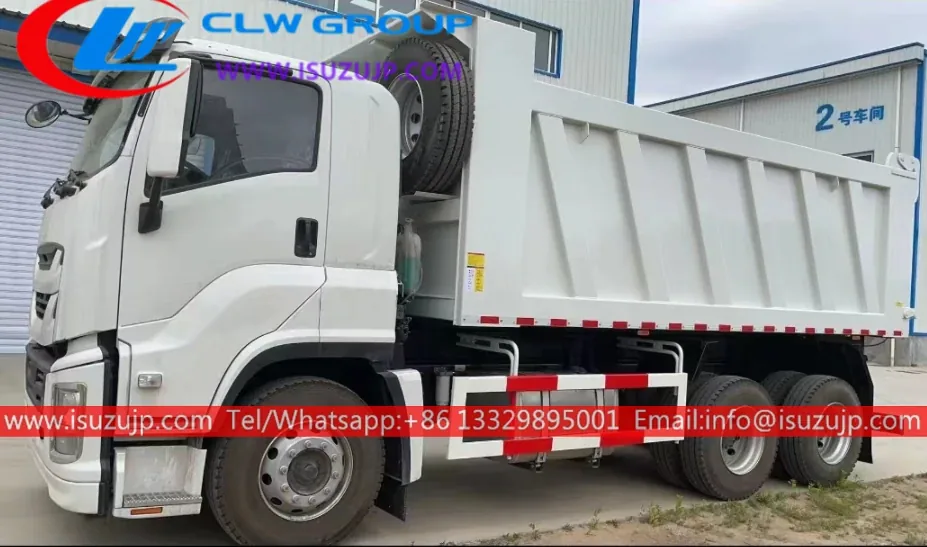

10 Wheel ISUZU GIGA 20 to 24cbm Dump Garbage Truck
10 wheel ISUZU GIGA heavy duty chassis, Fast 12-shift manual gearbox, ISUZU 380HP diesel engine, high strength steel tipper body
- Chassis
- ISUZU GIGA
- Engine
- ISUZU
- Power
- 380 HP (280 KW)
- Overall Dimension
- 9100X2500X3500 mm
- GVW / Kerb Weight
- 25,000kg / 12,250kg
- Drive Type
- 6X4, (left hand drive)
- Transmission
- FAST 12 speed levers with 2 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 27 rows.
10 Wheel ISUZU GIGA 20 to 24cbm Dump Garbage Truck Description
- Isuzu 20-24ton dump truck tipper also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

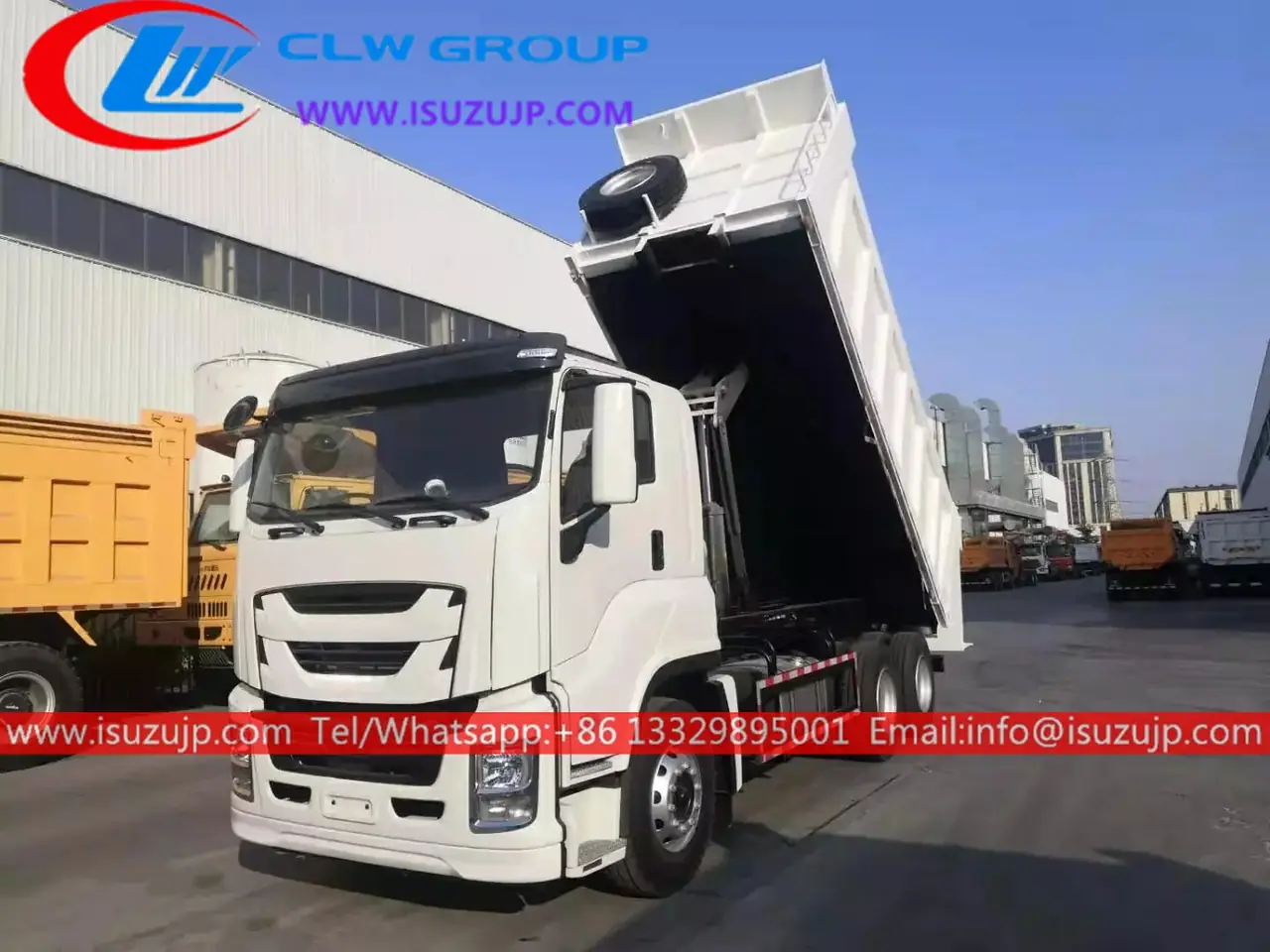

- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- 6X4 ISUZU GIGA chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification
10 wheel ISUZU GIGA 20 to 24cbm dump garbage truck
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU GIGA | |
| Overall Dimension | 9100X2500X3500 mm | |
| GVW / Kerb Weight | 25,000kg / 12,250kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 380 HP (280 KW) | |
| Displacement | 9839 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6X4, (left hand drive) |
| Transmission | FAST 12 speed levers with 2 reverse | |
| Wheelbase/No. of axle | 3985+1375 mm / 3 | |
| Tire Specification | 11.00R20 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Pay loading capacity | 25 Tons |
| Cargo body | 5600*2450*1200 | |
| Thickness of cargo body | Bottom 8mm Side 6mm | |
| Cylinder type | T Type or Domestic 180 or HYVA 150 | |
| Lifting system | Middle or Front | |
| Control | in the cabin | |
| Color & LOGO | According to wish | |
| All standard accessories: All steel body with drop sides. Auto release removable trilgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | ** Back alarm and Camera can be equipped. ** Other tipper body can be choose. ** Other material and plate thickness can be choose. | |
Questions
Questions About The 10 Wheel ISUZU GIGA 20 to 24cbm Dump Garbage Truck
What chassis is the 10 Wheel ISUZU GIGA 20 to 24cbm Dump Garbage Truck built on?
It is built on ISUZU GIGA. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 10 Wheel ISUZU GIGA 20 to 24cbm Dump Garbage Truck
This build is listed as chassis ISUZU GIGA with engine ISUZU. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
