Main photo
ISUZU Dump Truck

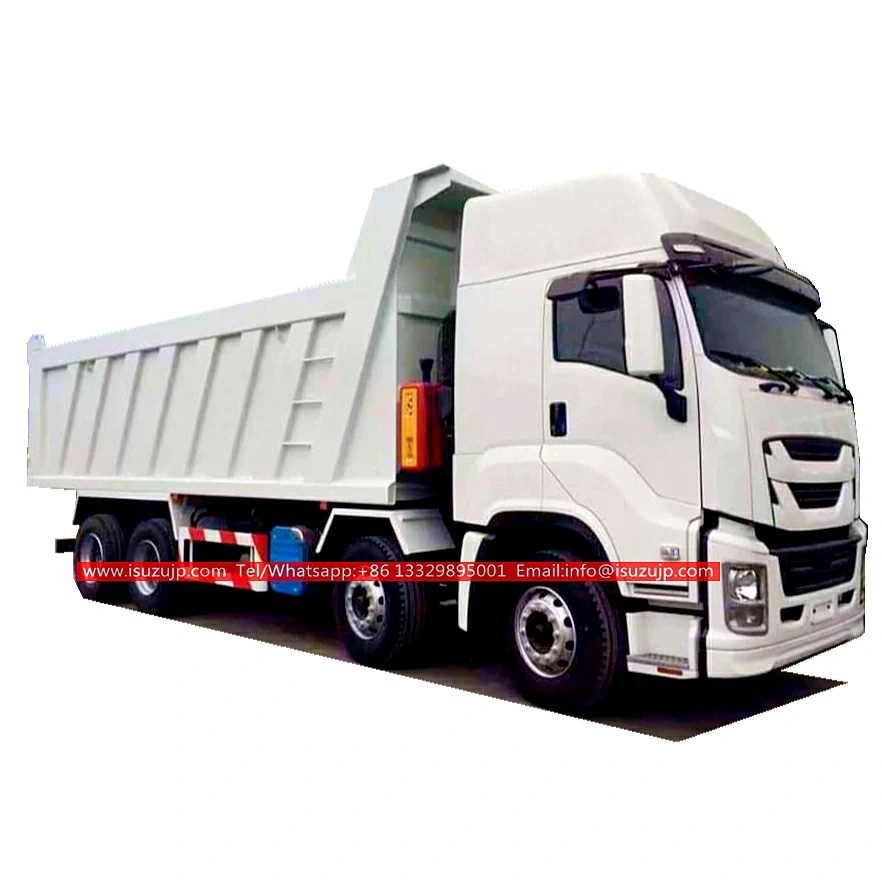

12 Wheel ISUZU GIGA 40T Tipper Lorry for Sale
12 wheeler ISUZU GIGA heavy duty chassis, Fast 12-shift manual gearbox, ISUZU 450HP diesel engine, high strength steel tipper body
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 450 Hp (331 KW)
- Overall Dimension
- 9900x2550x3600mm
- GVW / Kerb Weight
- 35,000 kg / 16,800 kg
- Drive Type
- 8X4 left-hand drive
- Transmission
- 12-speed front, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 23 rows.
12 Wheel Isuzu Giga 40T Tipper Lorry Description
- Isuzu 40T tipper lorry also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage
- 8X4 ISUZU GIGA chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
12 wheel Isuzu Giga 40T tipper lorry for sale
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 9900x2550x3600mm | |
| GVW / Kerb Weight | 35,000 kg / 16,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 450 Hp (331 KW) | |
| Displacement | 12089 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 8X4 left-hand drive |
| Transmission | 12-speed front, 1 reverse | |
| Wheelbase/No. of axle | 1800+3320+1300 mm / 4 | |
| Tyre Specification | 11.00R20 | |
| Tire Number | 12 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Volume | 30 m³ |
| Box Dimension | 6500X2300X1400 mm | |
| Box Thickness | Sideboard: 8 mm; Floor: 10 mm | |
| All other standard accessories: Tool kit, English manual… | ||
| Optional | Box thickness could be nominated. Box height could be nominated. Tip way: back or side. | |
Questions
Questions About The 12 Wheel ISUZU GIGA 40T Tipper Lorry for Sale
What chassis is the 12 Wheel ISUZU GIGA 40T Tipper Lorry for Sale built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
