Main photo
ISUZU Dump Truck

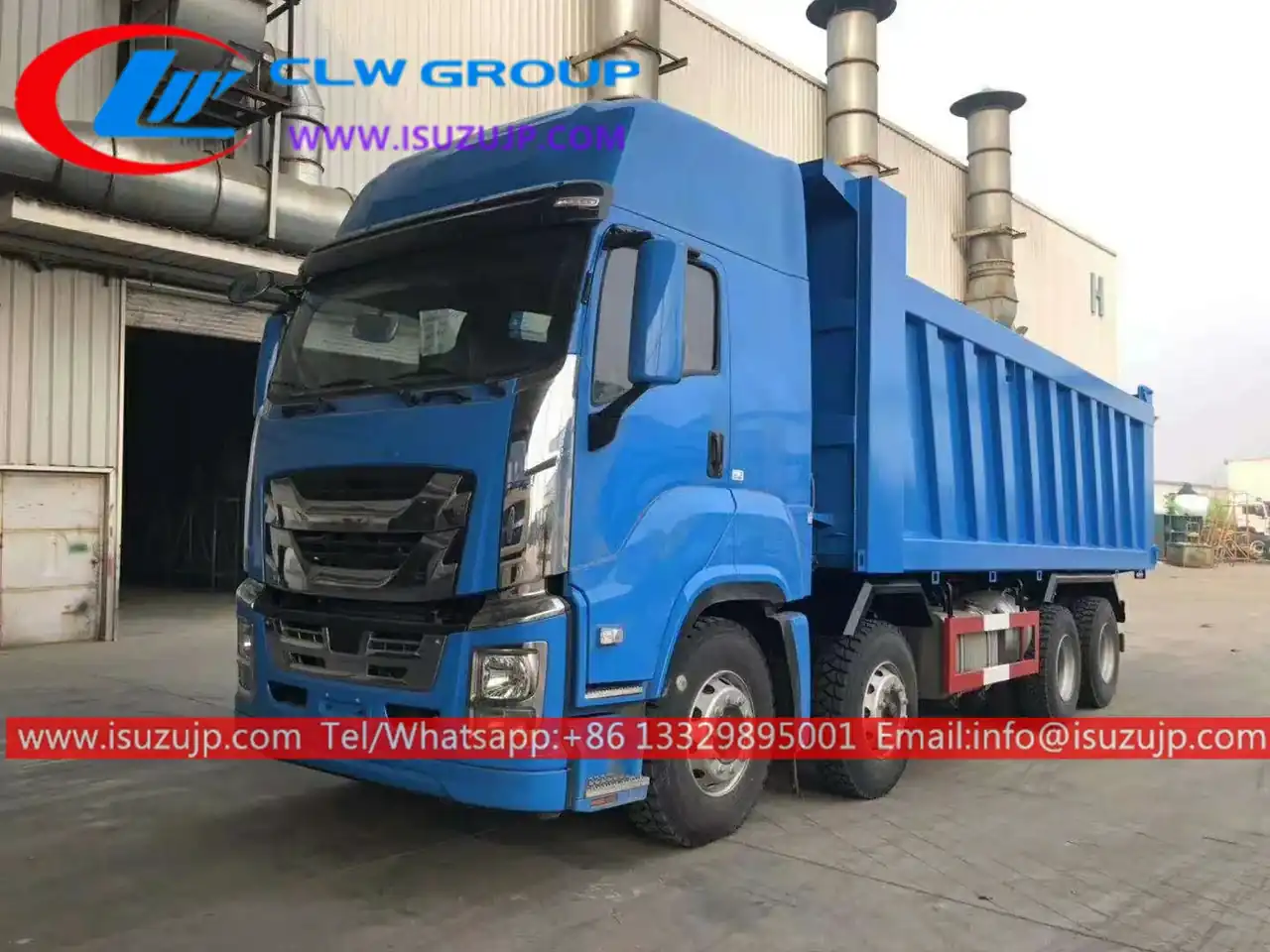

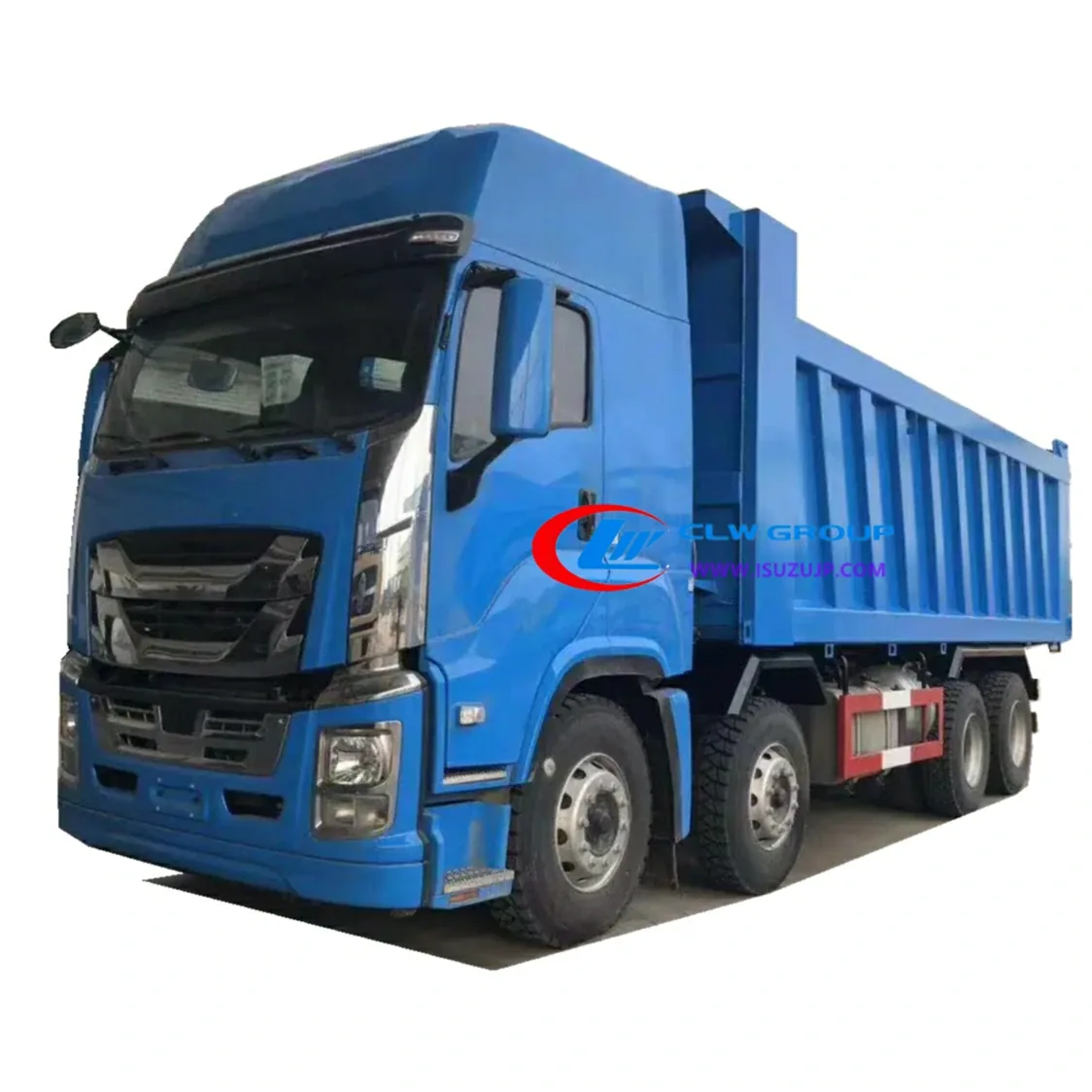

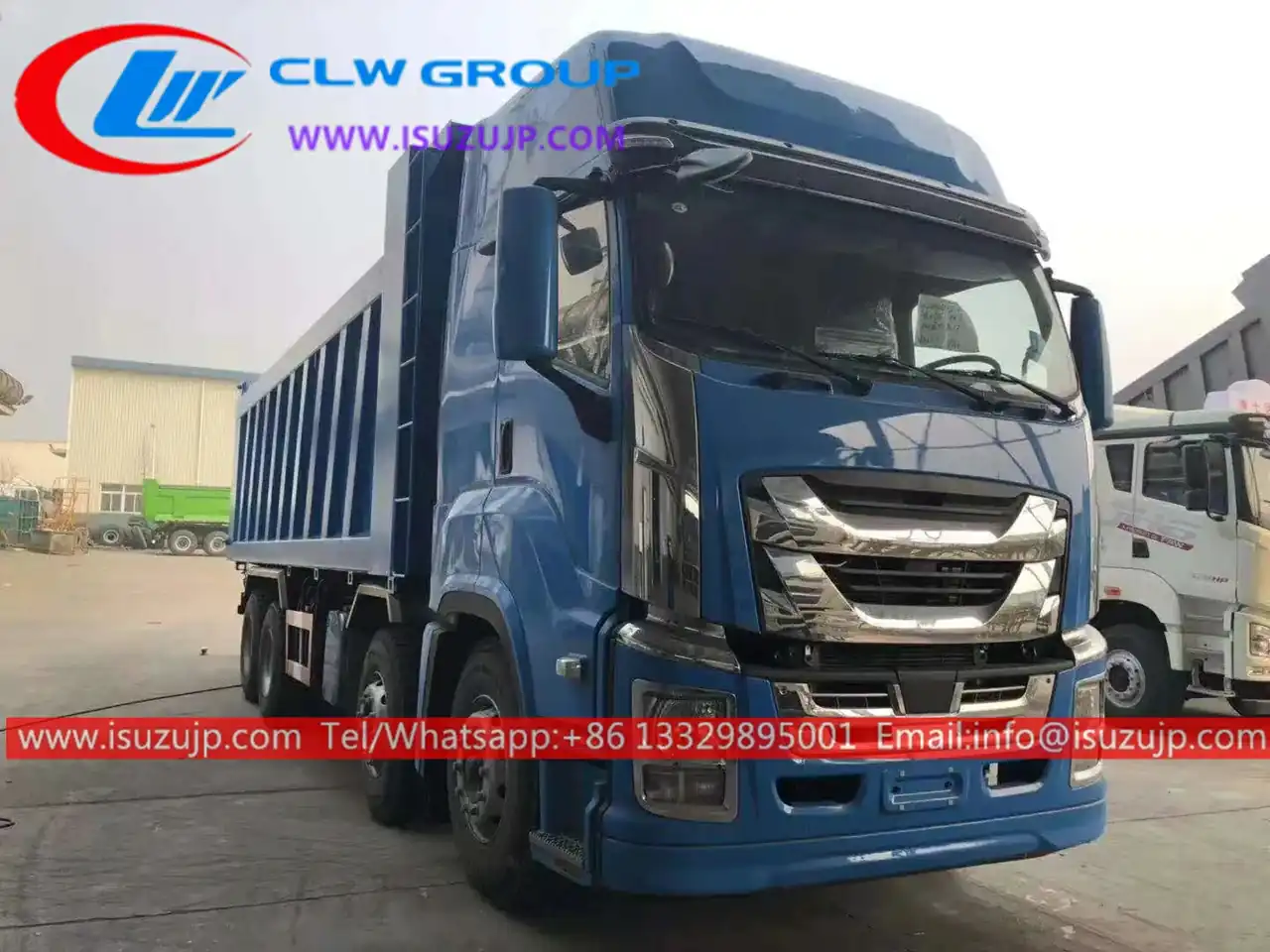

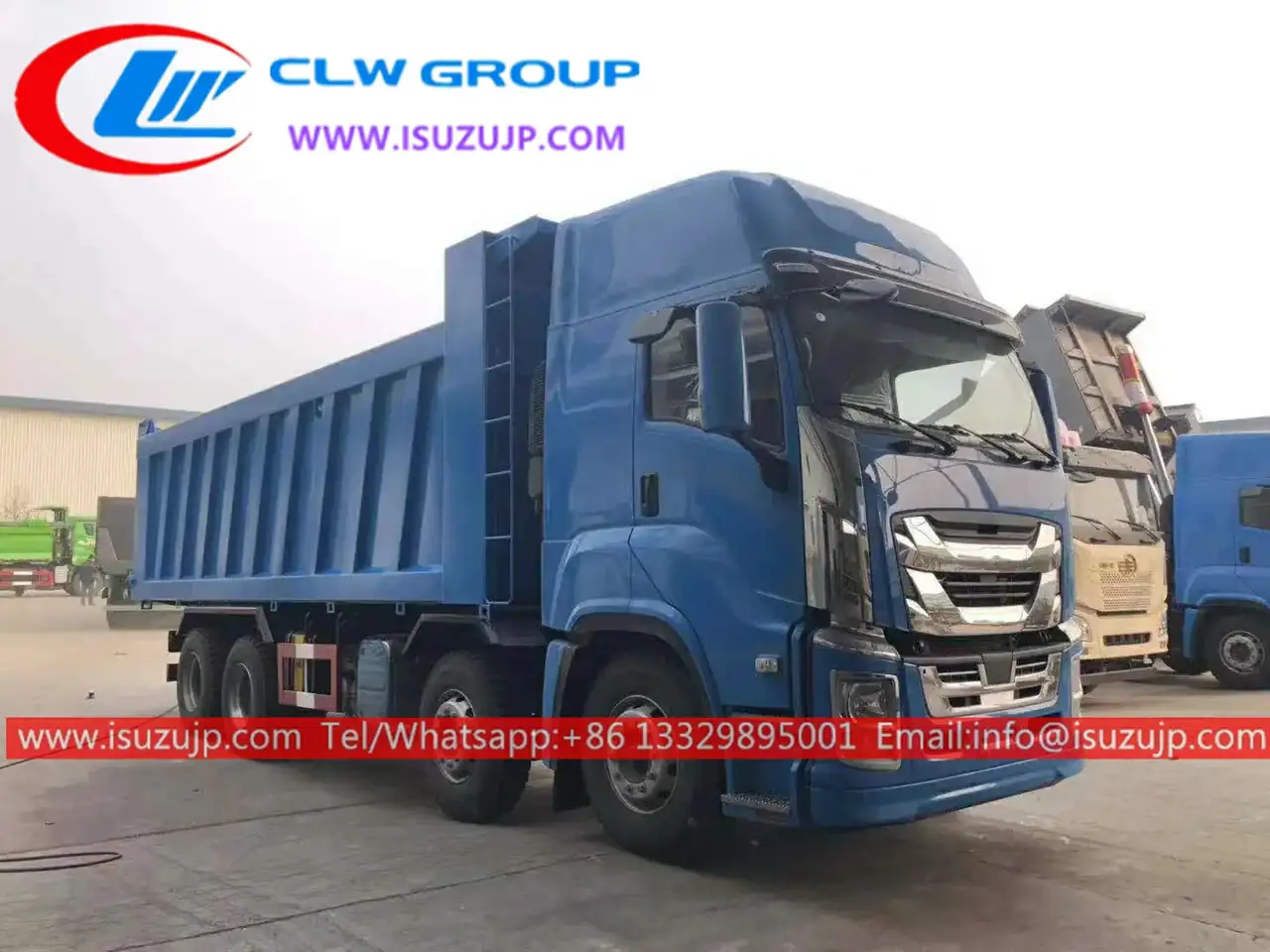

12 Wheeler ISUZU GIGA Forward Tipper Truck
460HP Isuzu GIGA 12wheels dump gravel truck chassis, Fast 12-shift manual gearbox, high strength steel tipper body
- Axle Loads:
- 7000/7000/26000
- Capacity
- 400L
- Product Origin
- China
- Body Size
- 10200X2550X3800 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 32 rows.
12 Wheeler Isuzu GIGA Forward Tipper Truck Description
- Isuzu GIGA forward tipper truck is also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage
- 8X4 ISUZU GIGA chassis, perfect performance
- 6HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
12 Wheeler ISUZU GIGA Forward Tipper Truck Specification
| Vehicle Model | 12 wheeler Isuzu GIGA forward tipper truck | |
|---|---|---|
| Vehicle Dimensions and Parameters | Overall Dimension(L x W x H) | 10094x2490x3730mm |
| Wheelbase: | 1850+4575+1370mm | |
| Front Wheel Distance: | 2060/2060mm | |
| Rear Wheel Distance: | 1855/1855mm | |
| Front/Rear Suspension | 1370/2120mm | |
| Weights and Capacities | Curb Weight: | 10450kg |
| GVW: | 40000kg | |
| Axle Loads: | 7000/7000/26000 | |
| Engine | Engine Model: | 6WG1-TCG51 |
| Max output: | 338Kw | |
| Displacement: | 15681ml | |
| Horsepower: | 460Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Cabin | Number of Seats: | 2 |
| Cabin Type | Standard Roof 1 Berth | |
| Chassis | Drive Type: | 8×4 |
| Tires: | 13(Including Spare Tire） | |
| Fuel Tank | Capacity | 400L |
| Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS | |
| 4 | Tubeless Tire | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | Driving Data Recorder | |
| 10 | Widened Bumper | |
| Tops Parameters | Dump Body Parameter | 7300x2300x1800mm |
| Hydraulic Cylinder | HYVA | |
| Thickness of the dump body | Bottom 8mm, Side 6mm |
Questions
Questions About The 12 Wheeler ISUZU GIGA Forward Tipper Truck
What chassis is the 12 Wheeler ISUZU GIGA Forward Tipper Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Axle Loads: 7000/7000/26000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The 12 Wheeler ISUZU GIGA Forward Tipper Truck
This build is listed as axle loads: 7000/7000/26000 with capacity 400L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
