- 6X4 ISUZU FVZ 20 Ton Sand Dump Truck Tipper
Main photo
ISUZU Dump Truck

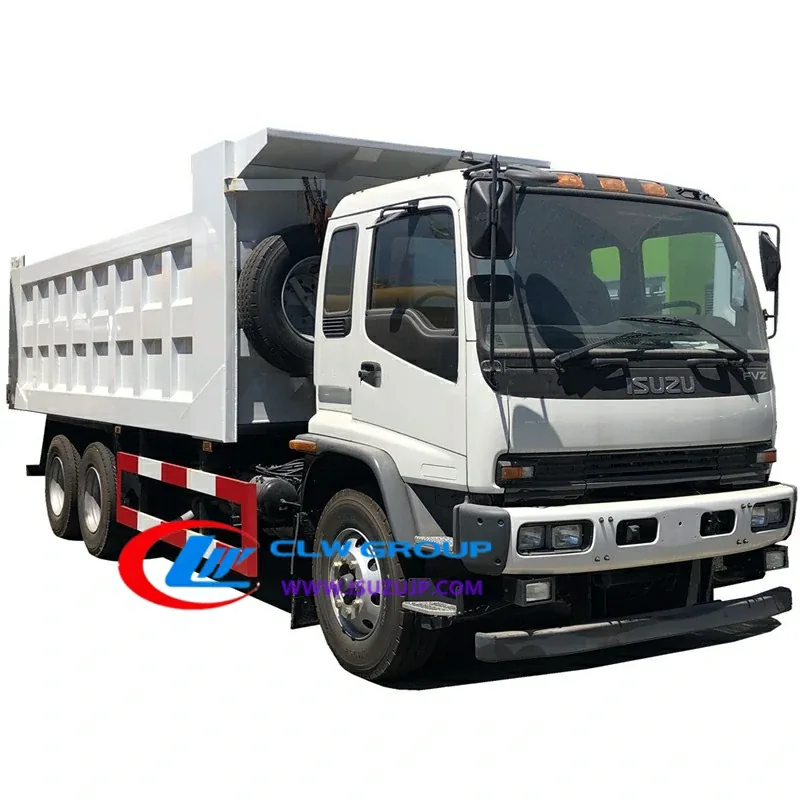

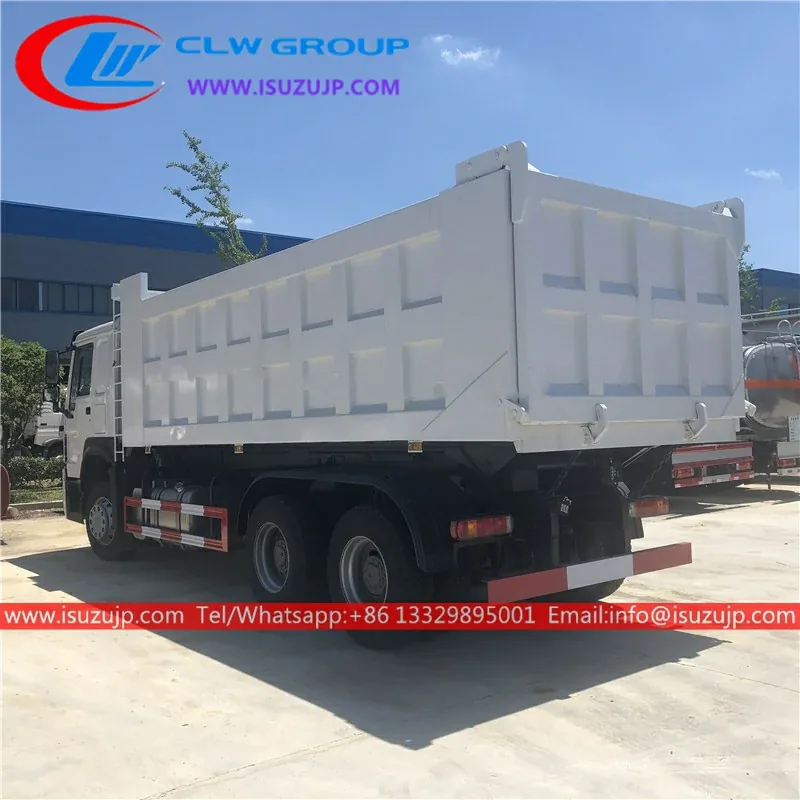

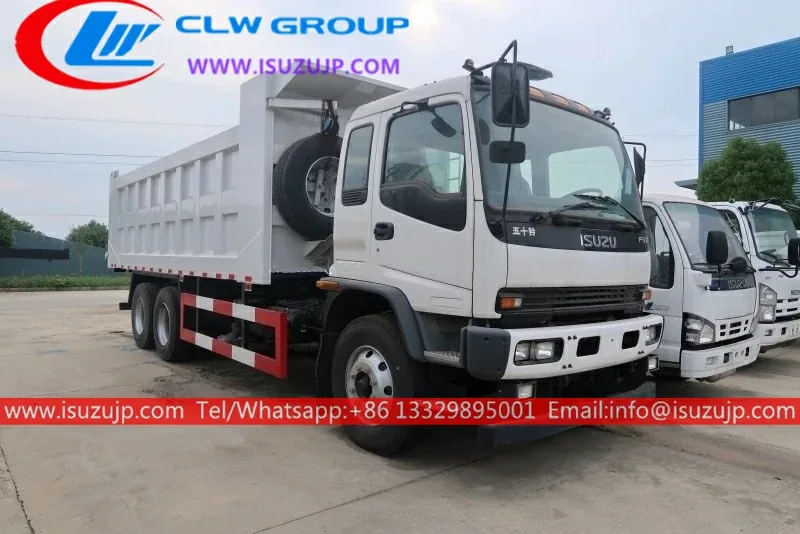

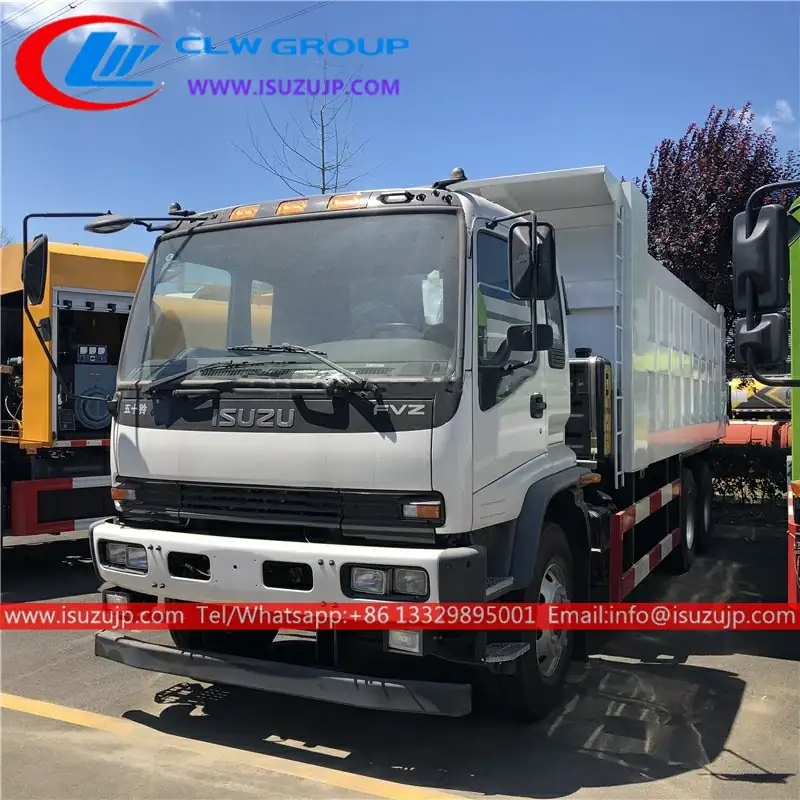

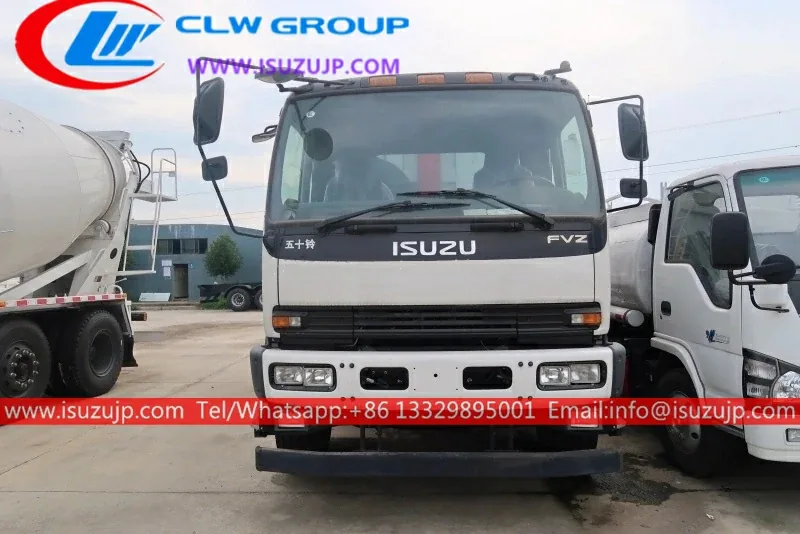

6X4 ISUZU FVZ 20 Ton Sand Dump Truck Tipper
10 wheel ISUZU FVZ heavy duty chassis, Fast 9-shift manual gearbox, ISUZU 300HP diesel engine, high strength steel tipper body
- Chassis
- ISUZU FVZ
- Engine
- ISUZU
- Power
- 300 HP (220 KW)
- Overall Dimension
- 8500X2500X3500 mm
- GVW / Kerb Weight
- 25,000kg / 12,250kg
- Drive Type
- 6X4, (left hand drive)
- Transmission
- FAST 9 speed levers with 1 reverse
- Emission
- Euro 5
Specification below is the factory table for this model, reproduced without edits. 27 rows.
6X4 ISUZU FVZ 20 Ton Sand Dump Truck Tipper Description
- Isuzu 20m3 dump truck tipper also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- ISUZU FTR chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- Strong, durable, perfect performance
Specification
6X4 ISUZU FVZ 20 ton sand dump truck tipper (18M3-24M3)
| General | Vehicle Brand | CHENGLI |
|---|---|---|
| Chassis Brand | ISUZU FVZ | |
| Overall Dimension | 8500X2500X3500 mm | |
| GVW / Kerb Weight | 25,000kg / 12,250kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 300 HP (220 KW) | |
| Displacement | 7790 ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 6X4, (left hand drive) |
| Transmission | FAST 9 speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4000+1300 mm / 3 | |
| Tire Specification | 11.00R20 | |
| Tire Number | 10 tires and 1 spare tire | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Pay loading capacity | 20 Tons |
| Cargo body | 5600*2450*1200 | |
| Thickness of cargo body | Bottom 8mm Side 6mm | |
| Cylinder type | T Type or Domestic 180 or HYVA 150 | |
| Lifting system | Middle or Front | |
| Control | in the cabin | |
| Color & LOGO | According to wish | |
| All standard accessories: All steel body with drop sides. Auto release removable trilgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… | ||
| Optional | ** Back alarm and Camera can be equipped. ** Other tipper body can be choose. ** Other material and plate thickness can be choose. | |
Questions
Questions About The 6X4 ISUZU FVZ 20 Ton Sand Dump Truck Tipper
What chassis is the 6X4 ISUZU FVZ 20 Ton Sand Dump Truck Tipper built on?
It is built on ISUZU FVZ. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
