Main photo
ISUZU Dump Truck

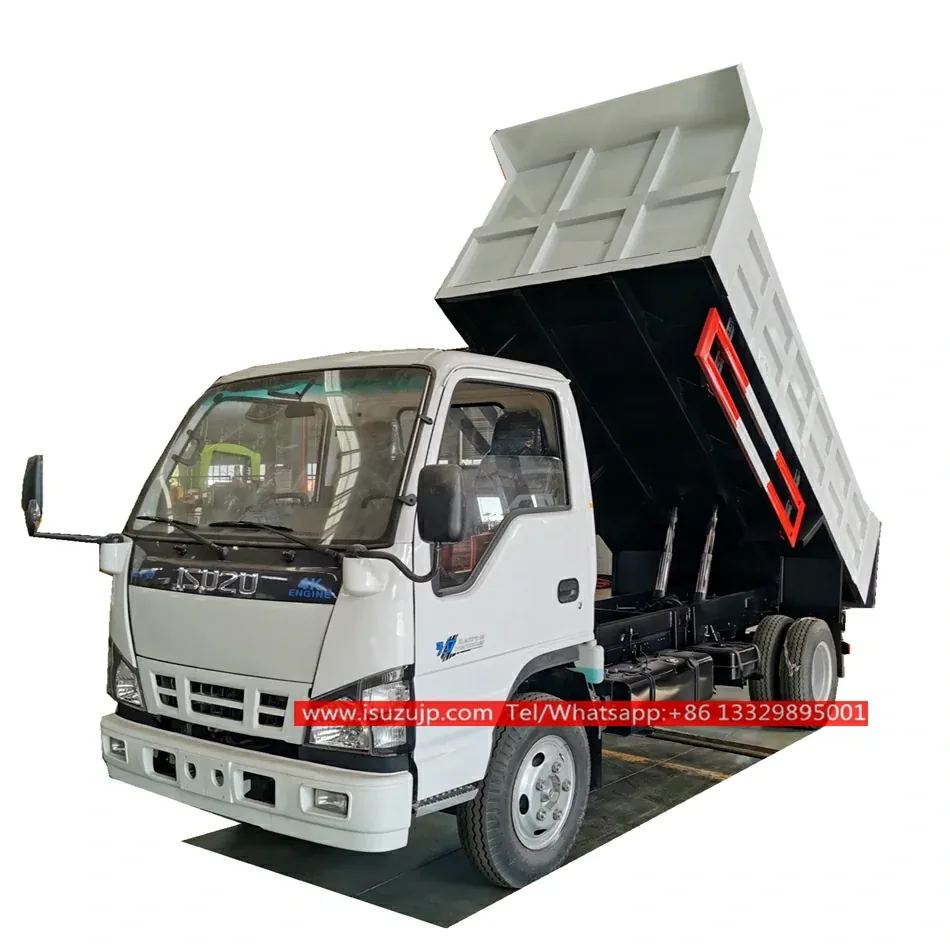

ISUZU 3 Cube Mini Dumper Truck Ghana
4×2 ISUZU 4K-ENGINE chassis 3 cube tipper trucks, Mid-mounted double-top hydraulic cylinder, optional front lifting cylinder. 120HP diesel engine
- Chassis
- ISUZU
- Engine
- ISUZU engine
- Power
- 120HP (88 KW)
- Overall Dimension
- 5600x2000x2500 mm
- GVW / Kerb Weight
- 5,600 kg / 2,800 kg
- Drive Type
- 4X2, left-hand drive
- Transmission
- 5-speed forward, 1 reverse
- Emission
- Euro V
Specification below is the factory table for this model, reproduced without edits. 25 rows.
Isuzu 3 Cube Mini Dumper Truck Description
- Isuzu mini dumper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Dump Truck Advantage
- ISUZU 4K-ENGINE light-duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
Isuzu 3 cube mini dumper truck Ghana
| General | Vehicle Brand | CHENG LI |
|---|---|---|
| Chassis Brand | ISUZU | |
| Overall Dimension | 5600x2000x2500 mm | |
| GVW / Kerb Weight | 5,600 kg / 2,800 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 120HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 650-15 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Volume | 3 m³ |
| Box Dimension | 3800X2100X800 mm | |
| Box Thickness | Sideboard: 3 mm; Floor: 4 mm | |
| Crane Capacity | 2 tons | |
| Crane Type | Articulated | |
| All other standard accessories: Tool kit, English manual… | ||
| Optional | Box thickness could be nominated. Box height could be nominated. Tip way: back or side. The back alarm and Camera can be equipped. | |
Questions
Questions About The ISUZU 3 Cube Mini Dumper Truck Ghana
What chassis is the ISUZU 3 Cube Mini Dumper Truck Ghana built on?
It is built on ISUZU. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 3 Cube Mini Dumper Truck Ghana
This build is listed as chassis ISUZU with engine ISUZU engine. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
