Main photo
ISUZU Dump Truck

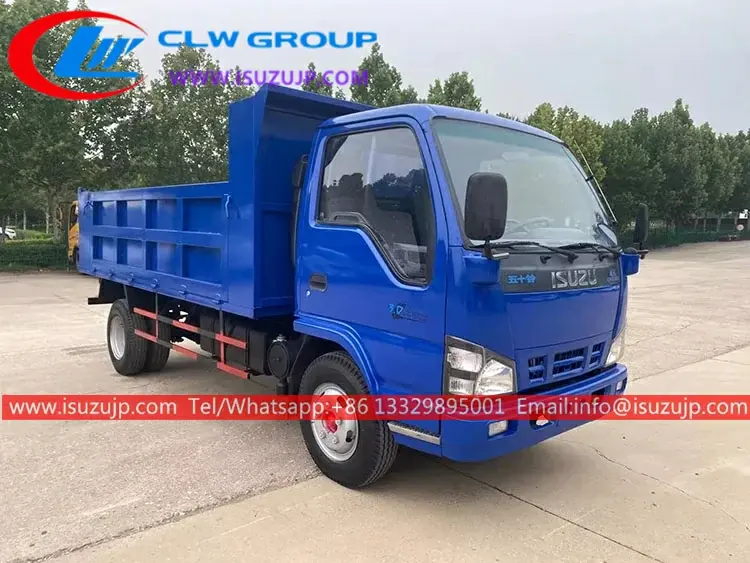

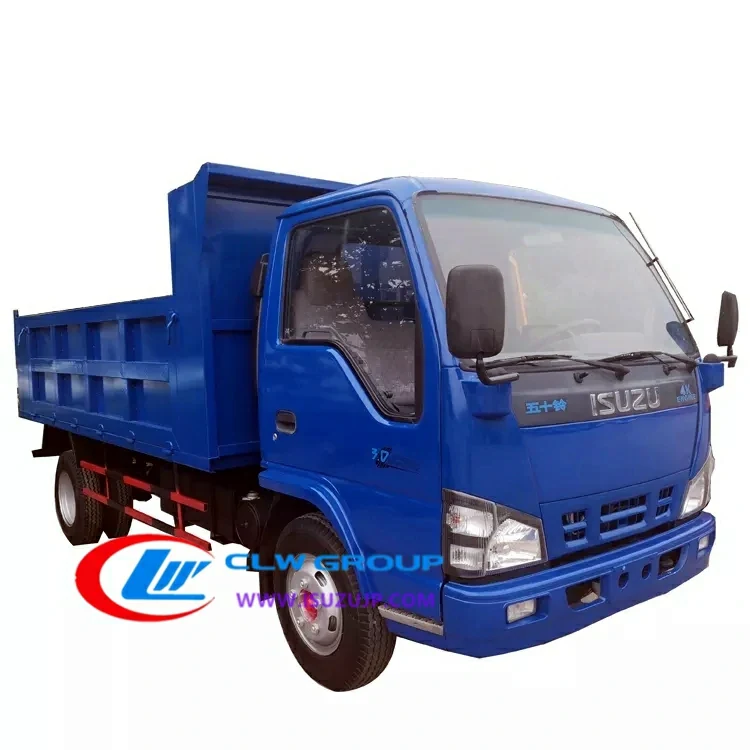

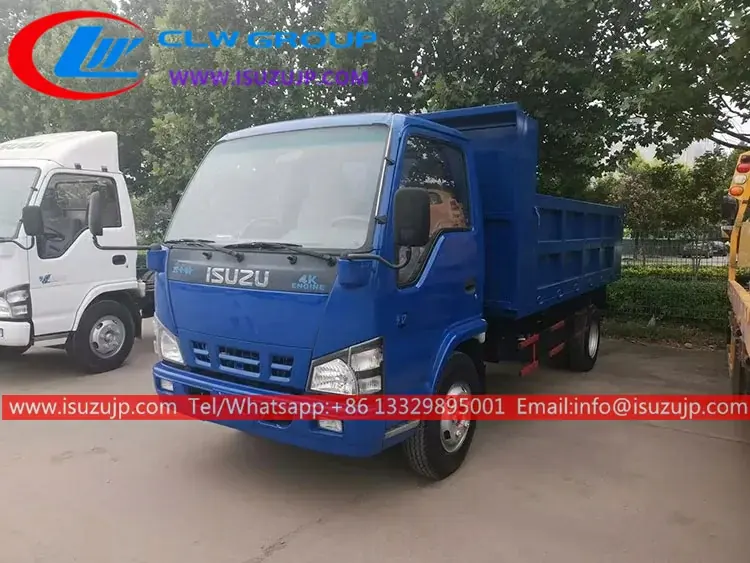

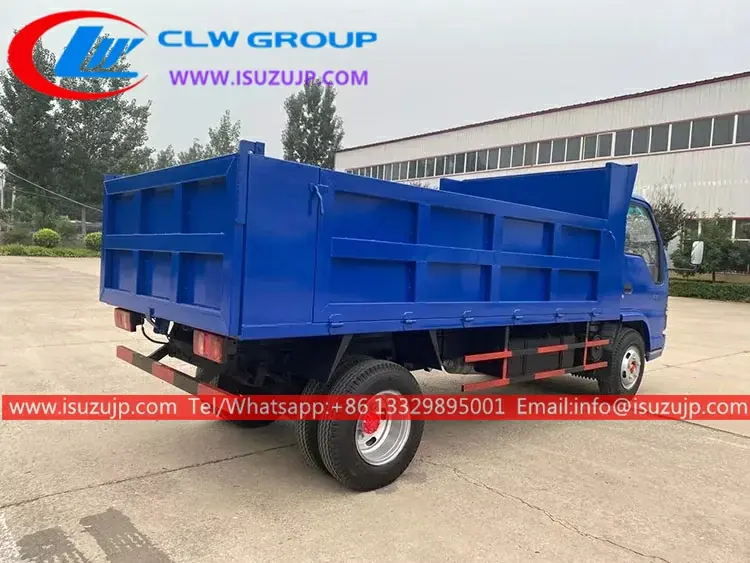

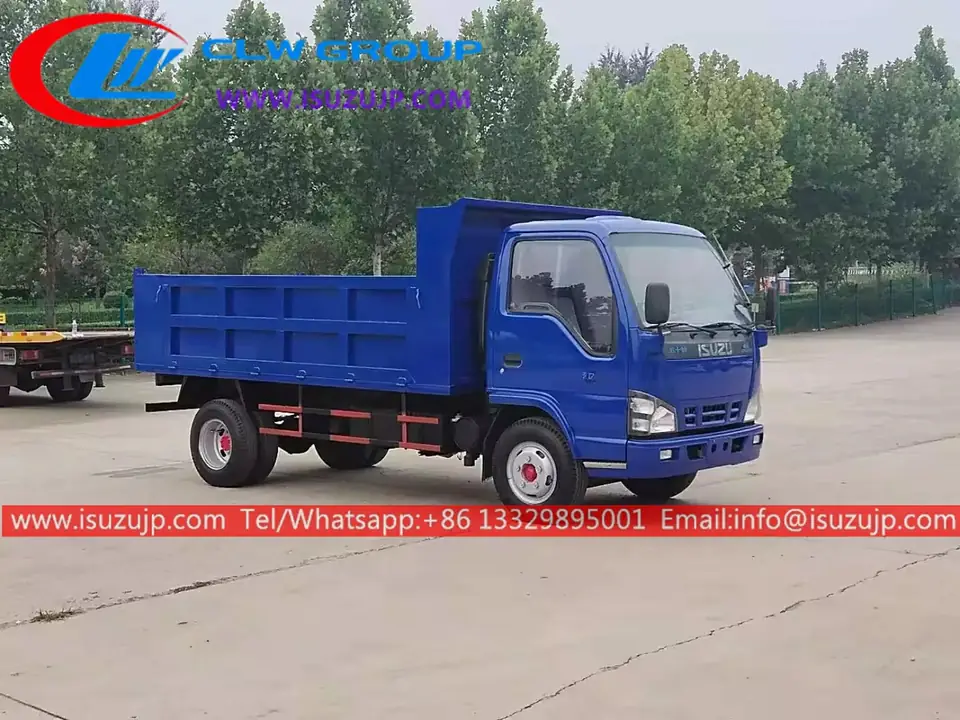

ISUZU 4k-engine 5cube Forward Tipper
ISUZU 4K-ENGINE 4×2 LHD chassis, MSB 5-shift manual gearbox, ISUZU 190HP diesel engine, high strength steel tipper body
- Emission
- Euro 4
- Engine Capacity
- < 4L
- Cargo Tank Dimension
- 3800*1910*650MM
- Cargo Tank Length
- ≤4.2m
- Cargo Tank Type
- Column plate
- Capacity (Load)
- 1 – 10t
- Fuel Tank Capacity
- ≤100L
Specification below is the factory table for this model, reproduced without edits. 46 rows.
ISUZU 4k-engine 5cube Forward Tipper Description
- Isuzu 4k-engine 5cube forward tipper also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage
- ISUZU 4K-ENGINE light-duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
ISUZU 4k-engine 5cube Forward Tipper Specification
| item | value |
|---|---|
| Condition | New |
| Steering | Left |
| Emission Standard | Euro 4 |
| Place of Origin | China |
| Segment | Light truck |
| Market Segment | Express Transportation |
| Fuel Type | Diesel |
| Engine Capacity | < 4L |
| Cylinders | 4 |
| Horsepower | < 150hp |
| Transmission Type | Manual |
| Forward Shift Number | 5 |
| Reverse Shift Number | 1 |
| Maximum Torque(Nm) | ≤500Nm |
| Size | 5950*2000*2400 |
| Cargo Tank Dimension | 3800*1910*650MM |
| Cargo Tank length | ≤4.2m |
| Cargo Tank Type | Column plate |
| Gross Vehicle Weight | 7400 |
| Capacity (Load) | 1 – 10t |
| Fuel Tank Capacity | ≤100L |
| Drive Wheel | 4X2 |
| Passengers | 3 |
| Driver’s Seat | Normal |
| Seat Rows | Single row |
| Rear Camera | None |
| Cruise Control | None |
| ABS(Antilock Braking System) | None |
| ESC(Electronic Stability Control System) | None |
| Touch Screen | None |
| Multimedia System | None |
| Window | Manual |
| Air Conditioner | Manual |
| Tire Number | 6 |
| After-sales Service Provided | Video technical support, Online support, Free spare parts |
| Product name | 4k-engine 5cube Isuzu forward tipper |
| Cab type | 1730mm(single cab) |
| Drive system | 4*2 |
| Vehicle dimensions(mm) | 5950*2000*2400 |
| Wheelbase | 3300mm |
| air-conditioning | with |
| Curb weight | 2410 |
| GVW | 7400 |
| Fuel type | diesel |
| Engine model | 4KH1-TCG40 |
Questions
Questions About The ISUZU 4k-engine 5cube Forward Tipper
What chassis is the ISUZU 4k-engine 5cube Forward Tipper built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Engine Capacity < 4L. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU 4k-engine 5cube Forward Tipper
This build is listed as emission Euro 4 with engine capacity < 4L. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
