- ISUZU GIGA 30tons Quarry Dump Truck
Main photo
ISUZU Dump Truck

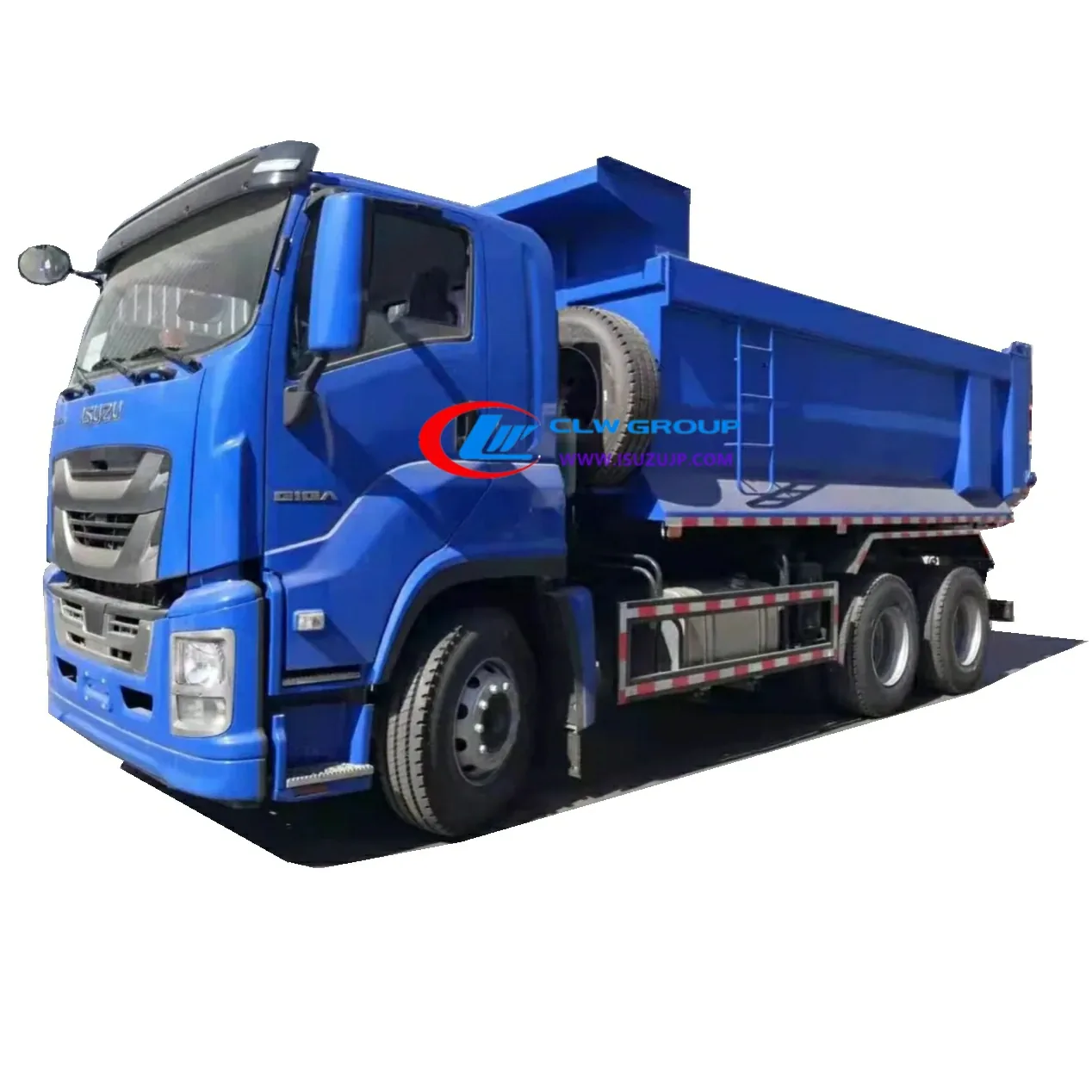

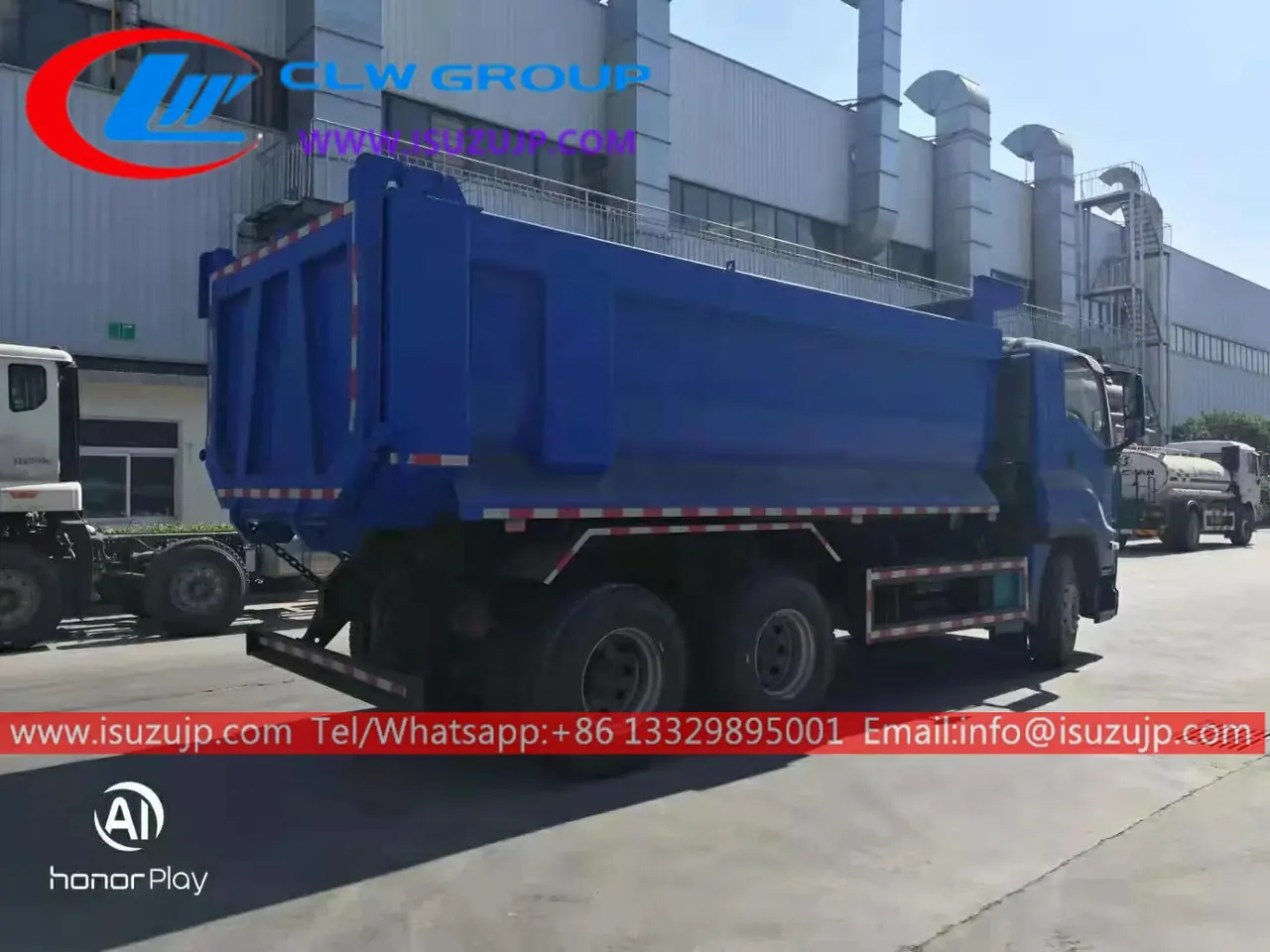

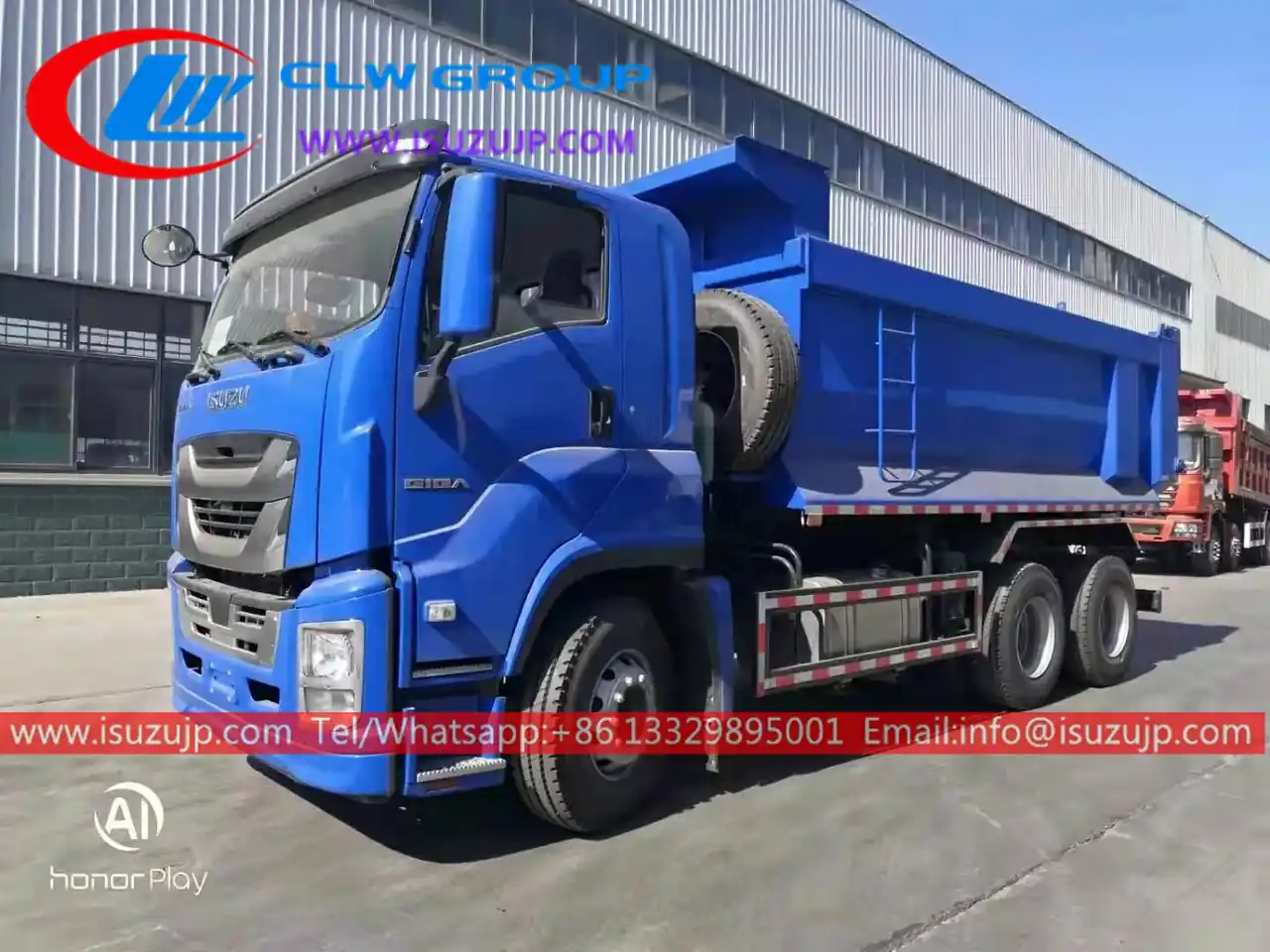

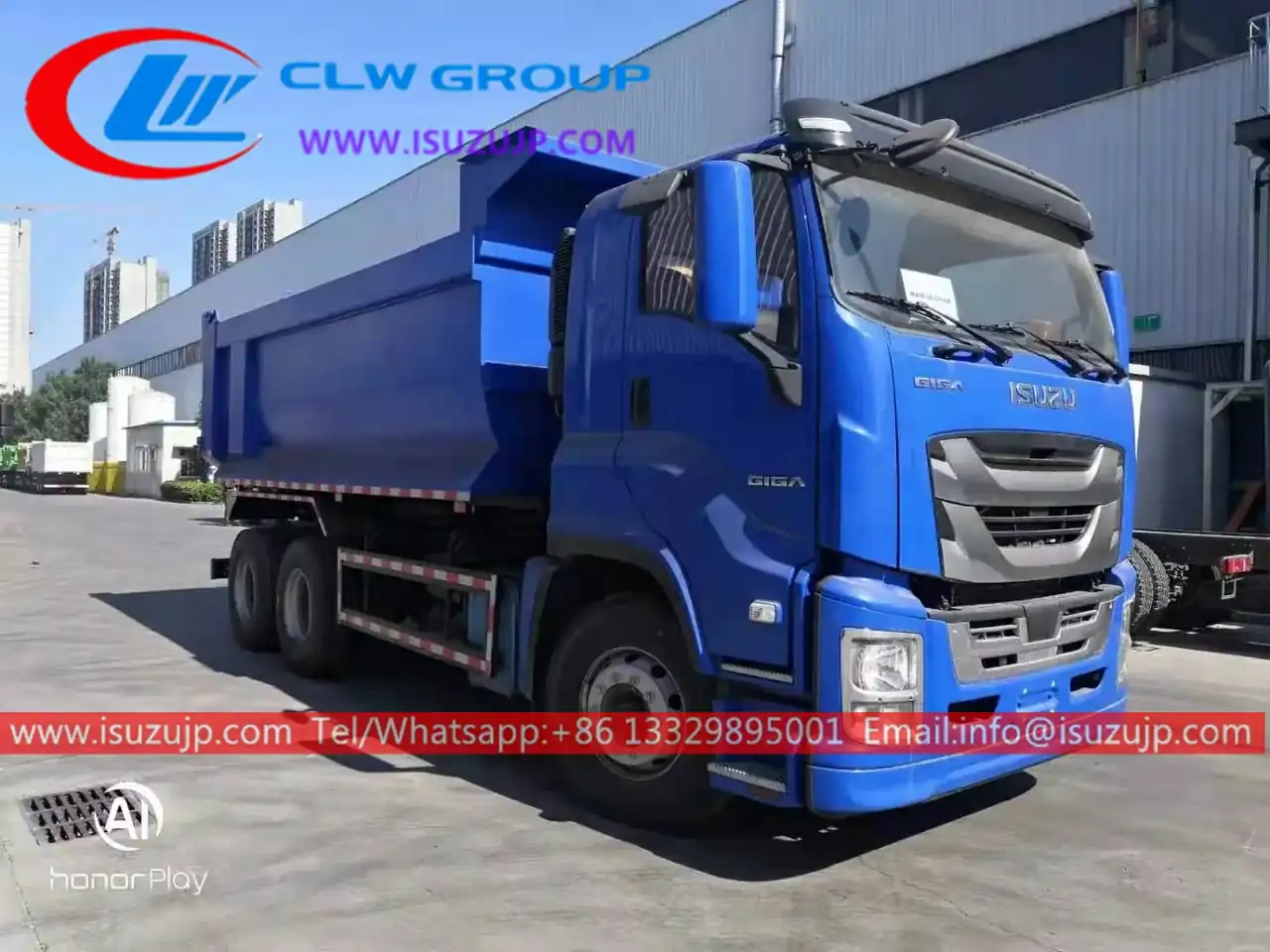

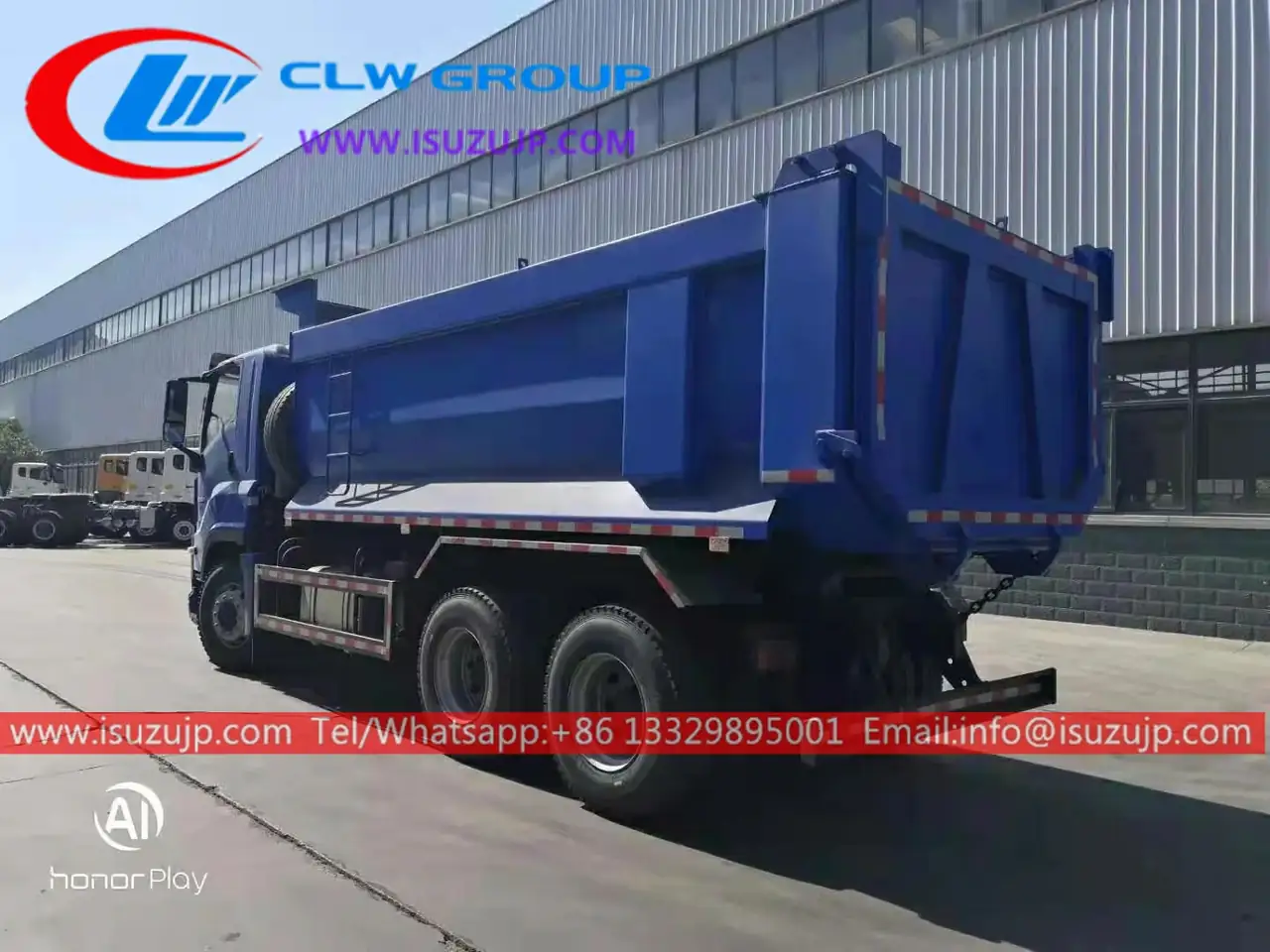

ISUZU GIGA 30tons Quarry Dump Truck
3 axle ISUZU GIGA heavy-duty chassis, Fast 12-shift manual gearbox, ISUZU 350HP diesel engine, high strength steel tipper body
- Rated Loading Capacity
- 16500 KG
- Front Axle Loading Capacity
- 7500 KG
- Rear-axle Loading Capacity
- 21000 KG
- Product Origin
- China
- Body Size
- 8500X2500X3500 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 27 rows.
Isuzu Giga 30tons Quarry Dump Truck Description
- Isuzu Giga 30tons quarry dump truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at side with hydraulic pistons to lift the side.
Advantage
- ISUZU GIGA chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Virious types of tipper body are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
ISUZU GIGA 30tons Quarry Dump Truck Specification
| Model | 30tons quarry Isuzu Giga dump truck | |
|---|---|---|
| Engine | Make: ISUZU | |
| Diesel 4-stroke direct injection diesel engine, electronic control common rail | ||
| Engine model:6UZ1-TCG50 | ||
| 6-cylinder in-line with water-cooled, turbocharging and intercooler | ||
| Maximum output: 380 hp (279 kW) | ||
| Maximum torque: 1800 Nm | ||
| Displacement: 9.839 L | ||
| Transmission | ZF8S2030TO, 8 forwards and 1 reverse,mannual | |
| Front Axle | F075,7.5 Ton Loading Capacity | |
| Rear Axle | RT210,21 Tons Loading Capacity, Speed Ratio 3.07-5.571 | |
| Chassis | Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8MM | |
| Front suspension: semi-elliptic leaf springs | ||
| Rear suspension:semi-elliptic leaf springs | ||
| Aluminum fuel tank: 600 L capacity with locking fuel cap, fitted to the off side of the chassis | ||
| Wheels & Tyres | Tire:315/80R22.5,12.00R22.5 for option | |
| Driver’s Cab | ISUZU GIGA Flat roof cab, 2 seats+1 bed,central lock,electric glass,A/C,ABS | |
| Dimensions mm | Wheelbase | 3985+1370 MM |
| Overall length | 7900 MM | |
| Overall width | 2500 MM | |
| Overall height | 3500 MM | |
| Dump box dimension | Center hydraulic lift,5400*2300*1500MM,18M3, bottom 8mm, side 6mm | |
| Weight kg | Deadweight | 12000 KG |
| Rated Loading Capacity | 16500 KG | |
| Gross vehicle weight(GVW) | 28500 KG | |
| Front axle loading capacity | 7500 KG | |
| Rear-axle loading capacity | 21000 KG | |
Questions
Questions About The ISUZU GIGA 30tons Quarry Dump Truck
What chassis is the ISUZU GIGA 30tons Quarry Dump Truck built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Rated Loading Capacity 16500 KG. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU GIGA 30tons Quarry Dump Truck
This build is listed as rated loading capacity 16500 KG with front axle loading capacity 7500 KG. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
