ISUZU Dump Truck

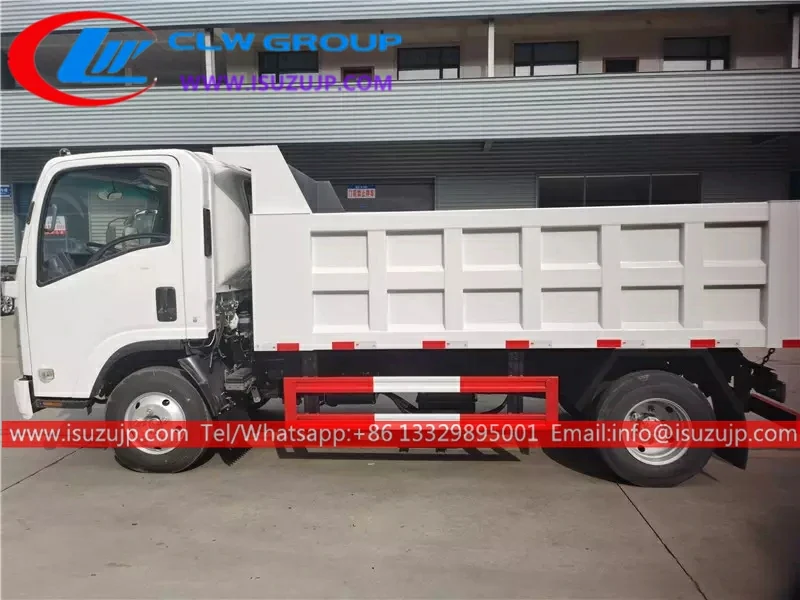

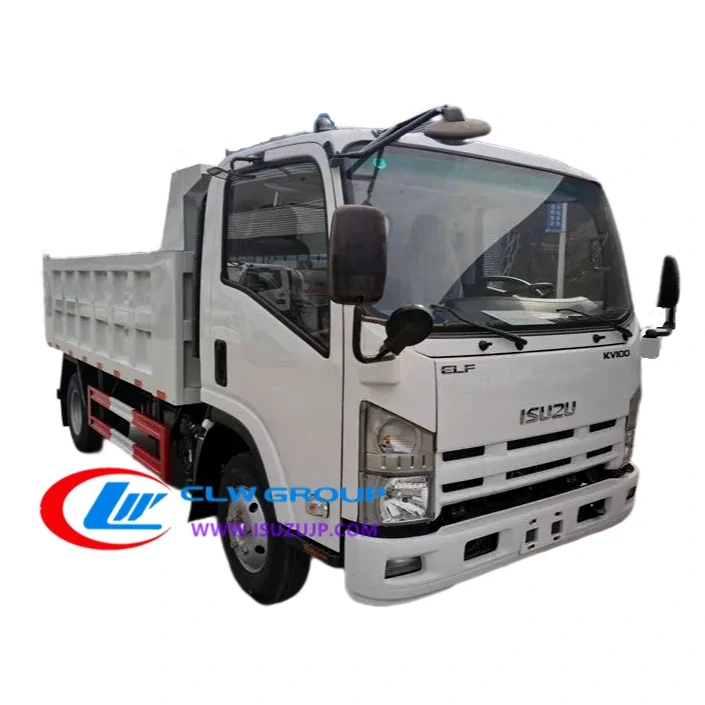

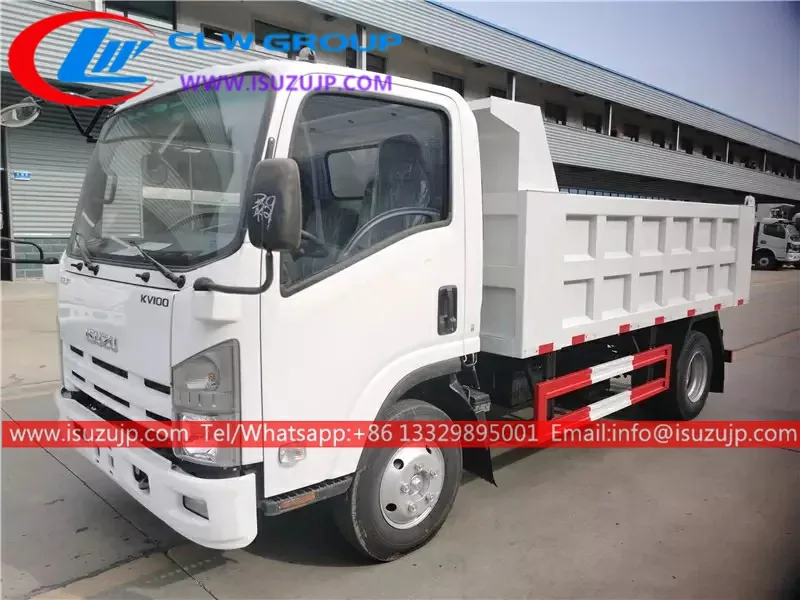

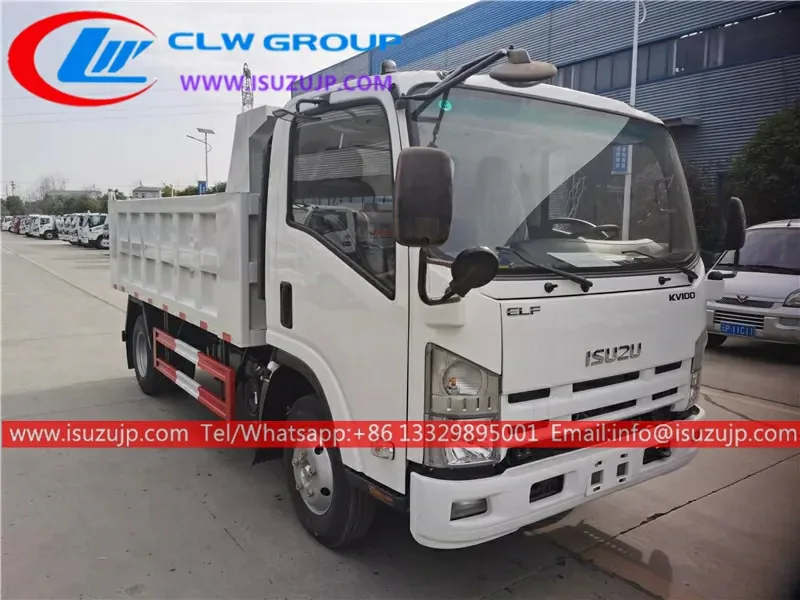

ISUZU KV100 4 Ton Tipper Truck for Sale
ISUZU KV100 4×2 LHD chassis, MSB 5-shift manual gearbox, ISUZU 120HP diesel engine, high strength steel tipper body
- Payload
- 2000
- Product Origin
- China
- Body Size
- 5900X2200X2400 mm
- Shipping Port
- China
- Delivery Time
- Based on the mode of shipping chosen
Specification below is the factory table for this model, reproduced without edits. 21 rows.
Isuzu KV100 4 Ton Tipper Truck Description
- Isuzu 4 ton tipper truck also called dump truck, dump tipper, side-turn tipper, dump truck tipping, dumper, tip truck, tipper lorry, construction sand rock dump truck.
- is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
- ISUZU dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front.
- Or hinged at the side with hydraulic pistons to lift the side.
Advantage
- ISUZU KV100 light-duty chassis, perfect performance
- 4HK1 engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Pay loading from 2ton to 100 tons.
- Easy operation and easy maintenance.
- Various types of tipper bodies are available.
- High-strength box body
- Excellent Chinese brand hydraulic piston
- The strong, durable, perfect performance
Specification
ISUZU KV100 4 Ton Tipper Truck for Sale Specification
| ITEM | UNIT | PARAMETER |
|---|---|---|
| Overall dimensions | mm | 5800×2000×2260 |
| Box dimension | mm | 3600x2000x600 |
| GVW | kg | 4500 |
| Curb weight | 2500 | |
| Payload | 2000 | |
| Wheelbase | mm | 3360 |
| F/R track base | 1385/1395 | |
| F/R Suspension | 1200/1080 | |
| Approach/departure angle | ° | 20/12 |
| Max speed | km/h | 90 |
| Axle Load | kg | 2500/4800 |
| Drive model | 4×2 | Fuel type Diesel |
| Tire specification | 7.00R16 | Number of axles 2 |
| Engine model | Manufacturer | Qingling Isuzu (Chongqing) Engine Co. LTD |
| Engine | 4KH1CN5MD | |
| Emission/kw | 2999ml/85Kw, 115Hp | |
| type | MSB 5F/1R | |
| Rate speed rpm | 2900 | |
| Max Torque N.M/ rpm | 277/1500 | |
| Standard Configuration | Tank material Q235 Air condition available Single row Left-hand driving Middle lifting system Bucket side 3mm and bottom 4mm |
Questions
Questions About The ISUZU KV100 4 Ton Tipper Truck for Sale
What chassis is the ISUZU KV100 4 Ton Tipper Truck for Sale built on?
It is built on the ISUZU chassis listed in the table. The full chassis detail including drive type, wheelbase, axle count and tyre specification is in the specification table on this page.
What is the capacity of this isuzu dump truck?
The factory table lists Payload 2000. Other body sizes in this category are listed on the category page, and the factory can build to a customer drawing if none of them fit.
Can it be built to our own specification?
Yes, we can produce according to the customer's technical drawings and specifications.
How long before it is ready to ship?
Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
How do we pay and what do we see before the balance?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos or videos of the trucks before you pay the balance.
Is the truck tested before delivery?
Yes, we have 100% test before delivery. The whole vehicle is guaranteed for one year, and the core parts of some products are guaranteed for two years.
What support is available after it arrives?
Our overseas engineers will return visits on a regular basis, and provide professional technical training and truck manuals before delivery.
Related Models
Other ISUZU Dump Truck Builds
Same category, different capacity or chassis. Comparing the tables side by side is usually faster than asking.
Quote The ISUZU KV100 4 Ton Tipper Truck for Sale
This build is listed as payload 2000 with product origin China. Tell us the quantity and the destination port and you get a price, a photo of a comparable unit already built and a sailing estimate.
